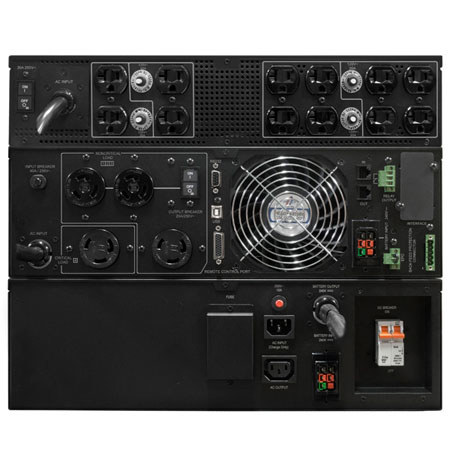

CyberPower Smart App Online OL6000RT3UTF 6000VA / 5400W Pure Sine Wave UPS with Step-Down Transformer

SKU: CYBOL60003UT MFR: OL6000RT3UTF
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$5,470.99
Free Shipping
Qty:
Add to Wishlist

About the CyberPower OL6000RT3UTF

The CyberPower Smart App Online OL6000RT3UTF rack/tower uninterruptible power supply (UPS) with step-down transformer, LCD control panel and pure sine wave output safeguards mission-critical servers, data center and telecom equipment, VoIP and internetworking hardware that require seamless power correction. Its Double-Conversion topology is generator compatible and delivers consistent and clean standard 120V or 200-240V AC power with zero transfer time to protect connected equipment and prevent costly business interruptions. Auto-bypass insures connected equipment continues to operate seamlessly when an overload or internal fault is detected.

Configurable GreenPower UPS ECO Mode improves UPS efficiency to 95% and reduces electrical and cooling costs. Smart Battery Management (SBM) uses a 3 cycle charging mode to improve battery life while reducing heat being generated.

The LCD control panel provides 38 different settings to check status and customize the operating parameters for the OL6000RT3UTF, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (16) different parameters, (19) settings for setup, control and testing of the UPS and (3) selections for event logging. With a DB26 cable (sold separately) the LCD control panel can be removed from the UPS and relocated up to 10ft. away from the UPS for ease of viewing when installed in hard to reach locations.

The UPS incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD302) supports remote management and control of the OL6000RT3UTF through a standard web browser.

The OL6000RT3UTF unit has a capacity of 6,000VA / 5,400Watts (0.9 power factor) that can be configured for an output of 200V, 208V, 220V, 230V, 240V +/- 2% and 120V. It features fifteen (15) outlets with two (2) NEMA L6-20R, one (1) NEMA L6-30R and twelve (12) NEMA 5-20R receptacles and maintenance-free, hot swappable, user-replaceable batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. Network grade surge suppression and EMI/RFI filters increase the immunity of the load to noise disturbances. The runtimes are expandable by adding a hot swappable, user replaceable BP240V30ART3U Extended Battery Module (EBM).

CyberPower OL6000RT3UTF Features

  • Double-Conversion & Pure Sine Wave Output - The OL6000RT3UTF with Double-Conversion Topology provides continuous pure sine wave output with zero transfer time by converting utility AC power to DC power and inverting it back to pure sine wave AC output
  • Step-Down Transformer - The step-down transformer provides IT managers the ability to support both 120V and 200-240V output requirements with a single UPS solution
  • Removable LCD Control Panel - The LCD control panel on the OL6000RT3UTF can be removed and relocated for easy viewing by using a DB26 cable (sold separately) that can be attached to the front or back of the UPS
  • GreenPower UPS Eco Mode - The OL6000RT3UTF can be placed into an ECO mode that places the UPS into a bypass state with a user selectable voltage range for switching back to traditional Double-Conversion online mode. This mode improves the UPS efficiency from 90% to 95%
  • Extended Battery Module (EBM) - The runtime of the OL6000RT3UTF can be extended by integrating additional EBM (BP240V30ART3U). The OL Series UPS can have up to ten modules added
  • Fast Charge Technology - Each EBM (BP240V30ART3U) has its own built in charger that enables the UPS to recover its charge rapidly when utility power is restored. As a result, your charging time remains the same whether you add one EBM or ten modules
  • Smart Battery Management (SBM) - SBM uses a 3-cycle charging mode that improves battery life and reduces heat generated. The first mode charges the battery to full, the second mode maintains the charge at max and the final mode turns the charger off and allows the battery to "rest"
  • PowerPanel Business Edition UPS Management Software - Features include application/OS shutdown, event logging (power, surge and voltage variations), hibernation mode, internal reports and analysis, as well as remote management capability for comprehensive power control
  • Windows Compatibility - The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
  • Linux & Virtual Machine OS Compatibility - PowerPanel power management software has been fully tested and is compatible with most mainstream brands of Linux and many of the popular versions of Virtual Machine Operating Systems such as VMware ESX / ESXi and Citrix
  • Critical & Non-Critical Loads - The UPS has two banks of outlets that can be configured so that the non-critical loads shut off after a set time frame to provide additional runtime for the critical load outlet
  • Emergency Power Off (EPO) - The EPO port can be connected to a master power switch allowing the power to be cut to the UPS in the event of an emergency
  • Converter Mode - With OL6000RT3UTF, IT managers have the flexibility to set the output frequency, regardless of the input frequency, to match their connected equipment by selecting a 50Hz or 60Hz output on the LCD control panel
  • Multiple Language Options - The OL6000RT3UTF LCD control panel can be configured in English, Spanish and French for ease of use
  • USB & Serial Connectivity - HID compliant USB port and Serial port enables full integration with built-in power management and auto shutdown features of Windows, Linux and VMware
  • EMI/RFI Filters - Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment
  • Audible Alarms - Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low
  • Resettable Circuit Breakers - Convenient unit reset switch in case of an overload

CyberPower OL6000RT3UTF Specifications

UPS Topology Double-Conversion
Energy Saving Yes - ECO Mode Efficiency >95%
Input Voltage 200-240Vac
Input Voltage Range 140Vac - 159Vac for 0 - 50% Load, 180Vac - 280Vac for 0 - 100% Load, 160Vac - 179Vac for 0 - 75% Load, 120Vac - 139Vac for 0 - 25% Load
Input Frequency Range 40Hz - 70Hz (auto-sensing)
Input Power Factor 0.99
Input Cold Start Yes
Input Backfeed Protection Yes
Input Plug Type NEMA L6-30P
Input Cord Length 6'
Output VA 6,000
Output Watts 5,400
Output On Battery Waveform Sine Wave
Output On Battery Voltage 120Vac; 200, 208, 220, 230, 240Vac (Configurable) ±2%
Output On Battery Frequency 50/60Hz (Auto-Sensing or Configurable) ±0.25Hz
Output Overload Protection Battery Mode: 105-130% Load for 10 sec, Battery Mode: 131-150% Load for 2 sec, Line Mode: 126-150% Load for 10 sec, Line Mode: 105-125% Load for 1 min
Output Outlets - Total 15
Output Outlet Type NEMA L6-30R (1), NEMA L6-20R (2), NEMA 5-20R (12)
Output Rated Power Factor 0.9
Output Crest Factor 3:1
Output Harmonic Distortion THD < 3% at Linear Load, < 5% at Non-linear Load
Output ECO Mode Voltage Regulation ±10%, ±15% (Configurable)
Output Bypass Internal Bypass (Automatic and Manual)
Output Transfer Time 0ms
Runtime at Half Load (min) 15.8
Runtime at Full Load (min) 5.3
Battery Type Sealed lead-acid
Battery Size 12V/7.2AH
User Replaceable Yes
Hot-Swappable Yes
Typical Recharge Time 4 Hours
Replacement Battery RB1272X20
Battery Quantity 20
Extended Battery Module BP240V30ART3U
Smart Battery Management (SBM) Mode Yes
Surge Suppression Network Grade Surge Protection
Phone / Network Protection RJ11/RJ45 1-In / 1-Out
EMI/RFI Filtration Yes
LCD Control Panel 38 different settings or status options via the UPS Status menu, UPS Setup menu and run Testing menus. Refer to the "Function Setup Guide" on the "Resources" tab for complete options.
Removable LCD Control Panel Option Yes - Requires a separate DB26 Cable
HID Compliant USB Port Yes
Serial Port Yes
EPO Port Yes
Dry Contacts Yes
Management Cable USB Cable, Serial Cable, Phone line
LED Indicators Power On (Blue), Line Mode (Green), Battery Mode (Yellow), Bypass Mode (Yellow), Fault (Red), Replace Battery (Red)
Audible Alarms Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery
Software PowerPanel Business Edition
SNMP / HTTP Remote Monitoring Yes - Optional RMCARD302
Form Factor Rack/Tower
Enclosure Construction Steel
Mounting Hardware Included
Operating Temperature 32 deg.F to 104 deg.F / 0 deg.C to 40 deg.C
Operating Humidity 0% - 90% non-condensing
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 deg.F to 113deg.F / -15deg.C to 45 deg.C
Storage Relative Humidity 0% - 95% non condensing
Storage Elevation 0-50000 feet (0-15000 meters)
Online Thermal Dissipation 2,048 BTU/hr
Audible noise 55 dBA
Power Module Rack Height Power Module: 3U
Battery Module: 3U
Step-down Transformer: 2U
Dimensions (WxHxD) 17x5.25x26" / 431.8x133.35x660.4 mm
Weight 55 lbs / 24.95 kg
