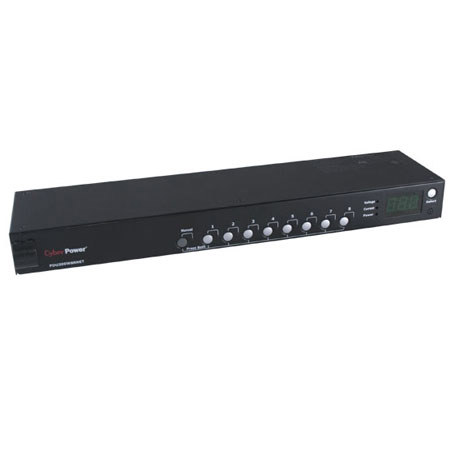

CyberPower 20A 8-Outlets 1U Rack Mounted Switched Power Distribution Unit

In Stock Online - Usually ships in 1-2 Days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$330.99 $14 per week
Add to Wishlist In Stock

About this item

The CyberPowerPC 8-outlet rack mount networked power distribution unit (PDU20SW8RNET) provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20P input, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is UL1419 and FCC Class B certified.

The unit includes an RJ45 Ethernet port for local network connection. The electrical current used by connected equipment is displayed in amps on the front LCD for real-time load monitoring. The CyberPowerPC Management Console offers remote management of the unit: monitoring PDU vitals as well as controlling outlets and networked clients.

What's Included With This Item

  • CyberPowerPC 20A 8-Outlets RM 1U Switched Power Unit
  • Cord Retention Tray
  • Mounting Brackets (2pcs)
  • Cord Organizers for Cord Retention Tray (8pcs)
  • Bracket Mounting Screws M4 x 6mm (5pcs)
  • Cord Retention Tray Mounting Screws M3 x 6mm (5pcs)
  • Washers for Rack Mounting (5pcs)
  • Screws for Rack Mounting (5pcs)
  • Documentation
  • User Manual
  • Registration Card
  • CyberPowerPC Lifetime Warranty

Technical Specs

Input Voltage 120V
Input Current 20A max
Input Frequency 50Hz/60Hz
Input Plug Type NEMA 5-20P
Input Plug Style Straight
Input Cord Length 10' / 3.04 m
Input Switch Front-mount, Protected/Covered
Nominal Output Voltage 120V
Overload Protection 20A
Outlets: Total 8
Outlets: Front 0
Outlets: Rear 8
Outlet Type NEMA 5-20R
Meter Readout Voltage, Amperage, IP Address
LED Indicators Power On (Green)
SNMP / HTTP Remote Monitoring Yes
Rack Size 1U
Style Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported 1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers Yes
Adjustable Mounting Brackets 1 set
External Site Ground Pin Yes
Operating Temperature 32 Deg.F to 95 Deg.F / 0 Deg.C to 35 Deg.C
Operating Humidity 0% - 95% non-condensing
Maximum Operating Elevation 10,000 ft / 3,000 m
Storage Temperature 5 Deg.F to 113 Deg.F / -15 Deg.C to 45 Deg.C
Maximum Storage Elevation 50,000 ft / 15,000 m
Certifications UL1419 certified by ETL (USA), FCC Class B
ROHS ROHS Compliant
Dimensions (W x H x D) 17.5" x 1.75" x 4" / 44.4 x 4.44 x 10.1 cm
Weight 7 lbs / 3.17 kg
