CyberPower

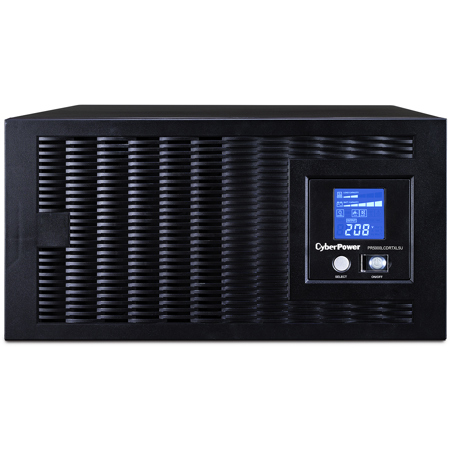

CyberPower Smart App Sinewave PR5000LCDRTXL5U 5000VA / 4000W UPS, 5 Outlets

SKU: CYBPR50005U MFR: PR5000LCDRTXL5U
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,892.99
Qty:

Add to Wishlist In Stock

About the CyberPower PR5000LCDRTXL5U

The CyberPower Smart App Sinewave PR5000LCDRTXL5U uninterruptible power supply (UPS) safeguards mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full automatic voltage regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR qualified with patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

The PR5000LCDRTXL5U unit has a capacity of 5000VA/4000Watts, five (5) battery and surge-protected receptacles, including three (3) NEMA L6-30R twist lock receptacles and two (2) fail-safe NEMA L6-20R twist lock receptacles for critical loads. This UPS has sixteen (16) maintenance-free, user-replaceable 12V/9Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB, two (2) DB9 serial and one (1) emergency power off (EPO) port. Protection for phone/network (RJ11/RJ45) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition software for unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR5000LCDRTXL2U through a standard web browser.

CyberPower PR5000LCDRTXL5U Features

  • Pure Sine Wave - When operating on battery, the Smart App Sinewave UPS outputs power with a pure sine wave that is identical to or cleaner than the power from the utility company grid, free of harmonic distortion and electrical noise, resulting in optimal line clarity
  • Extended Runtime (XL) Battery Expansion - The XL battery expansion port on the PR5000LCDRTXL5U allows for the addition of up to ten (10) BPL48V75ART2U external battery packs to increase runtime during a power outage to ensure continuous operation of critical systems
  • RM/T Configuration - The Smart App Sinewave UPS can be installed in either a Tower or Rack Mount (5U) configuration
  • Full AVR - Boost/Buck technology increases low voltages and decreases high voltages, without switching to battery-mode. This conserves battery life and delivers power with a more stable and consistent voltage to connected equipment
  • Reduce Energy Cost & Energy Loss - This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
  • Critical Load Outlets - During a power outage or overload, critical load outlets ensure continuous power to critical equipment
  • EMI/RFI Filters - Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment
  • Dual PC Support - The Smart App Sinewave UPS has two (2) serial communication ports and 1 USB port to connect two PCs or servers, giving the user full control and the ability to prioritize their operation
  • Multifunction Rotatable LCD Display - UPS battery status and power conditions are easily viewed on this Crystal Blue readout when the UPS is rack mounted or standing as a tower
  • Audible Alarms - Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low
  • Resettable Circuit Breaker - Convenient unit reset switch in case of an overload
  • Metal Housing - Rugged, industrial-grade metal construction allows for installation of the unit in demanding environments
  • PowerPanel Business Edition - This software suite manages the power for all servers and computers supported by the UPS on a network

CyberPower PR5000LCDRTXL5U Specifications

UPS Topology Line-Interactive
Energy Saving Yes - GreenPower UPS Bypass Technology
ENERGY STAR Qualified Yes
Input Voltage 208Vac - 240Vac
Input Adjustable Voltage Range 131Vac - 268Vac
Voltage Range 148Vac - 254Vac
Frequency 50Hz/60 Hz +/- 3Hz
Cold Start Yes
Plug Type NEMA L6-30P
Plug Style Straight
Cord Length 10'
Output VA 5,000
Output Watts 4,000
Automatic Voltage Regulation Yes
On Battery Waveform Sine Wave
On Battery Voltage 208Vac +/- 5%
On Battery Frequency 50/60Hz +/- 0.1%
Overload Protection On Utility: Circuit Breaker; On Battery: Internal Current Limiting
Outlets - Total 5
Outlet Type NEMA L6-30R (3), NEMA L6-20R (2)
Outlets - Battery & Surge Protected 3
Outlets - Critical Load 2
Transfer Time 4ms
Runtime at Half Load (min) 31
Runtime at Full Load (min) 11
Battery Type Sealed lead-acid
Battery Size 12V/9AH
User Replaceable Yes
Hot-Swappable Yes
Typical Recharge Time 8 Hours
Replacement Battery BB Battery - HR9-12
Battery Quantity 16
External Battery Pack Option BPL48V75ART2U
Surge Suppression 2,430 Joules
Phone / Ethernet RJ11 / RJ45 1-In, 1-Out (Combo)
Coax Protection RG6 None
EMI/RFI Filtration Yes
HID Compliant USB Port Yes
Serial Port Yes (2x)
Emergency Power Off (EPO) Port Yes
LED Indicators Power on
Audible Alarms On battery, low battery, overload
On-Device Management Features Self Test, Auto-Charge, Auto-Restart
Software PowerPanel Business Edition
SNMP / HTTP Remote Monitoring Yes, with optional RMCARD202
AS400 Management None
Operating Temperature 32 deg.F to 104 deg.F / 0 deg.C to 40 deg.C
Operating Humidity 0% - 95% non-condensing
Storage Temperature 5 deg.F to 113deg.F / -15deg.C to 45 deg.C
Maximum Operating Elevation 10,000 ft / 3,000 m
Maximum Storage Elevation 50,000 ft / 15,000 m
Rack Size 5U
Form Factor Rack
Dimensions (WxHxD) 17x8.75x24.25" / 43.18x22.22x61.59 cm
Weight 222 lbs / 100.69 kg
