What is the purpose of the LCD on the CyberPower 12-Outlet 1U Rackmount Metered Power Distribution Unit?

The LCD on the CyberPower Power Distribution Unit displays the current draw in amps for all connected equipment, providing real-time load monitoring. This helps in better management and prevention of overloads.

What is the significance of the NEMA 5-20R receptacles in this power distribution unit?

The NEMA 5-20R receptacles are a type of electrical outlet commonly used in North America. This ensures compatibility with a wide range of devices and appliances that use this type of outlet.

Can this power distribution unit be mounted both horizontally and vertically?

Yes, the CyberPower 12-Outlet 1U Rackmount Metered Power Distribution Unit has a versatile design that allows for both horizontal and vertical mounting, accommodating various rack configurations.

What does the ETL/RoHS certification on this product mean?

ETL certification indicates that the product complies with North American safety standards, while RoHS certification ensures that the product is free from certain hazardous materials. This means the product meets high safety and environmental standards.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

CyberPower 20MT2F10R Specifications

  • Input Voltage

    120V

  • Input Current

    20A max

  • Input Frequency

    50Hz/60Hz

  • Plug Type

    NEMA L5-20P

  • Plug Style

    Straight

  • Input Cord Length

    15' / 4.57 m

  • Nominal Output Voltage

    120V

  • Outlet Type

    NEMA 5-20R

  • Outlets - Front

    2

  • Outlets - Rear

    10

  • Outlets - Total

    12

  • Output Meter Readout

    Amperage

  • Overload Protection

    20A

  • Rack Size

    1U

  • Form Factors Supported

    1U rackmount, 0U vertical rackmount, undercounter installation supported

  • Style

    Rackmount, Vertical Rackmount, Under-Counter

  • Cord Retention Tray/Cord Organizers

    Yes

  • External Site Ground Pin

    Yes

  • Adjustable Mounting Brackets

    2 sets(L-short/L-long)

  • Operating Temperature

    32 deg.F to 95 deg.F / 0 deg.C to 35 deg.C

  • Operating Humidity

    0% - 95% non-condensing

  • Storage Temperature

    5 deg.F to 113deg.F / -15deg.C to 45 deg.C

  • Maximum Operating Elevation

    10,000 ft / 3,000 m

  • Maximum Storage Elevation

    50,000 ft / 15,000 m

  • Safety

    UL1363 certified by ETL (USA), CSA C22.2 (Canada)

  • Environmental

    RoHS Compliant

  • Dimensions (W x H x D)

    17.5 x 1.75 x 2.25" / 44.45 x 4.44 x 5.71 cm

  • Weight

    5.0 lbs / 2.26 kg

  • UPC Code

    649532901203

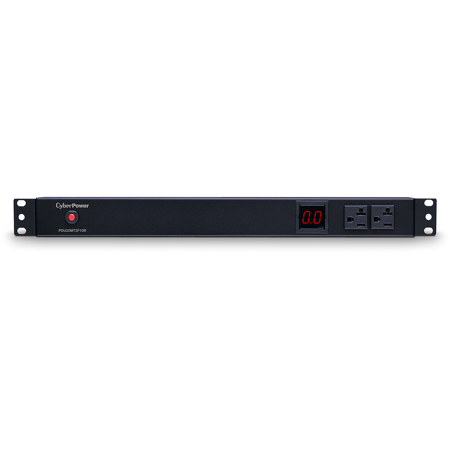

About CyberPower 20MT2F10R

A robust and efficient solution for your power distribution needs, the CyberPower 12-Outlet (2 Front and 10 Rear) 1U Rackmount Metered Power Distribution Unit (PDU20MT2F10R) delivers a reliable 120V 20A output. This high-quality unit is expertly designed to distribute power across 12 NEMA 5-20R receptacles, all from a single NEMA L5-20P twist lock plug, ensuring unfiltered electrical pass-through for optimal performance.

Featuring a front LCD, this unit provides real-time load monitoring by displaying the current draw in amps for all connected equipment. This feature allows for better management and prevention of overloads, enhancing the safety and efficiency of your power distribution.

Built for demanding environments such as data centers and server rooms, this sturdy power distribution unit boasts an industrial-grade metal housing for enhanced durability. It comes with a generous 15-foot AC power cord, providing flexibility in placement and installation.

The unit's versatile design allows for both horizontal and vertical mounting, accommodating various rack configurations. A cord retention tray is included to manage and secure the power cords, reducing clutter and ensuring a neat setup.

Proudly ETL and RoHS certified, this power distribution unit adheres to high standards of safety and environmental friendliness. Choose the CyberPower 12-Outlet 1U Rackmount Metered Power Distribution Unit for a reliable, efficient, and high-quality power distribution solution.

CyberPower 20MT2F10R Features

  • Output: 100-125V
  • Input: 100-125V @ 50/60 Hz
  • 12 x NEMA 5-20R Outlets
  • 20A Overload Protection (Derated to 16A)
  • NEMA L5-20P Power Cord (15')
  • Rackmount/Vertical Orientations
  • Under-Counter Installation Supported

Key Features

  • 12-outlet rackmount PDU with real-time LCD load monitoring
  • 120V 20A metered power distribution for data centers & server rooms
  • Durable industrial-grade metal housing with 15-foot AC power cord
  • NEMA 5-20R receptacles & single NEMA L5-20P twist lock plug
  • Horizontal or vertical mounting with included cord retention tray
  • ETL/RoHS certified for environmental and safety compliance

What's in the box:

  • CyberPower 20A 12-Outlet (2 Front and 10 Rear) 1U Rackmount Metered PDU
  • Cord Retention Tray
  • Screw Kit
  • Cord Clip Kit
  • Horizontal Mounting Brackets
  • Vertical Mounting Brackets
  • CyberPower Lifetime Warranty
