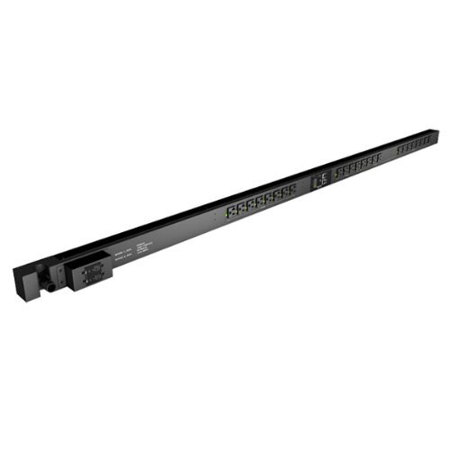

CyberPower 30A 24-Outlet (24 Front) 0U Rackmount Switched Power Distribution Unit, 120V Output, NEMA 5-20R
SKU: CYBU30VT24FN
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About CyberPower 30SWVT24FNET
The CyberPower (PDU30SWVT24FNET) 24-outlet 0U rack mount switched power distribution unit (PDU) provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug, with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network using CyberPower Management Console /web browser and the RJ45 Ethernet port for network connection or locally using the LCD controls. Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing and locking out unauthorized loads.
The front LCD panel provides local control and monitoring of the PDU. Using the LCD controls, outlets can be used to turn on or turn off a single receptacle or multiple receptacles. Load management is accomplished by using the display to measure the electrical current used by connected equipment in amps. The LCD can also display input voltages to assist in diagnosing potential issues with input power. Power being consumed in watts can also be displayed, as well as, the IP address of the network interface for ease of installation.
The CyberPower Management Console offers real-time remote monitoring of PDU vitals as well as controlling outlets for networked clients. You can program outlets to turn on, turn off, or recycle at specified times. In addition to control, you can use Event Logging via a web browser/network connection to review history on power conditions, such as input voltages, load levels and outlet status. Automatic event notifications via Email or SNMP Trap are sent to designated user when specified power events occur.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. A RJ-45 port enables the connection of the optional ENVIROSENSOR environmental sensor for monitoring the heat and humidity in an IT center. It can be mounted horizontally, includes cord retention trays and is UL60950_1 and FCC Class A certified.
CyberPower 30SWVT24FNET Features
- Switched Power Distribution Unit (PDU) with 120V AC, 30A maximum capacity (derated to 24 amps), built-in Web/network interface and 2U horizontal form factor
- NEMA L5-30P twist lock plug and (24) NEMA 5-20R controllable outlets are standard on the PDU30SWVT24FNET PDU
- The LCD provides users with real-time metering for current (amperes), input voltage, power consumptions (kilowatts) and the IP address to make setup easy
- Output receptacles can be controlled individually at the PDU or remotely (via Web/network connection) to turn on, turn off or reset frozen equipment
- Using the CyberPower Management Console, you can program outlets to turn on, turn off, or recycle at specified times collectively or individually to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing and locking out unauthorized loads
- Event logging is available via a web browser/network connection to review history on power conditions, such as input voltages, load levels and outlet status
- Switched and Monitored PDUs include a RJ45 network port to connect to an Ethernet network for monitoring or controlling PDU outlets and vitals
- A RJ-45 port enables the connection of the optional ENVIROSENSOR environmental sensor for monitoring the heat and humidity in an IT center
- Fast and easy network setup can be done automatically with DHCP or manually by assigning a user defined IP address
- Administrator and User rights can be established to provide IT personnel with access to the Management Console via a web browser to monitor and/or manage the PDU settings
- Automatic event notifications, via email or SNMP traps, provide IT personnel immediate updates on power events including user defined thresholds
- CyberPower Switched PDU includes protocol support for PowerPanel Business Edition, HTTP, TCP/IP, UDP, DHCP and SNMP
- Cord retention brackets are included to keep power cords organized and securely plugged in
- Designed without a power switch to prevent accidental power interruptions
- Zero U (0U) vertical rack installation supported with the included brackets
