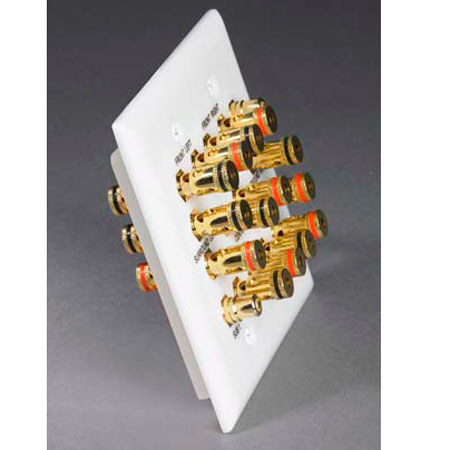

DataComm Electronics 7.2 Channel Speaker Wire Connector Double Gang Wall Plate

See all DataComm Electronics items
SKU: DA450070 MFR: 45-0070
Made in USA

Our Price

$29.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

DataComm Electronics : Picture 1 regular $29.99

About DataComm Electronics

Add a clean, professional finish to your home theater installation with using this DataComm Electronics 7.2 Channel Speaker Wire Connector Double Gang Wall Plate. Designed for the home theater using in-wall and/or in-ceiling speakers for the front left and right, center and rear left and right channels as well as subwoofer, this wall plate provides a centralized in-wall connection point for your speaker wire and subwoofer cable. There are gold plated connectors on the front and back of the plate that can be screwed down to lock in bare wire; alternatively, banana plug connectors can be used.

Additionally there is an RCA -style F-connector on the front and back of the plate for the subwoofer. Run all of the speaker wires and the subwoofer cable(s) inside the walls and connect them to the rear of the wall plate, then connect the audio receiver/amplifier speaker outputs to the front of the wall plate and your finished. You'll appreciate the color-coded, solderless connectors that are labeled to make this process a bit easier. Installation of this wall plate requires the use of a double gang junction box, sold separately.

DataComm Electronics Features

  • Compatible with 7.2 surround sound stereo systems
  • Front and back gold plated push-pin/banana plug connectors
  • Automatic conductor adjustments ensures perfect connectivity every time
  • Color-coded connectors with labels simplify room setup and configuration

DataComm Electronics Specifications

Speaker Connectors
Gold plated, with screw-in/banana plug connectors
Plate Size
Double Gang; fits standard double gang wall enclosures
Speaker Connectivity
Positive and Negative binding post push-pin/banana plug connectors for each of the following: Front Left, Front Right, Front Center; Surround Left, Surround Right; Rear Left, Rear Right; and one RCA Subwoofer connectors
Dimensions (W x H x D)
4.8" x 4.8" x 1.1" (12.2 x 12.2 x 2.8 cm)
Weight
0.7375 lbs. (0.334kg)
Mfr #
45-0070
SKU
DA450070
