DBX

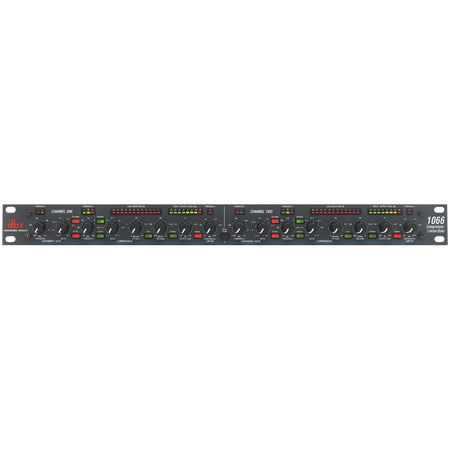

DBX 1066 Compressor/Limiter/Gate

SKU: DBX1066 MFR: 1066
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$649.95 List Price

Our Price

$429.95
Free Shipping
Qty:

Add to Wishlist

About this item

The dbx 1066 dual mono/stereo compressor/limiter with gate carries both the classic dbx response, in addition to full manual control over the attack and release characteristics. Frequency dependent gain control is easy to set up and execute with the side chain and the Side Chain Monitor button helps with setting up the required EQ.

The contour switch allows entire mixes to be easily smoothed with soft compression, while keeping low frequencies from punching holes in the overall mix. Selectable input and output metering provides information to help match equipment level-wise, maximizing signal-to-noise ratio. For overall speaker protection, PeakStopPlus represses unwanted transients that could blow drivers, while minimizing the distortion common to many other hard-limiters. Selectable Hard-Knee or OverEasy characteristics make the 1066 ideal for gain control needs, whether for "heavy" almost-special-effects compression or soft, smooth gain leveling.

In the studio, broadcast facility, or on the road with a P.A. system, the 1066 is designed for simple operation. It allows the user to eliminate unwanted signals, control overall signal gain and guard the overall mix in dual mono or stereo operations.

What's Included With This Item

  • dbx 1066 Compressor/Limiter/Gate
  • Power Cable
  • dbx 2 Years Warranty

Key Features

  • Selectable auto (classic dbx) or manual (variable Attack and Release) compression
  • Contour switch removes unwanted low frequency information from detector circuit
  • Selectable Overeasy or Hard Knee compression modes
  • PeakStopPlus limiting for setting maximum allowable level with minimal distortion
  • SC Ext and SC Mon for setting up and monitoring external devices for gating function
  • True differentially balanced gold-plated XLR and 1/4" inputs and outputs
  • True RMS level detection
  • Precision metering of input level, output level and gain reduction
  • True stereo or dual mono operation
  • Switchable +4dBu or -10dBV operation per channel

Technical Specs

Input: Type Electronically balanced/unbalanced, RF filtered
Input: Connectors XLR and 1/4" TRS (Pin 2 and tip hot)
Input: Impedance Balanced > 50 kOhm, unbalanced >25 kOhm
Input: Max Input Level +24 dBu balanced or unbalanced
Input: CMRR Typically >50 dB at 1 kHz
Output: Type Servo-balanced/unbalanced, RF filtered
Output: Connectors XLR and 1/4" TRS (Pin 2 and tip hot)
Output: Impedance Balanced 120 Ohm, unbalanced 60 Ohm
Output: Max Output Level > +21 dBm balanced, > +20 dBm unbalanced
Sidechain Input: Type Unbalanced, RF filtered
Sidechain Input: Connector 1/4" TS
Sidechain Input: Impedance >10 kOhm
Sidechain Input: Max Input Level >+24 dBu
Sidechain Output: Type Impedance balanced, RF filtered
Sidechain Output: Connector 1/4" TRS (tip hot)
Sidechain Output: Impedance Balanced 2 kOhm, unbalanced 1 kOhm
Sidechain Output: Max Input Level >+21 dBu balanced or unbalanced
System Performance: Bandwidth 20 Hz to 20 kHz, +0/0.5 dB
System Performance: Frequency Response 0.35 Hz to 90 kHz, +0/-3 dB
System Performance: Noise <-96 dBu, unweighted, 22 kHz measurement bandwidth
System Performance: Dynamic Range > 118dB, unweighted
System Performance: THD+Noise 0.008% typical at +4 dBu, 1 kHz, unity gain
0.08% typical at +20 dBu, 1 kHz, unity gain
< 0.1% any amount of compression up to 40 dB, 1 kHz
System Performance: IMD < 0.1% SMPTE
System Performance: Crosstalk < -80dB, 20 Hz to 20 kHz
System Performance: Stereo Coupling True RMS Power Summing
Compressor: Threshold Range -40 dBu to +20 dBu
Compressor: Ratio 1:1 to infinity:1
Compressor: Threshold Characteristic Selectable OverEasy or hard knee
Compressor:Attack/Release Characteristic Auto Dynamic
Compressor: Attack/Release Modes Selectable Manual or Auto
Compressor: Manual Attack Time Scalable program-dependent
Compressor: Manual Release time Scalable program-dependent
Compressor: Auto Attack Time Program-dependent
Compressor: Auto Release Time Program-dependent
Compressor: Output Gain -20 to +20 dB
Limiter Type PeakStopPlus two-stage limiter
Limiter: Threshold Range +4 dBu to +24 dBu (off)
Limiter: Ratio Infinity:1
Limiter: Stage 1 PeakStop brickwall limiter
Limiter: Attack Time Zero
Limiter: Release Time Zero
Limiter: Stage 2 PeakStop brickwall limiter
Limiter: Attack Time Program-dependent
Limiter: Release Time Program-dependent
Expander/Gate: Threshold Range Off to +15dBu
Expander/Gate: Ratio 1:1 to 30:1
Expander/Gate: Attack Time < 100 microsec
Expander/Gate: Release Time Program-dependent
Indicator: Gain Reduction Meter 12-segment LED bar graph at 1, 2, 4, 6, 9, 12, 15, 18, 21, 24, 27 and 30 dB
Indicator: Input/Output Meter 8-segment LED bar graph at -24, -18, -12, -6, 0, +6, +12 and +18 dBu
Indicator: Compressor Threshold Meter 3-segment LED bar graph at Below (-), OverEasy and Above (+)
Indicator: Exp/Gate Threshold Meter 2-segment LED bar graph at Below (-) and Above (+)
Indicator: Limiter, Threshold Meter 1 LED to indicate PeakStopPlus limiting
Output Transformer Per Channel Jensen JT-123-dbx or JT-11-dbx, BCI RE-123-dbx or RE-11-dbx
Operating Voltage: 100-120 VAC 50/60 Hz 200-240 VAC 50/60 Hz
Power Consumption: 20 Watts
Fuse 100-120 VAC: 250 mA Slow Blow
200-240 VAC: 125 mA Type T
Mains Connection IEC receptacle
Dimensions (H x W xD) 1.75 x19 x9"(4.4cmx48.3cmx20.1cm)
Weight 5.1 lbs. (2.3 kg)
