DBX

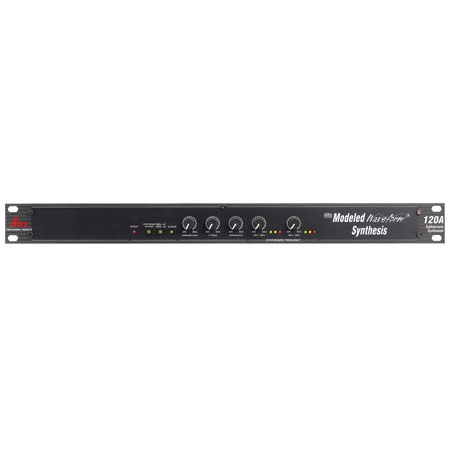

DBX 120A Subharmonic Synthesizer

SKU: DBX120A MFR: 120A
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$299.95 List Price

Our Price

$199.95
Free Shipping
Qty:

Add to Wishlist

About this item

The dbx 120A Sub-harmonic Synthesizer with Modeled Waveform Synthesis has been specifically optimized to enhance bass audio material for use in a variety of professional applications, including nightclub and dance DJ mixing, theatre and film sound, music recording, live music performance and broadcasting. The unit's patented modeled Waveform Synthesis process builds a synthesized waveform, using the wave shapes of the original bass material, to produce a new modeled bass note exactly one octave below the original. The dbx process produces smooth, musical low frequencies that do not interfere with mid and high-band information even when maximum synthesis and boost are applied.

The 120A's two separate bands of sub-harmonic synthesis provide the best combination of smoothness and control, while the independent low frequency boost circuit is designed to get the most out of high-performance, low frequency speaker systems. Flexible system interfacing is achieved by providing main outputs which can be full range (including synthesis) or high-frequency only, along with a separate subwoofer output with its own level control. The result is a low-end punch that is really felt, even at system levels that won't destroy sound equipment or damage hearing.

What's Included With This Item

  • dbx 120A Subharmonic Synthesizer
  • AC Power Cable
  • dbx 2 Years Warranty

Key Features

  • Individual control for two ranges of subharmonic frequencies
  • Separate Low Frequency Boost Circuit
  • Separate Subwoofer Output
  • 1/4" Balanced inputs and outputs
  • RCA Input Connectors
  • Front panel LEDs that show crossover status and synthesis activity
  • Patented circuitry ensures that mid and high frequencies are not affected
  • Built-in crossover with choice of 80Hz or 120Hz crossover point
  • Enhance bass audio material for use in a variety of professional applications such as:
  • Nightclub and dance mixing
  • DJ Mixing
  • Theater and Film Sound
  • Music Recording
  • Live Music Performance
  • Broadcasting

Technical Specs

Frequency Response 20Hz-20kHz ±0.5dB, (no synthesis, full-range mode) 15Hz-90kHz +0, -3dB
Input Impedance >= 40k ohm Bal or 20k ohm unbal. (1/4") 20k ohm (RCA)
Maximum Input Level +22dBu (1/4") +8.5dBV (RCA)
Output Impedance 100 ohm, Impedance balanced
Maximum Output Level +22 dBu into 600 ohm
Connector Type 1/4" TRS jacks (inputs and outputs) RCA inputs
THD 0.05% (no synthesis, either output)
Output Noise -88dBu, controls@max., 22Hz > 22kHz unweighted (full range output)
Front Panel Controls 26-36Hz and 36-56Hz Band Synthesis Level, Subharmonics,
Low Frequency Boost, Subwoofer Output Crossover Frequency, Select, Crossover in/out
Indicators Power, Crossover, Bypass
Metering Synthesis activity (3 LEDs per band)
Dynamic Range 112dB
Synthesis Frequency Range 26-56Hz (from 54-110Hz input signal)
Crossover 12dB/octave high pass (-3dB @ 80 Hz or 120Hz);
6dB/octave derived low pass. Phase-coherent (unity-sum)
Power Requirements 100-120VAC; 50/60Hz DO Version, 220-240VAC; 50/60Hz EU Version
Rack Space 1 Rack Unit
Dimensions 1.75"x19"x6.2" (4.5cm x 48.3cm x 15.75cm)
Weight 4.75 lbs/2.15 kg
