DBX 376 Tube Channel Strip with Digital Out

DBX
SKU: DBX376 MFR: 376
DBX : Picture 1 thumbnail DBX : Picture 2 thumbnail

List Price: $662.44

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
20% Off

Our Price

$529.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • 200V tube plate voltage
  • 3 band parametric EQ, compressor and de-esser
  • Front panel instrument input
  • Selectable dither and noise-shaping algorithms
DBX : Picture 1 regular $529.95

About DBX

The dbx 376 Tube Channel Processor contains the essential tools needed in a channel strip processor, with the additional capabilities of digital output. The unit includes such standard features as a tube microphone preamp section, 3-band parametric EQ, compressor and de-esser. With the included digital outputs, the unit is the perfect companion for recording and tracking vocals, or any applications needing microphones, both in the analog and digital domain.

The 376 combines the warmth of a vacuum tube, with the proprietary dbx Type IV A/D conversion system. In addition to the above features, the single rack space unit contains such standard offerings as +48V phantom power, a phase invert switch and low cut filtering. The digital outputs capabilities are supported in both AES/EBU and S/PDIF formats, as well as word clock I/O as standard features.

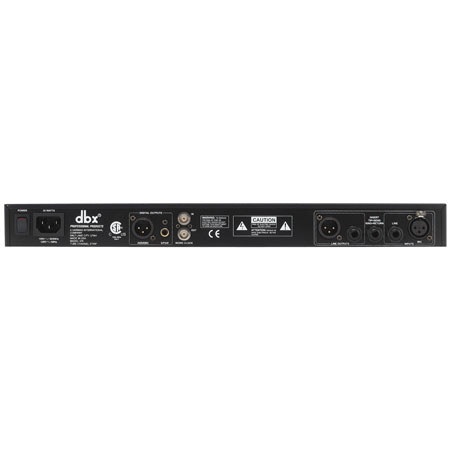

To provide convenience in the studio, the high impedance 1/4" instrument input, as well as the mic/line switch and 20dB pad of the 376 are located on the front panel. The LED meters give clear and concise information about the state of signal processing, while the rear panel houses the mic and line inputs and outputs, word clock sync input and output, insertion jack and digital outputs. Finally, the unit sports selectable sampling rates of 44.1, 48, 88.2 and 96 kHz, selectable dithering and noise shaping and separate analog and digital output controls.

DBX Features

  • No need to patch together multiple processors for use on one track
  • 200V tube plate voltage
  • 3 band parametric EQ, compressor and de-esser
  • Front panel instrument input
  • Drive meter LEDs, threshold and de-esser meters, 8 segment analog or digital meter
  • Selectable sampling rates and 16, 20 and 24-bit word lengths
  • Selectable dither and noise-shaping algorithms
  • AES/EBU and S/PDIF digital outputs and word clock sync input and output

DBX Specifications

Mic Input: Connector
Female XLR Pin 2 Hot
Mic Input: Type
Electronically balanced/unbalanced
Mic Input: Impedance
330 ohm
Mic Input: Max Input Level
-9 dBu or +11 dBu with 20 dB pad engaged
Mic Input: CMRR
>40dB, Typically 55dB
Mic Input: Equivalent Input Noise
Typically -120 dBu with a 150 ohm source load, 20Hz to 20kHz BW
Line Input: Connector
TRS 1/4" Jack
Line Input: Type
Electronically balanced/unbalanced
Line Input: Impedance
20k ohm unbalanced, 40k ohm balanced
Line Input: Max Input Level
+21dBu balanced or unbalanced
Line Input: CMRR
>40dB, Typically 55dB
Line Input: Gain (Drive Control)
-15dB to +15dB
Instrument Input: Connector
TS 1/4" Jack
Instrument Input: Type
Unbalanced
Instrument Input: Impedance
470k ohm
Instrument Input: Maximum Output Level
>+21 dBu unbalanced
Analog Outputs: Connector
Male XLR Pin 2 Hot and TRS 1/4"
Analog Outputs: Type
Servo-balanced/unbalanced
Analog Outputs: Impedance
Balanced 120 ohm, unbalanced 60 ohm
Analog Outputs: Maximum Output Level
>+21 dBu, >+20 dBm (into a 600 ohm load)
Insert: Connector
TRS 1/4"
Insert: Type
Unbalanced
Insert: Impedance
100 ohm (SEND), 20k ohm (RETURN)
Digital Outputs: Connector
XLR for AES/EBU
RCA for S/PDIF
Digital Outputs: Impedance
110 ohm for AES/EBU
75 ohm for S/PDIF
Word Sync Input/Output: Connectors
BNC
Word Sync Input/Output: Input Impedance
75 ohm terminated by internal jumper
Word Sync Input/Out: Input
96, 88.2, 48, or 44.1kHz word clock
Word Sync Input/Out: Output
96, 88.2, 48, or 44.1kHz word clock
Drive Control Range
+30dB to +60dB for Mic Input
-15dB to +15dB for Line and Instrument Inputs
Output Level Control Range
-20dB to +20dB
Line
Selects between microphone and line inputs
Phantom Power
+48V
PAD
20dB pad
Phase
Reverses pins 2 and 3 of the microphone input XLR
Low cut
75Hz, 12dB/octave high pass filter
Analog Frequency Response
<10Hz to 75kHz
THD + Noise
0.35% typical at +4dBu out, 1kHz, 40 dB gain
Equalizer: LOW Frequency
80 Hz, shelving filter
Equalizer: HIGH Frequency
12 kHz, shelving filter
Equalizer: MID Frequency
Sweepable from 100 Hz to 8 kHz, bandwidth 1.5 octaves
Equalizer: Gain (all bands)
Sweepable from -15 to +15 dB
Compressor: Threshold Range
-40 dBu to +20 dBu
Compressor: Threshold Characteristic
Selectable OverEasy or Hard Knee
Compressor Ratio
Variable; 1:1 to Infinity:1; 60 dB maximum Compression
Compressor: Attack Time
Program-dependent; Typically 5 ms (SLOW disabled), 15 ms (SLOW enabled) for 15 dB Gain Reduction
Compressor: Release Time
Program-dependent; Typically 50 dB/sec (SLOW disabled), 8 dB/sec (SLOW enabled)
De-esser: Characteristic
Wideband gain reduction
De-esser: Frequency Range
800 Hz to 10 kHz High Pass
De-esser: Release Time
12 dB/octave program-dependent; approximately 1 ms/dB
Analog to Digital: Type
dbx Type IV A/D Conversion System
Analog to Digital: Sample Rate
96, 88.2, 48, or 44.1kHz selectable
Analog to Digital: Wordlength
24, 20, or 16 bit selectable
Analog to Digital: Dither Type
TPDF, SNR2, or none
Analog to Digital: Noise Shape
Shape 1, Shape 2, or none
Analog to Digital: Output Format
S/PDIF or AES/EBU
Analog to Digital: Dynamic Range
107dB typical, A-weighted, 22kHz bandwidth
Operating Voltage
DO: 120VAC 60Hz, 100VAC 50/60Hz
EU: 230VAC 50/60 Hz
Power consumption
35W
Mfr #
376
SKU
DBX376
