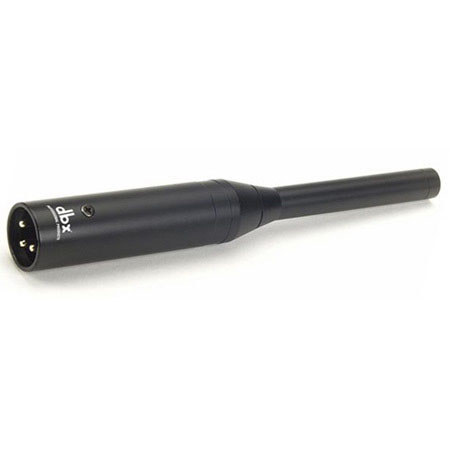

DBX DriveRack 480M Calibrated Measurement Microphone for 4800 Loudspeaker Management System

SKU: DBX480M MFR: 480M
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$799.95 List Price

Our Price

$599.95 $24 per week
Free Expedited Shipping
Add to Wishlist

Protect your investment

About the DBX 480M Sound Processing

The dbx 480M is a measurement microphone intended for large and small room calibration. The ultra wide frequency response of 9Hz to 27kHz is flat throughout the entire spectrum and results in accurate room calibration using Smaart, MLSSA, SIMM and TEF based systems. The small element yields an omni-directional pattern resulting in a wide pick up area at the front and sides of the microphone capsule.

DBX 480M Sound Processing Features

  • Miniature Omni-directional Capsule: The miniature element provides an accurate omni-directional pattern with an even coherent response at the direct and off-axis sections of the microphone capsule
  • Wide Linear Frequency Response: The wide, linear frequency response accurately captures audio signal and reproduces the slightest nuance with great detail
  • Uncolored Response: The uncolored, flat signal results in accurate room calibration for indoor and outdoor application

DBX 480M Sound Processing Specifications

Transducer Condenser
Polar Pattern Omnidirectional
Frequency Response 5Hz to 30kHz, +1/-3dB
Signal-to-Noise Ratio 27dB SPL equivalent (A-weighted)
Maximum Input Sound Level 150dB
Power Requirements +48V phantom, 10mA
Output Impedance 600 Ohms
Output Connectors XLR, intended to drive a balanced transformer less input, pin 2+
Pad No
Low Frequency Roll-Off No
Dimensions Length: 9" (229 mm)
Weight 0.5 lbs (0.22 kg)
