DBX ZonePRO 641m 6x4 Digital Zone Processor, 20Hz to 20kHz Frequency Response

The dbx ZonePRO 641m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus. The 641m features a total of six inputs and four outputs. Inputs include four balanced mic/line switchable terminal block inputs and two mono-summed pairs of unbalanced RCA inputs. Hardware-controlled microphone gain allows adjustment of microphone gain per channel.

The 641m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.

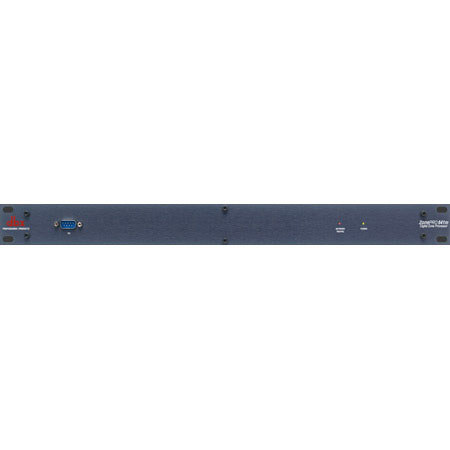

A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required. The front panel of the 641m features a power status LED, a network traffic LED and an RS-232 control port.

Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control. dbx ZonePRO 641m device can be controlled by third party control systems via RS-232 or Ethernet as applicable. ZonePRO Designer-the configuration, control and monitoring software for the ZonePRO family of devices-offers control of the ZonePRO 641m via Ethernet or RS-232. The Configuration Wizard within ZonePRO Designer guides users through the step-by-step configuration process of the 641m.
