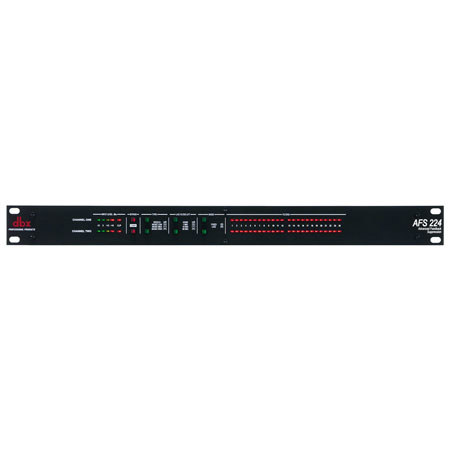

About the DBX AFS224

The dbx AFS 224 Advanced Feedback Suppression processor is designed to provide state-of-the art feedback elimination processing, while maintaining a simple and intuitive control interface. From the powerful DSP module to the no-nonsense user interface, the AFS 224 provides all the processing and control necessary for both installation and live use.

This dedicated feedback suppression processor offers up to 24 filters per channel with filter Qs up to 1/80 of an octave. To achieve these staggering numbers, dbx utilized their patent-pending AFS technology, which takes all of the guesswork out of feedback removal. In addition to the plethora of feedback suppression filters available, the AFS 224 also offers selectable modes, live filter lift and types of filtration, which are all readily available via the intuitive user interface front panel.

DBX AFS224 Includes

  • dbx AFS224 Advanced Feedback Suppression Processor
  • AC Power Cable
  • dbx 2 Years Limited Warranty

DBX AFS224 Features

  • dbx's Patent-pending (Advanced Feedback Suppression) AFS technology
  • 24 Programmable Filters per Channel
  • Stereo or Dual Independent Channel Processing
  • Live and Fixed Filter Modes
  • Selectable Filter Lift Times
  • Application-specific filter types include: Speech and Music Low, Med and High
  • Input channel Metering
  • 24 LED per Channel Filter Metering
  • XLR and TRS Inputs and Outputs

DBX AFS224 Specifications

Analog Inputs: Number of Inputs 2
Analog Inputs: Connections Female XLR ad 1/4" TRS
Analog Inputs: Type Electronically bal/unbal RF filtered
Analog Inputs: Impedance Bal 40k ohm, unbal 20k ohm
Analog Inputs: Max. Input Level +20dBu
Analog Inputs: CMRR >40dB, typically >55dB @ 1kHz
Analog Outputs: Number of Outputs 2
Analog Outputs: Connectors Male XLR and 1/4" TRS
Analog Outputs: Type Electronically bal/unbal, RF filtered
Analog Outputs: Impedance Balanced >120 ohm, unbalanced >60 ohm
Analog Outputs: Max Output Level +20dBu
A/D Performance: Type dbx Type IV conversion system
A/D Performance: Dynamic Range >114dB, A-weighted, >112dB unweighted
A/D Performance: Type IV dynamic range >119dB, A-weighted, 22kHz BW117dB, A-weighted, 22kHz BW
A/D Performance: Sample Rate 48kHz
System Performance: Dynamic Range 112dB, A-weighted, 110dB unweighed
System Performance: Dynamic Range >110dB, A-weighted, >107dB unweighted
System Performance: THD+N 0.002% typical at +4dBu, 1kHz, 0dB input gain
System Performance: Frequency Response 20Hz - 20kHz, +/-0.5dB
System: Interchannel Crosstalk >80dB typical
System: Crosstalk input to output >80dB
Operating Voltage 100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz
Power consumption 9 Watts
Safety Agency Approvals UL 6500, IEC 60065, EN 55013, E 60065
