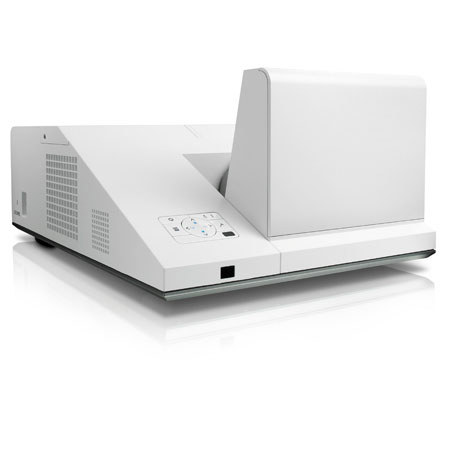

Dell S500 Ultra Short Throw WXGA DLP Projector, 1280x800 Resolution, 3200 ANSI Lumens, 2300:1 Contrast Ratio

SKU: DELS500 MFR: S500
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Expedited Shipping
Free Shipping
Add to Wishlist

Protect your investment

About the Dell S500

The Dell S500 Ultra Short Throw WXGA DLP Projector helps take learning to a new level by projecting large, clear images onto virtually any surface and take advantage of 3D projection capability. Your students will enjoy getting out of the textbook and onto the screen. It helps give every seat in the room a great view, thanks to the amazing picture quality you can get from DLP technology and BrilliantColor.

This projector helps deliver engaging, lights-on presentations with optimal brightness of 3200 ANSI Lumens (max.) and contrast ratio of 2300:1 typical (full on/full off). Enjoy a deluxe suite of connectivity options, including dual VGA, HDMI, S-Video, RJ45, USB (USB Display) and microphone. Help get everyone involved in the action through concurrent wireless connection of up to 30 users or projection from up to 4 different sources on the same screen simultaneously.

The Dell S500 Ultra Short Throw Projector helps turn your classroom or conference room into a captivating place to relay important lessons. With the S500 say goodbye to presenter shadows and glaring projector lamp light as the presenter doesn't need to stand between the projector and the screen. Command attention through outstanding audio clarity with the dual built-in 5 W speakers and a quiet fan operation of just 31 dB(A) Eco-Mode.

The Dell S500 engages users with hearing disabilities with closed captioning by displaying audio portions of a presentation as text on the screen. Use on a tabletop or mount it to the wall with the optional kit. Feel confident your projector is secure with password protection and the integrated Security Cable Lock Slot (security cable sold separately). Once you set up your Dell S500 projector, you can rest easy knowing that this projector is designed with longevity in mind.

Dell S500 Includes

  • Dell S500 Ultra Short Throw WXGA DLP Projector
  • Power Cable
  • VGA Cable
  • 2 x AAA Battery
  • USB Cable
  • Remote Control
  • Cable Cover
  • CD User's Guide and Documentation
  • Dell 2 Years Limited Warranty

Dell S500 Features

  • Enjoy fewer interruptions with a long lamp life of up to 3,000 hours (Eco-mode). Bulb changing can be easy to do while installed on the wall mount
  • Gear up with network management control for remote access to the Dell S500 either via LAN or the integrated Crestron Roomview software

Dell S500 Specifications

Brightness 3200 ANSI Lumens (Max.)
Contrast Ratio 2300:1 Typical (Full On/Full Off)
Resolution WXGA (1280 x 800)
Uniformity 80% Typical (Japan Standard - JBMA)
Projection Lens F-Stop: F/2.71
Image Size 77" (1.95m) - 100" (2.54m)
Projection Distance 1.6ft (0.49m) - 2.15ft (0.66m)
Throw Ratio 0.3 (wide and tele)
Set Up 3D - Capable
Lamp Life Cycle Up to 2,500 hours Typical Mode
Up to 3,000 hours Eco-Mode
Lamp Type Philips 280W user-replaceable
Audio Multimedia Audio: 2x 5W Speaker
Connectivity Power AC power input socket
Computer Input 2x D-Sub for analog RGB/Component, HDTV input signals
Computer Output 1x 15-pin D-Sub
Video Input 1x Composite Video RCA / 1x S-Video
USB Input 1x mini USB slave for remote support, firmware upgrade / 1x USB Type A for USB Viewer / 1x USB Type B for USB Display
Wireless USB Wi-Fi connector for optional wireless functionality (USB wireless dongle sold separately)
Audio Input 1x phone jack (dia 3.5mm) / 1x pair of RCA connector
Audio Output 1x phone jack (dia 3.5mm)
Networking 1x RJ45 connector for networking
HDMI Input 1x HDMI 1.3 (HDCP compliant)
RS232 1x mini-DIN RS232 for wired remote projector control from PC
Microphone 1x microphone port
DC Jack 12V Output 1x DC jack 12V at 200mA output, relay control for automatic projection screen control
Video Compatibility S-Video/Composite Video: NTSC [J, M, 4.43, supports Closed Captioning (CC1-CC4)], PAL (B, D, G, H, I, M, N, Nc, 60), SECAM (B, D, G, K, K1, L)
Component Video (via VGA) & HDMI (HDCP Compliant) - 480i/p, 576i/p, 720p,1080i/p
PC (VGA, HDMI): follow "Dell Preferred Video Modes Specification for Displays
Keystone Correction Vertical: +40deg. / -35deg.
Power Universal AC 100-240 50-60Hz with PFC input
Power Consumption Normal mode: 345W ± 10% at 110Vac (Network On)
Eco-Mode: 320W ± 10% at 110Vac (Network On)
Power saving mode: < 10W (wireless & network on)
Standby mode: < 0.5W (network, VGA OUT & wireless off)
Operating temperature 5deg.C - 35deg.C (41deg.F - 95deg.F)
Operating Humidity 80% (maximum)
Storage temperature 0deg.C - 60deg.C (32deg.F - 140deg.F)
Storage Humidity 90% (maximum)
Dimensions (WxHxD) 12.9x7.5x16.6" / 327.6x190.5x421.64mm
Weight 15.6lbs ± 0.05lbs / 7.07kg ± 0.022kg
