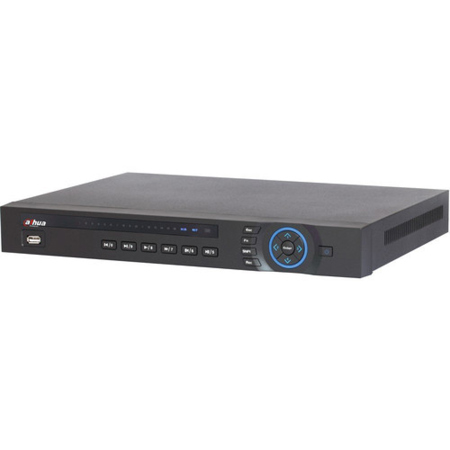

Dahua DH-NVR4416-16P-4K 1.5U 12MP 16 Channel 4K Network Video Recorder, No HDD
See all dahua items

Dahua DH-NVR4416-16P-4K 1.5U 12MP 16 Channel 4K Network Video Recorder, No HDD

SKU: DHNV441616P4

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Dahua DH-NVR4416-16P-4K Specifications

  • Main Processor

    Dual-core embedded processor

  • Operating System

    Embedded LINUX

  • IP Camera Input

    16 channel

  • Two-way Talk

    1channel Input, 1channel Output, RCA

  • Interface

    2 HDMI,1 VGA

  • Resolution

    3840x 2160, 1920x 1080, 1280x 1024, 1280x 720, 1024x 768

  • Display Split

    1/4/8/9/16

  • OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  • Compression

    H.265/H.264/MJPEG

  • Video Resolution

    12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.

  • Record Rate

    192Mbps

  • Bit Rate

    1 - 20Mbps

  • Record Mode

    Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

  • Record Interval

    1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec

  • Trigger Events

    Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

  • Video Detection

    Motion Detection,MD Zones: 396(22 x 18), Video Loss & Camera Blank

  • Alarm Input

    16 channel

  • Relay Output

    6 channel

  • Sync Playback

    1/4/9/16

  • Search Mode

    Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/Network/Internal SATA burner/eSATA Device

  • Ethernet

    1 RJ-45 port (10/100/1000Mbps)

  • PoE

    16 ports (IEEE802.3at/af)

  • Network Function

    HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)

  • Max. User Access

    128users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Internal HDD

    4 SATA III ports, up to 24TB

  • External HDD

    1 eSATA port

  • USB

    3 ports (2 Rear USB3.0, 1 Front USB2.0)

  • RS232

    1 port, For PC communication& Keyboard

  • RS485

    1 port, For PTZ control

  • Power Supply

    Single, AC 100-240V, 50/60 Hz

  • Power Consumption

    NVR: 26.5W (without HDD)
    PoE: Max 25.5W for single port , 150W in total

  • Working Environment

    -10 to 55 deg. C / 14 to 131 deg. F
    10%-90%RH
    86-106kpa

  • Dimensions (W x D x H)

    1.5U, 440 x 405 x 76mm / 17.32 x 15.94 x 2.99"

  • Weight

    4.65kg / 10.25lbs (without HDD)

1 Accessories for Dahua DH-NVR4416-16P-4K 1.5U 12MP 16 Channel 4K Network Video Recorder, No HDD

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Dahua DH-NVR4416-16P-4K

• Up to 16 channel IP camera input
• H.265/H.264/MJPEG dual codec decoding
• Max 256Mbps incoming bandwidth
• Up to 12Mp resolution live-view&playback
• 2HDMI/1 VGA simultaneous video output
• 16 channel synchronous realtime playback, GRID interface
• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
• ONVIF Version 2.4 conformance
• 3D intelligent positioning with Dahua PTZ camera
• Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0), 1 eSATA port up to 16TB
• Support IPC UPnP, 16PoE ports (for -16P model)
• Support P2P, QR code scan & add
• Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)
