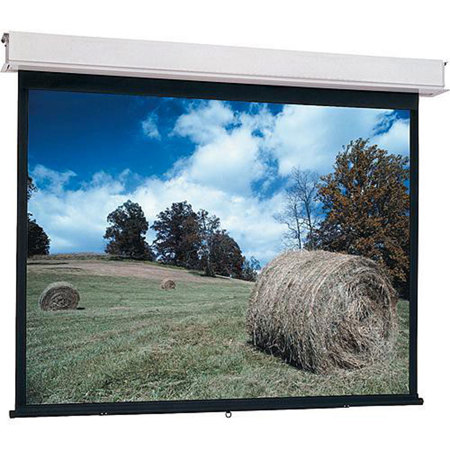

Da-Lite Advantage Manual, Square Format Ceiling Recessed Manual Screen, 12x12', 17' Diagonal, Matte White Surface
SKU: DLADMC12XMW
This item is no longer available.
Share:
Overview
Compare
Accessories
Specs
Protection
Q&A
About Da-Lite 85694 Advantage Manual Screen, 12x12', 17' Diag
When seeking a high-quality, manually operated screen for your audio-visual needs, consider the Advantage Manual, a Square Format Ceiling Recessed Manual Screen. This 12x12', 17' diagonal screen is designed with a matte white surface, ideal for situations where presentation material is projected and ambient light is controllable.
The Advantage Manual screen is engineered with the installation process in mind, offering the convenience and flexibility of installing the case and fabric/roller assemblies at separate stages of construction. This feature allows for a more streamlined and efficient installation process.
The screen's unique design includes a floating mounting method, utilizing adjustable roller brackets. This is integrated into the lightweight, extruded aluminum case, allowing for the centering or offsetting of the screen as needed. The finished case edges provide a clean look and comfortable build-in of ceiling tiles, ensuring a seamless integration into your space.
One of the standout features of the Advantage Manual screen is the Controlled Screen Return (CSR) system, offered exclusively by Da-Lite. The CSR system ensures a quiet, controlled return of the screen into the case, providing optimal performance and smooth, consistent operation. Please note, screens with the CSR feature must be fully extended, as there are no intermediate stopping positions.
The Matte White fabric, up to and including 10' high, will be seamless, ensuring a smooth viewing experience. Video Spectra 1.5 and High Contrast Matte White fabric up to and including 8' high, as well as High Power fabric up to and including 6' high, will also be seamless.
The matte white surface of the screen is one of the most versatile screen surfaces available. It evenly distributes light over a wide viewing area, ensuring colors remain bright and life-like, with no shifts in hue. This screen surface is flame retardant and mildew resistant, offering durability and longevity. With a viewing angle of 60 degrees and a gain of 1.0, the Advantage Manual screen is a reliable choice for your projection needs.
Da-Lite 85694 Advantage Manual Screen, 12x12', 17' Diag Features
- Provides Optimal Performance and Smooth Consistent Operation
- Designed for ceiling recessed installation
- Surface with black masking borders standard, on flame retardant and mildew resistant fiberglass fabric, mounted on a ball bearing rigid steel spring roller
- A floating mounting method utilizing adjustable roller brackets is designed into a lightweight, extruded aluminum case allowing the centering or offsetting of the screen
- Equipped with Controlled Screen Return (CSR) to control the return speed of the screen surface back into the case
- Top, front, and back of case made of extruded aluminum
- End caps made of heavy gauge steel
- Bottom of case has a removable access door
- Case is powder coated white. Handsome finished white aluminum case provides a clean look and allows easy installation of ceiling tiles
- Bottom of case is self-trimming, with a built-in flange around the bottom of the case
- Bottom of screen formed into pocket holding tubular metal slat
- A steel pull bail is attached to the slat
- Heavy-duty plastic caps protect the ends of the slat
- Metal bumper stops built into the case to prevent slat wedging inside case
- A 6' pull cord with plastic knob is included
- Roller mounting brackets are adjustable to allow centering or offsetting the screen within the case
- Suitable for use in environmental air space in accordance with section 300-22 (c) of the National Electric Code, and sections 2-128, 12-010 (3) and 12-100 of the Canadian Electrical Code, part 1, CSA C22.1
