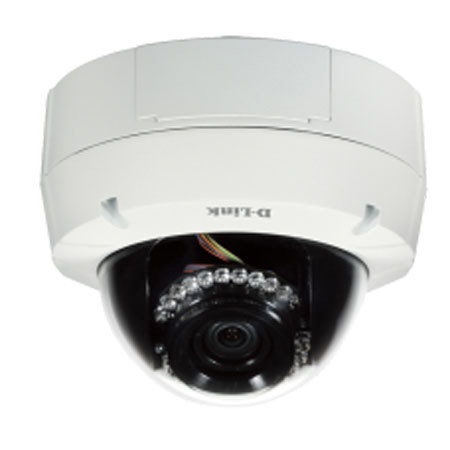

D-Link DCS-6513 Full HD WDR Day & Night Outdoor Dome Network Camera, 3MP, 10x Digital Zoom, 20m/65.6' IR Illumination Distance, Motorized P-Iris Lens

SKU: DLCS6513 MFR: DCS-6513

See all shipping options

In Stock & Ready to Ship

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

D-Link DCS-6513: Picture 1 regular $939.95

About D-Link DCS-6513

The D-Link DCS-6513 Full HD WDR Day & Night Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium and large enterprises. The camera uses a high-sensitivity 3 megapixel progressive scan CMOS sensor with a motorized P-Iris lens and onboard WDR image enhancement to deliver truly superior quality video in all conditions. The All-in-One rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for accessories.

D-Link DCS-6513 Features

  • The DCS-6513 is equipped with a motorized P-Iris lens that controls the iris with extreme precision. Its built-in stepping motor controls the iris opening automatically in varied light environments and maintains it at an optimal level at all times
  • The remote zoom and focus function allows to make adjustments from any computer and eliminates the need for manual focusing at the camera's position
  • The DCS-6513 Wide Dynamic Range technology (WDR) neutralizes imperfect lighting and provides clear images with the right amount of contrast even for backlit subjects and delivers an improved image
  • It has a built-in ICR module and IR LED for 24 hour surveillance and ensures capture up to 20 meters in complete darkness
  • IP-67 weatherproof and IK10 anti-vandal certified robust housing and a range of mounting options allow installation in a wide variety of indoor and outdoor locations and environments
  • The DCS-6513 has a built-in 802.3af compliant PoE module allowing it to be easily installed in a variety of locations without the need for supplemental power cabling
  • Exceptional Video Quality: 1/2.8" 3 megapixel progressive CMOS sensor
  • Exceptional Video Quality: 3 to 9 mm motorized varifocal lens
  • Exceptional Video Quality: Full HD resolution of 1920 x1080 and up to
  • Exceptional Video Quality: 3 megapixels at 2048 x 1536
  • Exceptional Video Quality: P-Iris technology for superior image quality
  • Exceptional Video Quality: Wide Dynamic Range image enhancement
  • Exceptional Video Quality: H.264, MPEG-4, MJPEG codec support for streaming and recording
  • Outdoor placement: Built-in IR LED illuminator with a 20 meter range for use in dark areas
  • Outdoor placement: Built-in heating and cooling ensure the camera can work in a range of climates from -40 to 50 deg.C
  • Outdoor placement: Range of mounting options for flexible placement
  • Outdoor placement: IP67 weatherproof and IK10 anti-vandal certified housing
  • Outdoor placement: Weather shield to protect unit when mounted outdoors
  • Flexibility: MicroSD/SDHC Card slot for onboard storage
  • Flexibility: 10/100 Fast Ethernet port with PoE ensures easy integration into your network
  • Flexibility: DI/DO socket for connection to external devices
  • Flexibility: Audio in and out jacks can be connected to a microphone and speaker for 2-way communication
  • Image Features: Configurable image size, quality, frame rate and bit rate; Time stamp and text overlays; Configurable motion detection windows; Configurable privacy mask zones; Configurable shutter speed, brightness, saturation, contrast, sharpness, zoom, focus and aperture

D-Link DCS-6513 Specifications

1/2.8" 3 Megapixel progressive CMOS sensor
IR illumination distance
20m / 65.6'
Minimum illumination
0.5 lux (F1.2, color mode), 0 lux (B/W, IR-LED on)
Infrared-Cut Removable Filter module
Digital zoom
3 to 9 mm motorized varifocal lens
Angle of view (16:9)
(H) 96.4deg. to 31.6deg.
(V) 51.2deg. to 17.7deg.
(D) 114.1deg. to 36.3deg.
Camera Housing
IP-67 compliant weatherproof housing
IK-10 compliant vandal-proof housing
Included weather shield
Video Compression
Simultaneous H.264/MPEG-4/MJPEG format compression
H.264/MPEG-4 multicast streaming
JPEG for still images
Video Resolution
4:3 (at 15 fps):
4:3 (at 30 fps):
16:9 (at 30 fps):
1920 x 1080
1280 x 720
800 x 450
640 x 360
480 x 270
320 x 176
176 x 144
Audio Support
External Device Interface
10/100 BASE-TX Ethernet port with PoE
1 DI / 1 DO
DC 12 V, 100 mA output
Audio input/output
DI/DO connector 12 V DC output
Network Protocols
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
Samba client
UPnP port forwarding
IP filtering
ONVIF compliant
Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption
System Requirements for Web Interface
Browser: Microsoft Internet Explorer 6 or higher, Firefox 1.5 or higher, or other Java-enabled browser
Event Management
Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications Multiple recording methods for easy backup
Remote Management
Take snapshots/video clips and save to local hard drive or NAS via web browser
Configuration interface accessible via web browser
Operating Systems
Windows 8/7/Vista/XP/2000
D-ViewCam System Requirements
Operating System: Microsoft Windows 7/Vista/XP
Web Browser: Internet Explorer 7 or higher
Protocol: Standard TCP/IP
D-ViewCam Software Functions
Remote management
Control and manage up to 32 cameras
View up to 32 cameras on one screen
Management functions provided in web interface
Scheduled recording, motion detection and manual recording triggers
External Power Adapter
Input: 100 to 240 V AC, 50/60 Hz
Output: 12 V 1.25 A
Power Consumption
10.5 watts ± 5%
Operating: -40 to 50 deg.C (-40 to 122 deg.F)
Storage: -20 to 70deg. C (-4 to 158deg. F)
Operating: 20% to 80% non-condensing
Storage: 5% to 95% non-condensing
With Weather Shield: 3.37lbs (1.53kg)
