D-Link

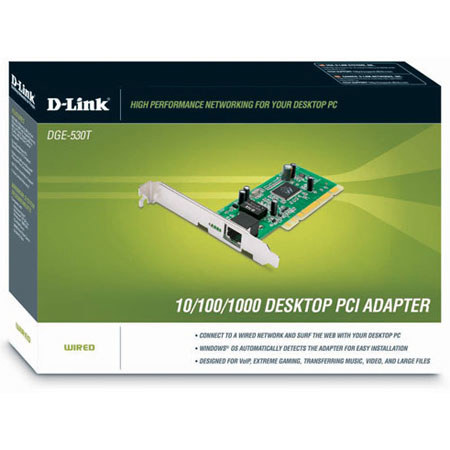

D-Link 10/100/1000 Gigabit Desktop PCI Adapter with 2000Mbps Gigabit Full-duplex Support

SKU: DLDGE530T MFR: DGE530T
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$21.99
Qty:
Add to Wishlist

About this item

The D-Link 10/100/1000 Gigabit Desktop PCI Adapter (DGE-530T) delivers high performance wired network connectivity to your desktop PC. Connect to your Gigabit home or business network and transfer files at speeds 10 times faster than 10/100 Fast Ethernet devices. Once connected, access music, documents, movies and photos that are shared on your network.

You can also access your network's available high-speed Internet connection to check e-mail, browse the web and chat with friends and family online. In addition, with blazing fast Gigabit speed and the 802.1p Quality of Service (QoS) feature, you can make and receive jitter-free Voice over IP (VoIP) calls as well as experience lag-free LAN gaming.

This Gigabit Desktop PCI Adapter includes advanced features such as Wake-On-LAN and 802.3x. Computers and operating systems that support the Advanced Configuration and Power Interface (ACPI) can remotely wake your PC from anywhere on the network with the Wake-On-LAN feature. With the support for 802.3x flow control, data is received and transmitted smoothly to and from the network.

This Gigabit Desktop PCI Adapter is automatically detected by Windows during installation, simplifying the setup process. Supporting IEEE 802.3, 802.3u and 802.3ab standards, this Gigabit Desktop PCI Adapter ensures compatibility with 10BASE-T, 100BASE-TX and 1000BASE-T networks.

Additionally, it utilizes auto- negotiation to automatically adjust to the highest supported transfer rate (up to 2Gbps in full duplex mode). Transfer files faster and enjoy smooth network gaming by adding high performance Gigabit wired network connectivity to your desktop PC with the D-Link 10/100/1000 Gigabit Desktop PCI Adapter (DGE-530T).

What's Included With This Item

  • D-Link 10/100/1000 Gigabit Desktop Adapter
  • Standard & Low Profile Mounting Brackets
  • Quick Installation Guide
  • CD-ROM with: Drivers
  • Product Documentation
  • D-Link 2 Years Limited Warranty

Key Features

  • Connect to a Wired Network and Surf the Web with Your Desktop PC
  • Windows Automatically Detects the Adapter for Easy Installation
  • Designed for VoIP, Extreme Gaming, Transferring Music, Video and Large Files
  • Plug-and-Play
  • Supports PCI 2.1/2.2 ACPI Power Management Wake-On-LAN
  • Compliant to PC 99 Standard (Magic Packet, LinkChg and Microsoft wake-up frame)
  • Independent 2KB Receive and Transmit FIFOs
  • Advanced Cable Diagnostics (Windows Utility)
  • Jumbo Frame Support
  • 10/100/1000Mbps Auto-sensing Speeds
  • 2000Mbps Gigabit Full-duplex Support
  • 32-bit Bus Master Operation

Technical Specs

Standards IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3x Flow Control
ANSI/IEEE 802.3 Nway Auto-Negotiation
IEEE 802.1p Priority Tagging
IEEE 802.1q VLANs
PCI Local Bus Master 2.2 Specifications
Universal Bus Support 3.3V
Network Data Transfer Rate Ethernet: 10Mbps (Half-duplex)
Ethernet: 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex)
Fast Ethernet: 200Mbps (Full-duplex)
Gigabit Ethernet: 1000Mbps (Half-duplex)
Gigabit Ethernet: 2000Mbps (Full-duplex)
Drivers Supported Windows Server 2008 (x86/x64), Windows Vista (x86/x64), Windows Server 2003 (x86/x64), Windows XP (x86/x64), Windows 2000, WindowsME, Windows 98SE, Windows NT 4.0
Novell NetWare 4.2, 5.x, 6.x
Linux Kernel 2.2.x, 2.4.x, 2.6.x
DOS ODI Client Driver
Mac OS 10.2x, 10.3x
NDIS 2 Driver
Protocol CSMA/CD
Network Media Ethernet: UTP Cat3, 4, 5 EIA/TIA-568 100-ohm screened twisted-pair (STP)
Fast Ethernet: UTP Cat5, EIA/TIA-568 100-ohm screened twisted-pair (STP)
Network Management SNMPv1
LED Link
Activity
Certifications FCC Class B
CE Class B
C-Tick
BSMI Class B
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 5% to 90% Maximum (Non-condensing)
Minimum System Requirements Computer with: Windows Vista, Windows XP SP2, Windows Server 2008 or Mac OSX(v10.2/v10.3)
CD-ROM Drive
20MB Hard Disk Space
32-Bit PCI Slot
Dimensions (WxDxH) 6" x 4.72" x 1.97"
Weight 0.1 lbs
