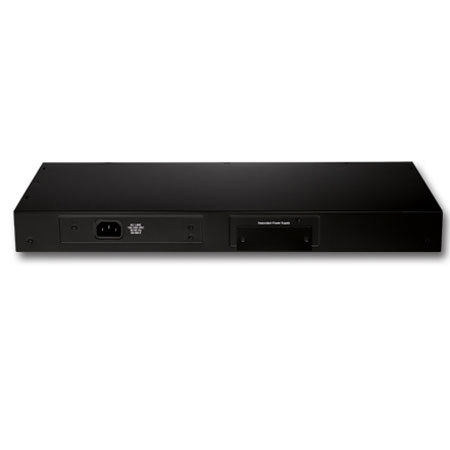

D-Link Redundant Power Supply

D-Link Redundant Power Supply: Picture 1 thumbnail D-Link Redundant Power Supply: Picture 2 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About D-Link Redundant Power Supply

The D-Link Redundant Power Supply keeps your switch online in case of Power Supply failure. The combination of D-Link's fully managed switch line and DPS Series of Redundant Power Supply enables today's business networks with unmatched flexibility, performance, scalability and availability. When paired with a supported D-Link switch, the DPS-700 provides uninterrupted fail-over in the unlikely event of a mechanical power supply failure. Additionally, it supports a 1+1 power budget allowing you to double the PoE budget on supported switches.

D-Link Redundant Power Supply Features

  • 1+1 PoE Budget, allowing you to extend your PoE budget by 370 Watts on supported switches
  • Rack Mountable for ease of installation

D-Link Redundant Power Supply Specifications

Input Voltage Range
90VAC to 264VAC
Input Frequency Range
47 Hz to 63 Hz
Maximum Input Current
7.5A at 115VAC, 60Hz
3.7A at 230VAC, 50Hz
Maximum In-rush Current
30A at 115VAC, 60Hz
30A at 230VAC, 50Hz
Leakage Current
3.5mA max.
Output Voltage
Total Output Power
589 watts
Over Voltage Protection
Trip point: below 16V for +12V output
Auto-recovery mode against short circuit or over load conditions
-59V output below -57V will protect itself against short circuit or over load condition
LED Status
On: RPS good
Off: RPS failed
Operating Temperature
0deg. to 65deg. C
Storage Temperature
-40deg. to 70deg. C
Safety Standards
UL 60950 3rd Edition
CSA 22.2 NO.234
EN 60 950
Safety Approvals
FCC Class B
Dimensions (LxWxH)
196x195x50mm / 7.71x7.67x1.96"
3.7 kg / 8.15 lbs
