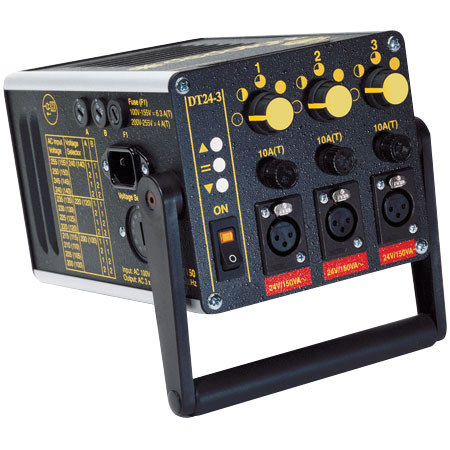

The DT24-3 Power Supply/Control Unit offers the same functions and options as the DT12-4 except that this unit powers three lights, each equipped with 150W lamps at a nominal voltage of 24V.
Its AC power input can be set for every AC power in the world from 100V to 255V in 24 steps.
Each output can be individually and independently switched in four distinct steps, increasing color temperature and light output with each step:
2. Low 3000°K
3. Medium 3200°K (22V at lamp)
4. High 3400°K (24V at lamp)
A voltage indicator allows control of actual input voltage and precise determination of color temperature.
|Weight||11.4 lb. (5.15 kg)|
|Output Voltage||3 x 17.4-24.5VAC|
|Controls||Illuminated master power switch, Fused input and outputs, Switchable input, Switchable outputs|
