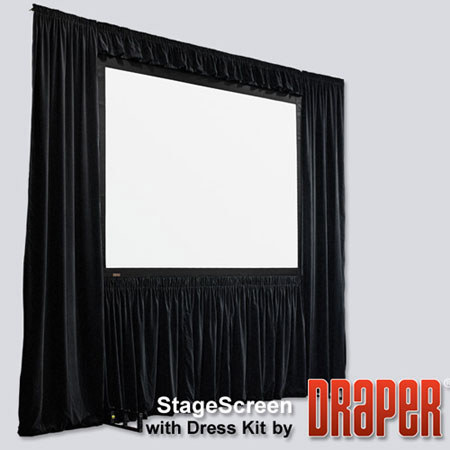

Draper 383498 Stage Screen Portable Projection Screen, Matt White (Black Backed) Surface, Frame & Screen, Black Frame, 108x192", 16:9 Aspect Ratio, 220" Diagonal, HDTV Format

Draper
SKU: DR383498 MFR: 383498
Draper : Picture 1 thumbnail Draper : Picture 2 thumbnail Draper : Picture 3 thumbnail

List Price: $5,169.00

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

39% Off

Our Price

$3,149.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Draper : Picture 1 regular $3,149.95

About Draper

The Draper 108 x 192" Stage Screen Portable Projection Screen is a breakthrough in projection screen technology. It is designed to be flown (suspended) but can be used with an optional set of legs. This is a very strong and rugged screen that is marketed towards AV rental dealers. From a retail point of view, this means not having to maintain a larger inventory of separate screens since this screen can serve a wide variety of uses. From a user point of view, it saves you the cost of purchasing several screens. It is a wonderful choice for an easy-to-use, portable screen that sets up and breaks down in no time and with a minimum of effort.

In its smaller version, it is an excellent choice for point-of-purchase displays while in larger sizes, it serves well in auditoriums, gymnasiums and lecture halls. Draper tests showed it to be over 60% stronger than a traditional folding truss screen. The system is completely modular with optional color coded legs designed for rapid, easy assembly. There are only 6 sections to put together - and if one of the sections becomes damaged, it can be readily replaced without any tools. Various sizes of the screen can be created from those same 6 sections - add a section and build a different size screen. The 8" truss design is considerably stronger than similar systems.

The legs are manufactured with the same kind of sections as the frame itself. The legs are an optional purchase but make the screen an even more viable purchase since it then gives you two options for use - flown or mounted. By purchasing the legs, you'll have a complete system that can be used in just about whatever venue you encounter. The screen surface is held in place by DuraLoops - which are bungee cords with pull-tabs. All you need do is attach the tabs to the frame and you're ready to go. No more need for snaps that can pop out. The screen surface is tensioned and held perfectly flat yielding an undistorted image.

Another "wow" point of this screen is that it can be used as a "Multi-Format" screen by exchanging or removing a few frame sections (separate viewing surface required). In addition to being a flexible system, it also cost-effective since you now have one screen that can serve a variety of formats - without the need to buy different sized screens and legs.

Draper Features

  • Fast and easy assembly using 6 color coded sections - StageScreen can be assembled in about half the time of a comparable truss folding screen - No hinges, no snaps and no Handy Cranks are required
  • Frame sections are connected with permanently attached threaded links and guide pins. No lost handy cranks
  • Use with or without legs - Legs are built using a leg T-section with any standard frame sections, decreasing the need to keep a large inventory. The frame sections that make up the screen frame also make up the leg
  • Fully modular with parts that can be easily replaced - if a frame section should ever become damaged you can replace it in seconds without tools
  • You can change a Multi-format to an NTSC, HDTV, or 16:10 format at minimal cost by exchanging or removing a few frame sections (separate viewing surface required)
  • StageScreen utilizes an 8" (20cm) truss that is significantly stronger than traditional truss folding screens. It is engineered to hold tolerance after repeated usage
  • Draper performed in-house testing of the strength of StageScreen truss compared to a folding truss screen. The results were dramatic: StageScreen proved to be over 60% stronger, holding strong long after the folding truss failed at its weakest spots
  • Screen attaches using Draper's DuraLoop bungee cords - provides self-centering tension for the viewing surface - viewing surface is stretched perfectly flat
  • StageScreen offers exact true formats in 33 standard sizes up to 30 x 40' (9.1 x 12.2 m)/18 x 60' (5.5 x 18.3 m)- no more nominal sizes

Draper Specifications

Style
StageScreen (Surface ONLY)
Front/Rear Projection
Front
Mount
Flown or with optional legs
Tension Control
Tensioned
Diagonal
220" (558.8cm)
Format
HDTV
Aspect Ratio
16:9
Masking Options
You can change a Multiformat to an NTSC, HDTV, or 16:10 format at minimal cost by exchanging or removing a few frame sections (separate viewing surface required)
Material
Aluminum
Image Size
108x192" (274.32x487.68cm)
Overall Size
124.50x208.50" (316.2x529.6cm)
Mfr #
383498
SKU
DR383498
