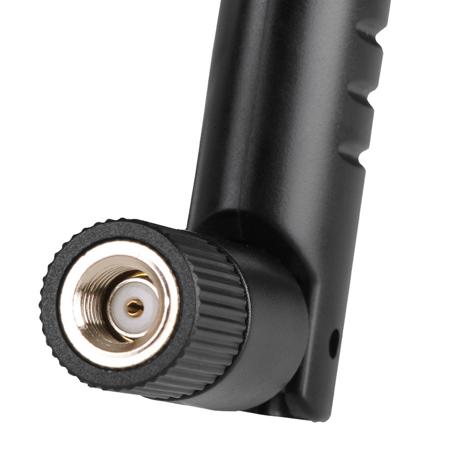

Edimax EA-IO7D V2 Indoor 7dBi Omni-directional Desktop Antenna

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist

About the Edimax EA-IO7D

The Edimax EA-IO7D V2 is a high performance 7dBi omni-directional antenna, designed to improve the wireless network signal and coverage in your home and office.

Edimax EA-IO7D Features

  • Wireless signal and distance improvement: When connected to a wireless access point or router, the EA-IO7D increases the wireless coverage area. The antenna also improves the transmission range when connected to a wireless adaptor
  • 7dBi high gain performance antenna: The antenna is capable of rotating 360deg
  • Universal RP-SMA connector for flexible connections: The antenna is not only compatible with Edimax devices, but also with most wireless devices equipped with a RP-SMA interface
  • Signal transmission in all directions: The antenna is omni-directional so it transmits and receives signals from all directions. It is the best solution for radial coverage
  • No software or driver needed: All you have to do is to unscrew the original antenna from your device and replace it with the EA-IO7D V2. The antenna starts to work as soon as it is put into position

Edimax EA-IO7D Specifications

Hardware Interface 7dBi RP-SMA detachable antenna
RP-SMA connector
Standard & Frequency Band IEEE802.11b/g/n
Peak Gain 7dBi
Polarization HPBW/ horizontal: 360 degrees
HPBW/ vertical: 20 to 25 degrees
Antenna VSWR (Voltage Standing Wave Radio): 2.0: 1 Max
Impedance: 50 Ohms
Power handling 2 W (c w)
Dimensions 13 x 280 mm / 0.51 x 11.02"
