Edimax EA-IO9D Indoor 9dBi Omni-directional Desktop Antenna
See all Edimax items

Edimax EA-IO9D Indoor 9dBi Omni-directional Desktop Antenna

SKU: EDMEAIO9D
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Edimax EA-IO9D Specifications

  • Hardware Interface

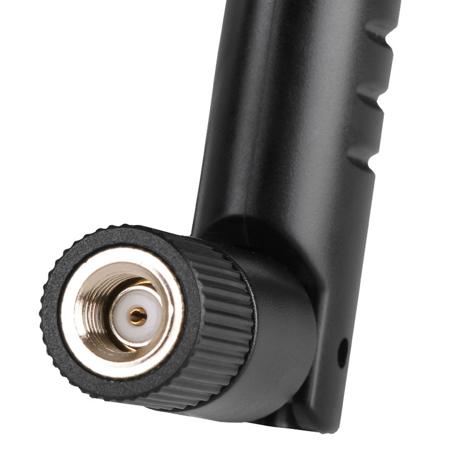

    9dBi RP-SMA detachable antenna
    RP-SMA connector

  • Standard & Frequency Band

    IEEE802.11b/g/n
    2400-2500MHz

  • Peak Gain

    9dBi

  • Polarization

    HPBW/ horizontal: 360 degrees
    HPBW/ vertical: 15 to 20 degrees

  • Antenna

    VSWR (Voltage Standing Wave Radio): 2.0: 1 Max
    Impedance: 50 Ohms
    Power handling 2 W (c w)

  • Dimensions

    13 x 375 mm / 0.51 x 14.76"

  • UPC Code

    649659034037

About Edimax EA-IO9D

The Edimax EA-IO9D is a high performance 9dBi omni-directional antenna, designed to improve the wireless network signal and coverage in your home and office.

Edimax EA-IO9D Features

  • Wireless signal and distance improvement: When connected to a wireless access point or router, the EA-IO9D increases the wireless coverage area. The antenna also improves the transmission range when the antenna is connected to a wireless adaptor
  • 9dBi high gain performance antenna: The antenna is capable of rotating 360deg
  • Universal RP-SMA connector for flexible connections: The antenna is not only compatible with Edimax devices, but also with most wireless devices equipped with a RP-SMA interface
  • Signal transmission in all directions: The antenna is omni-directional so it transmits and receives signals from all directions. It is the best solution for radial coverage
  • No software or driver needed: All you have to do is to unscrew the original antenna from your device and replace it with the EA-IO9D. The antenna starts to work as soon as it is put into position

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wireless signal and distance improvement
  • 9dBi high gain performance antenna
  • Universal RP-SMA connector
  • Signal transmission in all directions
  • No software or driver needed
