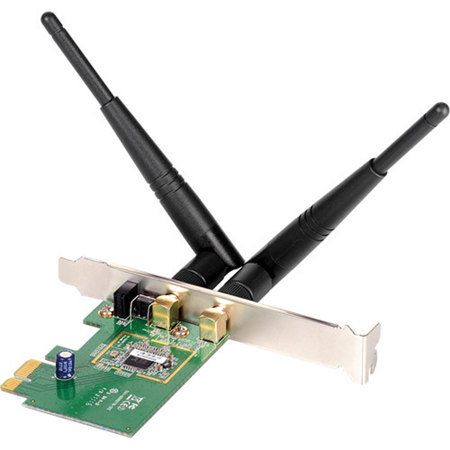

Edimax EW-7612PIN 300Mbps Wireless 802.11b/g/n PCI Express Adapter

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Edimax EW-7612PIN

Edimax EW-7612PIn is a wireless PCI Express adapter that provides a simple and easy way to add or upgrade wireless connectivity to your desktop. This wireless PCI Express adapter supports higher data rates up to 300Mpbs when connected to a wireless 802.11n device. You can also connect to any public wireless hotspot for Internet access to retrieve email, surf web sites or use instant messaging. EW-7612PIn gives you the freedom to join the network.

Edimax EW-7612PIN Features

  • With the latest wireless 802.11n technology, EW-7612PIn can increase coverage up to 4 times more and reduce "dead spots" within the wireless range
  • The EW-7612PIN adapter is specifically designed to carry the full bandwidth capacity of the PCI Express bus of 2.5Gpbs, thus eliminating collisions and latencies that exist with current 32- and 64-bit PCI bus architectures
  • EW-7612PIn supports 64-/128-bit WEP data encryption that protects your wireless network from eavesdropping. It also supports WPA (Wi-Fi Protected Access) features that combine IEEE 802.1x and TKIP (Temporal Key Integrity Protocol) technologies
  • The included 16-language EZmax setup wizard and friendly UI will walk you through configuring EW-7612PIn to your wireless network

Edimax EW-7612PIN Specifications

Hardware Interface
PCI-Express TM Base Specification Rev. 1.1
2 x 3 dbi High-Gain Detachable Antenna(Connector: RP-SMA)
IEEE802.11b, 802.11g, 802.11n
RX Sensitivity
300Mbps Typical -68dBm
54Mbps Typical -73dBm
11Mbps Typical -84dBm
Data Rates
11b: 1/2/5.5/11Mbps
11n (20MHz): up to 72/144Mbps
11n (40MHz): up to 150/300Mbps
Multi-language EZmax Setup Wizard
Operating: 32-104deg.F (0-40deg.C)
Storage: 14-158deg.F (-10-70deg.C)
Wireless Security
WEP 64/128, WPA, WPA2
Software WPS configurations
Operating: 10-90%
Storage: 5-90deg.F (Non-condensing)
System Requirements
Windows XP/Vista/7 and Linux OS
Output Power
11n: 13dBm±1dBm
11g: 14dBm±1dBm
11b: 16dBm±1dBm
65.3 x 43 mm / 2.57 x 1.69"
