Edirol P10 Visual Sampler with NTSC or Pal Video Format
Edirol

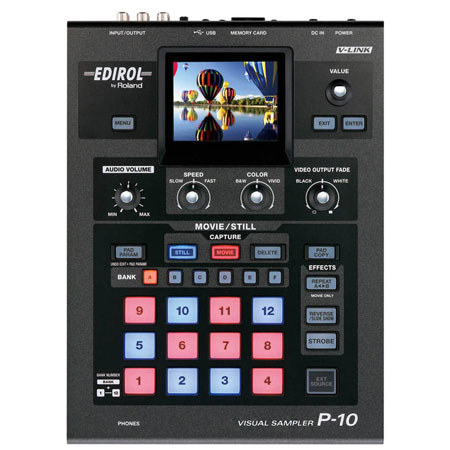

Edirol P-10 Visual Sampler with NTSC or PAL Video Format

SKU: EDP10 MFR: P10
What's Included
What's Included With This Item:
  • Edirol P-10 Visual Sampler
  • Owner's Manual
  • AC Adaptor
  • Power Cord (for AC Adaptor)
  • CD-ROM (P-10 Image Converter)
  • SD Card (1GB)
  • SD Card Holder
  • SD Card Theft Prevention Cover
  • Edirol 1 Year Limited Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$1,295.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Edirol P-10 is one of the popular EDIROL PR Video Presenter Series. The P-10 Visual Sampler is the newest, compact and most affordable offering in the growing lineup of EDIROL visual performance products. Although many presenters and visual artists use computers for their video and still-frame playback, they are limited in accessibility, reliability, control and triggering content.

The P-10 provides a solution to all of these issues in a number of ways. Being equipped with 12 keypads, dedicated knobs and dials, the user has tactile control and accessibility to all their material. The P-10 uses SD and SDHC memory cards for solid state, reliable storage and supports motion jpeg and still jpeg formats. A bright color LCD display enables viewing with no need for an external monitor. Being a dedicated hardware device, the P-10 is very stable and is not susceptible to stuttering, virus or hardware and software compatibility issues inherent with computers.

The P-10 is the ideal solution for corporate presentations, VJ's, clubs, houses of worship and sporting events. The sleek and compact design lends itself to portable applications, as well as permanent installations when size and space are considerations.

What's Included With This Item

  • Edirol P-10 Visual Sampler
  • Owner's Manual
  • AC Adaptor
  • Power Cord (for AC Adaptor)
  • CD-ROM (P-10 Image Converter)
  • SD Card (1GB)
  • SD Card Holder
  • SD Card Theft Prevention Cover
  • Edirol 1 Year Limited Warranty

Key Features

  • Capture video with immediate playback with effects
  • Easy and intuitive operation
  • Both video and stills can be triggered
  • Slide show function to make movies from stills
  • Solid state SD(HC) storage media
  • Remote controllable via V-LINK
  • All in One, Easy to Use: The P-10 is the latest compact visual tool from EDIROL. It is a standalone unit with all the necessary features to create a compelling visual presentation, such as real-time capture, special visual effects and an integrated LCD display.
  • Easily Assign Clips to Pads: Capturing media from various sources (video decks, DVD players, digital cameras, etc) is extremely easy. Video is stored as Motion JPEG and still images as JPEGs. 72 banks with 12 pad sets offer the storage and quick recall of up to 864 clips.
  • Link your Audio & Video with V-LINK: Linking with V-LINK devices is easy. With one simple connection, real-time multi-media performance from a variety of instruments is yours.
  • Play Modes & Effects: Playback modes like Reverse, Strobe or Motion Control provide impressive effects for your audience. Slide Show enables animation from multiple still images.
  • Hi-Speed Data Transfer via USB: Import or export media files via USB. Free software for format conversion is included enabling easy conversion to P-10 compatible video files.
  • Illuminated Pads and Buttons: The sampler-like interface of the P-10 lets you perform visuals as if they were music. Self-lit pad buttons enhance playability on dark stages or at Front of House.

Technical Specs

Video Format NTSC or PAL (selectable)
Movie File Formats Format: Motion JPEG
Size: 640 x 480 pixels
Frame Rate: 29.97 fps (NTSC)25 fps (PAL)
Still Image File Formats Format: JPEG
Size: 640 x 480 pixels
Audio File Formats Format: WAV
Sampling Frequency: 44.1kHz
Sample Size: 16 bit
Recording Media SD (HC) Memory Card
Recording Time 512MB: 7 min.
1GB: 15 min.
2GB: 30 min.
4GB: 60 min.
8GB:120 min.
16GB: 240 min.
Max. No. of Recorded Files When only movies are assigned:864 (72 banks x 12 pads)
When only still images are assigned:86,400 (72 banks x 12 pads100 images)
Movie PlaybackModes Forward Loop Play Back
Alternate Loop Play Back
One Shot Play Back (2 types)
Gate Play Back (2 types)
Image Effects Repeat, Reverse, Strobe, Speed, Color, Output Fade, Slide Show
Pads 12 Pads
Controllers SPEED knob, COLOR knob, VIDEO OUTPUT FADE knob
Display Graphic LCD (color)3.5 inch, TFT, With Backlight
Connecting Jacks Composite Video Input Jack (RCA type)
S-Video Input Jack (4 pin mini-DIN type)
Line Input Jack (L, R) (RCA pin type)
Composite Video Output Jack (RCA pin type)
S-Video Output Jack (4 pin mini-DIN type)
Line Output Jack (L, R) (RCA pin type)
PHONES Jack (standard stereo type)
MIDI Connector (IN, OUT/THRU)
USB Connector (supports storage class)
DC IN Jack
SD (HC) Memory Card Slot
Power Supply DC 9V (AC adaptor)
Current Draw 900 mA
Measurements 8-1/2 (W) x 11-13/16 (D) x 3-5/8 (H) inch
215 (W) x 300 (D) x 91 (H) mm
Weight 4 lbs. 4 oz.(1.9 kg) (without AC adaptor)
Warranty Edirol 1 year limited warranty
