Edirol/Roland V-440 HD Multi-Format Video Mixer
Edirol/Roland

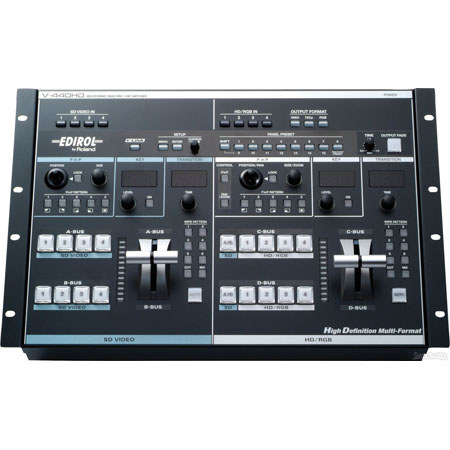

Edirol/Roland V-440 HD Multi-Format Video Mixer, HDTV, HD-15, RGB, Y/C, Composite

SKU: EDV440HD MFR: V-440HD
What's Included
What's Included With This Item:
  • Edirol/Roland V-440 HD Multi-Format Video Mixer
  • Power Cord
  • Edirol/Roland Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$9,995.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Edirol V-440 HD is a powerful, HDTV, RGB video mixer capable of switching between four cameras, graphics or video tape decks during a live performance with smooth transitions and special effects. This device has the capability to input 4 SD video sources and 4 HD or RGB video sources; the V-440HD enables seamless mixing and switching of multi-format video signals.

What's Included With This Item

  • Edirol/Roland V-440 HD Multi-Format Video Mixer
  • Power Cord
  • Edirol/Roland Warranty

Key Features

  • Mix Multiformat Signals: With a single unit allowing images with different aspect ratios (16:9 or 4:3), the V-440HD can also be used as an independent SD mixer or HD/RGB mixer
  • Equipped with High-Performance SD-to-HD/RGB Up-Converter: The V-440HD features an up-converter that converts SD output to the final output format. This system enables up-conversion of SD video to HD and RGB with superior image quality
  • Two-Channel Digital Effects: Add various effects like PinP, 2 Keyers or transitions and this unit becomes the center of all your multi-format video production
  • Memory Function: The V-440's memory function allows the memorization and convenient recall of panel settings, such as effect assignment to each button. The memory stores up to eight configurations and keeps stored settings even with the power off
  • Synchronization with MIDI Equipment: The V-440 features video transitions and effects that can be synchronized with MIDI. The BPM (beat per minute) of transitions and effects can be made to follow the beat of a music track by using the TAP function
  • Choice of Output Format: Selectable output format; 1080i or 720p for HDTV or RGB for computer display
  • Remote Control: V-LINK for control from any Roland/EDIROL musical instruments; RS-232C for computer control

Technical Specs

Video Format SD: NTSC or PAL [CVBS, S (Y/C)]
HD: 1080/59.94i/50i SMPTE274M (Y/Pb/Pr TriLevel Sync), 720/59.94p/50p SMPTE296M (Y/Pb/Pr TriLevel Sync)
RGB Input: 640x480/60/75, 800x600/60/75, 1024x768/60/75, 1280x768/60/75, 1280x1024/6
RGB Output: 640x480/75, 800x600/60/75, 1024x768/60/75, 1280x768/60/75, 1280x1024/60, 1366x768/60/75
RGB VH: positive/negative logic
VESA DMT Version 1.0 Revision 10 conform
Video Sampling Rate SD: 4:2:2 (Y/Cb/Cr) 8-bit 13.5 MHz (BT.601)
HD: 4:4:4 (Y/Pb/Pr) 8-bit 74.1758 MHz / 74.25 MHz
RGB: 4:4:4 (R/G/B) 8-bit 25 MHz to 110 MHz
Video Effects Video Transition: Cut, Mix, Wipe (6 Patterns, Reverse, SoftEdge)
Composition FX: Picture in Picture, Chroma Key (Blue/Green), Luminance Key (White/Black), Picture in Picture with Zoom/Pan (HD/RGB side)
Multi-Screen Presentation: 2 screens x 1 line, 3 screens x 1 line, 2 screens x 2 line, 3 screens x 2 lines
Synchronization Multiple Units by MIDI
Master Fade: 0 to 4 seconds Black or White
SD Input S-Video (Y/C) Preferential x 4: 4 pin mini DIN type (Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms)
Video (composite) x 4: BNC type (1.0 Vp-p, 75 ohms)
HD/RGB Input BNC Type x 4: HD: Y/Pb/Pr (1.0 Vp-p, 75 ohms, TriLevel Sync), RGB:R/G/B (0.7 Vp-p, 75 ohms), H (5VTTL), V (5VTTL)
D-SUB 15pin Shrink Type x 4: HD: Y/Pb/Pr (1.0 Vp-p, 75 ohms, TriLevel Sync, RGB:R/G/B (0.7 Vp-p, 75 ohms), H (5VTTL), V (5VTTL)
SD Output PGM S-Video (Y/C): 4-pin mini DIN type (Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms)
PGM Video (composite): BNC type (1.0 Vp-p, 75 ohms)
Preview (composite): BNC type (1.0 Vp-p, 75 ohms), OSD Menu Output
HD Output PGM RGB: D-sub 15 pin Shrink Type x 2 (R/G/B 0.7 Vp-p, 75 ohms, 5 VTTL Sync)
Preview RGB D-sub 15 pin Shrink type (0.7 Vp-p, 75 ohms, 5 VTTL Sync), OSD Menu Output (selectable Display)
Remote Control Interfaces MIDI 5 pin DIN Type (In, Out/Thru)
REMOTE terminal (RS-232C D-sub 9pin
Tally Output For SD Section D-sub 15 pin Shrink type, Input (max): 12 V, 200 mA Open collector Type
For HD Section D-sub 15 pin Shrink type, Input (max): 12 V, 200 mA Open collector Type
Power Supply AC 117 V, AC 230 V, AC 240 V (50/60 Hz), AC 220 V (60 Hz)
Power Consumption 50W
Dimensions (W x H x D) 19 x 5-1/8 x 12-1/8 inches / 482 x 130 x 308 mm
Weight 15 lbs. / 6.8 kg
