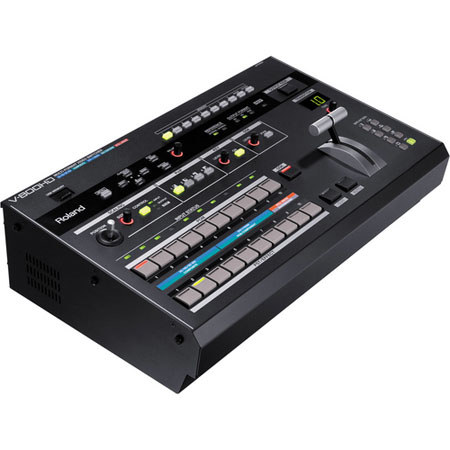

Edirol/Roland V-800HD Multi-Format Video Switcher,

See all Edirol/Roland items
Edirol/Roland V-800HD: Picture 1 thumbnail Edirol/Roland V-800HD: Picture 2 thumbnail Edirol/Roland V-800HD: Picture 3 thumbnail Edirol/Roland V-800HD: Picture 4 thumbnail Edirol/Roland V-800HD: Picture 5 thumbnail Edirol/Roland V-800HD: Picture 6 thumbnail Edirol/Roland V-800HD: Picture 7 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Edirol/Roland V-800HD

The Roland V-800HD Multi-Format Video Switcher is ideal for any live event or installation that requires the freedom to connect any type of source whether it be digital or analog, computer or video format.

Just like the design of the popular Roland V-1600HD switcher the V-800HD is a true multi-format video mixer meaning there is no need to match input sources to the output resolution. Every input has it's own broadcast quality scaler that can individually scale, stretch, crop and zoom each source as required to fit any output resolution chosen.

The V-800HD is HDCP compatible and also features a built-in multi-viewer output that provides a convenient monitoring solution when connected to an HDMI monitor. The eight mixing channels provide connectivity to 3G/HD/SD-SDI, DVI-A/DVI-D/HDMI, RGB, component and composite formats - as well as an additional two channels for still images assignable via USB memory stick or frame grab. A newly developed key-compositing engine lets you adjust phase range, amount of chroma and HSV color space parameters. Another key compositing feature includes an external keyer enabling CG titles and gradation clips, enabling impressive visual effects.

Assignable video cross-points allow reordering channel buttons which is especially useful when sudden changes in camera lines or differences in formats create blank spaces between select buttons on the bus. A dedicated composite output enables a down-converted SD signal that is always ready to use for archiving to a DVD recorder or to an encoder for streaming.

The Multi-Zoom feature can be enabled when one video input is shared internally with up to three more inputs - essentially daisy-chaining it. The scaler for each input can zoom into any position in the video image giving the appearance that additional cameras are connected - creating a virtual multi-camera environment. Additional effects include a down stream keyer (DSK), a composite keyer, Picture-in-Picture and multiple transitions.

The V-800HD supports an incredible variety of system design and creative production options for live or fixed installation applications. It is adept and handling LED wall sizing challenges and is ideal for any live event or installation demanding flexibility, stability, high quality, ease of use and professional connectivity. With video output resolutions up to 1080/60p, 4:4:4/10-bit processing and support for 3G SDI input resolutions; the highest quality video is achieved. The V-800HD Video Mixer strengthens Roland's Multi-format video mixer line-up and is positioned to the pinnacle of quality video production for live event, broadcast, corporate, educational and house of worship applications.

Edirol/Roland V-800HD Features

  • Stellar Image Quality at 1080p (3G-SDI): Supports 1080p video signals at bit rates as high as 3 Gbps - twice the rate of conventional HD. Asserts all the vividness of high-realism, high-detail camera and computer sources
  • True Multi-format Performance: There's no need to convert the input source to match the video output format. The built-in scalers up-convert and down-convert any video source to the optimal resolution. Freely switch between 1080p video that surpasses even broadcast quality
  • Full Range of Connectivity: The V-800HD supports a large number of input formats, from analog to digital, with all the necessary connectors. The SDI connectors accommodate 3G, HD and SD. The DVI-I connectors pull full duty for DVI-D, DVI-A and even HDMI using a simple HDMI/DVI adapter
  • 4:4:4/10-bit Internal Processing: The V-800HD uses 4:4:4/10-bit internal signal processing. This lets you achieve compositing and output with no reduction in high-detail RGB signals driven from a computer. The result is a sharp, unblurred display of video and text, even on large screens
  • Newly Developed Key-compositing Engine: Along with the upgraded internal signal processing, a newly developed keyer is included. Chroma Key lets you adjust phase range, amount of chroma and other parameters based on HSV color space that is closely related to human chromatic sensation
  • Multiviewer Output for Source Monitoring: The multiviewer output allows you to monitor the status of all input sources plus the Program and Preview outputs. The convenient HDMI connector enables the use of a readily available and affordable monitor
  • Built-in HDCP Mode: When playing back a Blu-ray disc that contains commercial content or digital broadcast programming, the digital output is encoded using HDCP (High-bandwidth Digital Content Protection), which is one means of copyright protection

Edirol/Roland V-800HD Specifications

Y:Pb:Pr, 4:4:4, 10-bit
Supported Formats: Video
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
Supported Formats: PC 1
640 x 480/60Hz , 800 x 600/60Hz , 1024 x 768/60Hz , 1280 x 768/60Hz , 1280 x 1024/60Hz , 1366 x 768/60Hz , 1400 x 1050/60Hz , 1600 x 1200/60Hz, 1920x1080/60 Hz, 1920 x 1200/60Hz
Supported Formats: Still Image
Windows Bitmap File (.bmp), Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed
Input/Output Level and Impedance
Composite: 1.0 Vp-p, 75 ohms
Analog HD/RGB: 0.7 Vp-p, 75 ohms (H, V: 5 VTTL)
Input Connectors
SDI (3G/HD/SD): BNC type x 4
DVI-I/HDMI: DVI-I type x 4
Analog Video HD: Component (Mini D-Sub 15 pin type) x 4 Combined use with Analog RGB
Analog Video SD: Composite (BNC type) x 4
Analog RGB: Mini D-Sub 15 pin type x 4
Combined use with Analog HD (Component)
Output Connectors
SDI (3G/HD/SD): BNC type x 2
DVI-D/HDMI: DVI-D type x 2 HDMI x 1 (for multi-view monitor)
Analog Video HD: Component (Mini D-Sub 15 pin type) x 4
Analog Video SD: Composite (BNC type) x 1
Analog RGB: Mini D-Sub 15 pin type x 1
Other Connectors
Tally: Mini D-Sub 15 pin type x 2; Input (max): 12V, 200 mA Open collector Type
Reference: BNC type (IN, THRU); Black Burst (Sync to frames), Bi-Level, Tri-Level
MIDI: 5 pin DIN type (IN, OUT/THRU)
D-Sub 9 pin type x 1
USB port (host): A type x 1 (for USB memory)
Transition: Cut, Mix, Wipe (9 patterns)
Composition: PinP, DSK, Chroma Key, Luminance Key, External Key
Others: Output Fade, Output Freeze
Power Supply
AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption
75 W
Dimensions (W x D x H)
19 x 10-13/16 x 4-10/16" / 482.6 x 274.63 x 117.47mm
5.5 kg / 12 lbs. 3 oz.
