Item Includes
Owner's Manual, Rubber Foot x 4, Power Cord
|

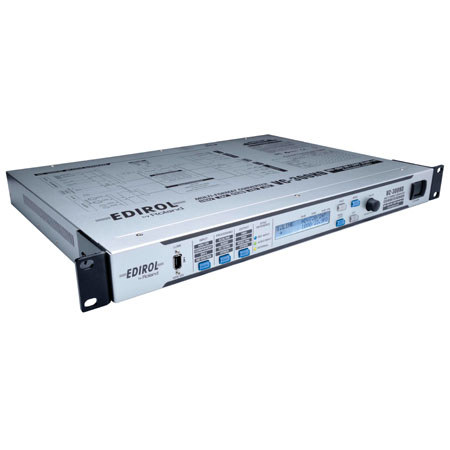

Description
Designed for the Highest Quality Image:
· The VC Series uses high quality A/D and D/A converters for input and output along with internal 4:4:4 10 bit signal processing. From simple format conversion to MPEG encode/decode to complex frame rate conversions, the VC Series delivers professional results.
Compatible with HDV devices:
· Compatible with wide variety of HDV cameras and VTR's from Sony, Canon and JVC, the VC Series offers a high quality processor for encoding and decoding HDV in real-time. EDIROL's audio technology also makes simultaneous processing of the audio signal possible.
Supports 24p Frame Rates:
· Cinema frame rates like 24p and 23.98p are now supported to enable conversion offootage shot with a variety of cameras. Supported frame rates vary depending on Input/Output terminals.
4-Point Gamma Correction:
· The newly added 4 points Gamma Correct function enables adjustment of bright/dark part independently. Enhances images to have a more film-like color.
Image Quality:
· Carefully optimized algorithm of the built-in scaler has resulted in further improvements in the the image quality of the VC. Highly accurate processing is achieved in all types of conversion - up, down and cross conversion.
SDI Thru Output Function*(* VC-300HD only);
· You can select the SDI (HD/SD) output to be pre-processor or post-processor. This enables a monitor output or split output capability
Copy Protection on i.LINK output:
· You can add CGMS-D (Copy Generation Management System - Digital) to the output signal. This enables limitation to copy of digital content.
Remote Control:
· You can now remotely control parameter setup of the VC from external devices, like a PC, via RS-422A Remote Terminal. This can be also used for parameter data backup.
User Presets:
· Parameters like input signal, conversion or processing can be saved to an internal memory. Up to 3 presets can be saved and enables convenient recall.
Auto format detection and simultaneous output from multiple terminals:
· The VC 300HD/VC-200HD features automatic detection of the input source & simultaneous output of the converted signal to multiple terminals such as SDI, IEEE 1394, DVI and analog component. This enables the recording or display of a single source to multiple recording devices or displays.
Bi-directional conversion and scaling:
· Bi-directional conversion of different formats including 59.94p, 50i, etc. are possible with the VC Series. Multiple resolutions like 480i/p,720p or 1080i can be input/output along with NTSC/PAL conversion.
Gen lock with external devices:
· The input and output to and from the VC series can be gen-locked with external devices. The VC supports variety of sync signals including analog BB,Bi-level(SD) or Tri-level (HD). The VC Series built-in frame synchronizer helps to lock signals from consumer products or computers. |
Features
 |
Designed for the Highest Quality Image |
|
Compatible with HDV devices |
|
Supports 24p Frame Rates |
|
4-Point Gamma Correction |
|
Image Quality |
|
SDI Thru Output Function* |
|
Copy Protection on i.LINK output |
|
Remote Control |
|
User Presets |
|
Auto format detection and simultaneous output from multiple terminals |
|
Bi-directional conversion and scaling |
|
Gen lock with external devices |
|
Time code and embedded audio |
|
When performing HD-SDI/SDI <> HDV/DV conversion, the VC Series can pass the original time code and audio stream signals |
|
The audio embedded in the HD-SDI orSDI signal can be separated and sent from the analog outputs. |
|
The VC Series can embed audio from the analog inputs to the HD-SDI/SDI or HDV/DV signal |
|
Audio Delay Function |
|
Audio can be precisely delayed by milliseconds or frames to compensate for the video delay caused by frame synchronizing or conversion processing |
|
The Audio Delay function makes the perfect lip sync possible |
Specifications
| Video Input |
| IEEE1394 | HDV:
1080/59.94i, 1080/50i, 1080/30p, 1080/25p, 1080/24p, 720/59.94p, 720/50p, 720/30p, 720/25p, 720/24p
DV:
480/60p, 480/59.94i, 480/24p, 576/50p, 576/50i |
| Component | Y/Pb/Pr:
1080/60i, 1080/59.94i, 1080/50i, 1080/24PsF, 1080/23.98PsF, 720/60p, 720/59.94p, 720/50p, 480/59.94i, 576/50p, 480/59.94i, 576/50i |
| DVI-I (Digital RGB) | 1600x1200/60Hz, 1400x1050/60/75Hz, 1366x768/60Hz, 1280x1024/60/75Hz, 1280x768/60Hz, 1280x960/60Hz, 1152x864/75Hz, 1024x768/60/75Hz, 800x600/60/75Hz, 640x480/60/75Hz, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.95p, 720/50p |
| DVI-I (Analog) | 1024x768/60Hz, 800x600/60/75Hz, 640x480/60/75Hz Unofficially, when DVI-A In is set to Auto, the VC may be able to lock to 1024x768/70Hz, 1024x768/75Hz, 1024x768/85Hz, 1280x768/60Hz, 1360x768/60Hz |
| SDI* HD | 1080/60i, 1080/59.94i, 1080/50i, 1080/30PsF, 1080/30p, 1080/29.97PsF, 1080/25PsF, 1080/25p, 1080/24PsF, 1080/24p, 1080/23.98PsF, 1080/23.98p, 720/60p,720/59.94p, 720/50p, 720/29.97p, 720/25p, 720/24p, 720/23.98p |
| SDI* HD | Pulldown: 1080/24p (over 60i), 1080/23.98p (over 59.94i), 720/30p (over 60p), 720/29.97p (over 59.94i), 720/24p (over 60p), 720/24p (over 60i), 720/23.98p (over 59.94p), 720/23.98p (over 59.95i), 720/25p (over 50p) |
| SDI* SD | 480/59.94i, 576/50i
Pulldown: 480/23.98p (over 59.94i) |
| Video Sampling Rate | SD:
4:4:4 (Y/Cb/Cr), 10 bits, 13.5 MHz
HD:
4:4:4 (Y/Cb/Cr), 10 bits, 74.1758 MHz/74.25 MHz
RGB:
4:4:4 (R/G/B), 10 bits, 25 MHz to 90 MHz |
| Video Output |
| IEEE1394 | HDV:
1080/59.94i, 1080/50i, 1080/30p, 1080/25p, 1080/24F, 1080/24p, 720/59.94p, 720/50p
DV:
480/59.94i, 576/50i |
| Component | Y/Pb/Pr:
1080/60p, 1080/60i, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/30PsF, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/24p (over 60i), 1080/23.98PsF, 1080/23.98p (over 59.94i), 720/60p, 720/59.94p, 720/50p, 720/30p (over 60p), 720/29.97p (over 59.94p), 720/25p (over 50p), 720/24p (over 60p), 720/23.98p (over 59.94p), 480/59.94p, 576/50p, 480/59.94i, 576/50i |
| DVI-I Digital (RGB) | 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 480p/59.94, 576p/50, 480i/59.94, 576i/50) |
| DVI-I Analog (Y/Pb/Pr) | 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 480/59.94p, 576/50p, 480/59.94i, 576/50i |
| SDI* | HD:
1080/60i, 1080/59.94i, 1080/50i, 1080/30PsF, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/24p (over 60i), 1080/23.98PsF, 1080/23.98 (over 59.94i), 720/60p, 720/59.94p, 720/50p, 720/30p (over 60p), 720/29.97p (over 59.94p), 720/25p (over 50p), 720/24p (over 60p), 720/23.98p (over 59.94p)
SD:
480/59.94i, 576/50i |
| Audio Input |
| IEEE1394 | HDV:
MPEG1 Layer II 16bit, 48Khz, 384kbps
DV:
Linear PCM 16bit 48kHz Nonlinear PCM 12bit 32kHz(2ch) |
| Analog | Balanced XLR (ch1, ch2): +4dBu, -2dBu, -4dBu, -10 dBu (selectable)
Unbalanced RCA (ch3, ch4): +0dBu, -6dBu, -8 dBu, -14 dBu (selectable)
Audio Sampling Rate: 24 bit, 48kHz, 32 kHz |
| HD-SDI/SDI Embedded Audio | Linear PCM 24bit 48kHz |
| Audio Output |
| EEE1394 | HDV:
MPEG1 Layer II 16bit, 48Khz, 384kbps
DV:
Linear PCM 16bit, 48kHz Nonlinear PCM 12bit 32kHz (2ch) |
| Analog | Balanced XLR (ch1, ch2): +4dBu, -2dBu, -4dBu, -10 dBu (selectable)
Unbalanced RCA (ch3, ch4): +0dBu, -6dBu, -8 dBu, -14 dBu (selectable)
Audio Sampling Rate: 24 bit, 48kHz, 32 kHz |
| HD-SDI/SDI Embedded Audio | Linear PCM 24bit, 48kHz |
| Video/Audio Processing |
| Scaling | Scaling between the specfied input and output |
| Frame Sync | Built in frame synchronizer and genlock to external device |
| Frame Rate Conversion | from 59.94 to 50Hz etc |
| I/P Conversion | De-interlace function built-in |
| Audio Processing | Delay: Adjustment with Milli-Second or Frame, Sample Rate Conversion: from 32 to 48kHz etc. |
| Connectors |
| Component Input | BNC Type:
HD/SD: Y/Pb/Pr (75 ohms), Bi-Level, Tri-Level Sync |
| DVI-I Input | DVI 29-pin single link:
RGB (8 bit each)
Digital RGB dot clock: 25-161MHz (VGA to UXGA)
Analog RGB: R/G/B 0.7Vp-p, 75 ohms, H/V 5VTTL
RGB dot clock: 25-90MHz (VGA to XGA) |
| HD-SDI/SDI Input | BNC Type:
Supports embedded audio
Conforms to SMPTE259M, SMPTE272M, SMPTE292M, SMPTE299M |
| HDV/DV in/out | IEEE 1394 6-pin:
Conforms to IEEE1394, HDV standards.
Same connector on front and rear. |
| Component Output | BNC Type:
HD/SD: Y/Pb/Pr (75 ohms), Bi-Level, Tri-Level Sync |
| DVI-I Output | DVI 29-pin single link:
RGB (8 bit each)
Digital RGB: same timing as analog component
Analog Component: Y/Pb/Pr (75 ohms) |
| HD-SDI/SDI Output* | BNC Type:
Supports embedded audio
Conforms to SMPTE259M, SMPTE272M, SMPTE292M, SMPTE299M |
| Ref Input | BNC Type:
Black Burst, Bi-Level, Tri-Level sync |
| Ref Output | BNC Type:
Loop Thru Output |
| Audio Connectors |
| Input CH1, CH2 | XLR Type: 20 k ohms |
| Input CH3, CH4 | RCA Phono: 20 k ohms |
| Output CH1, CH2 | XLR Type: 600 ohms |
| Output CH3, CH4 | RCA Phono: 1 k ohms |
| Miscellaneous |
| Display | Character Type LCD: 20 characters, 2 lines (backlit LCD) |
| Power Supply | AC 117V, AC 230V, AC 240V (50/60Hz), AC 220 V (60Hz) |
| Power Consumption | 60 W |
| Dimensions | Width:
19" (16-15/16" without rackmount bracket) 482 mm (430 without rackmount bracket) (EIA-1U Rack Mount Size)
Depth:
12-13/16" 309 mm
Height:
1-3/4" 44 mm |
| | |
|
