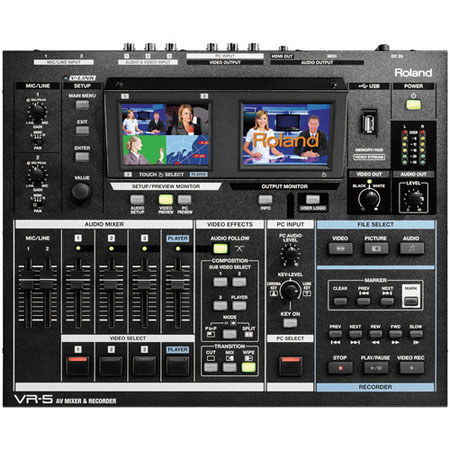

Edirol/Roland VR-5 AV Mixer and Recorder
Edirol/Roland

Edirol/Roland VR-5 AV Mixer and Recorder

SKU: EDVR5 MFR: VR-5
What's Included
What's Included With This Item:
  • Edirol/Roland VR-5 AV Mixer and Recorder
  • AC Adaptor and Power Cord
  • SD Card
  • 4 x RCA-BNC Conversion Plug
  • USB Cable
  • User Manual
  • Edirol/Roland Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$4,995.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Edirol/Roland VR-5 AV Mixer & Recorder is a soup-to-nuts device that includes a video switcher, audio mixer, recorder and preview monitors and provides video playback and output for web streaming. Featuring minimal hardware, an easy connection and a quick set up, it is ideal for school meetings, churches, council meetings, panels and corporate events.

Equipped with a 5-Channel Video Switcher, the VR-5 AV Mixer & Recorder can support up to 3 video sources, PC input video playback, 2 mono and 5 stereo mixable audio channels. The built-in scan converter allows you to adjust the vertical and horizontal scan frequency of video signal. You can select the video sources and PinP position changes with the help of dual touch-screen LCD monitors (program and preview monitors).

Alternatively, the dedicated video buttons can also be used for selecting a video source. It also has options for selecting transition effects such as Picture-in-Picture and Split. The sound from the sources can be monitored using headphones. Provided with 2 mono and 5 stereo audio inputs, the VR-5 AV Mixer & Recorder offers full digital audio processing and produces high-quality sound with effects such as "Noise Gate" for reducing background noise and a "Mastering Tool" to ensure consistent output volume.

The "Audio Follow" function enables the audio to fade from one source to another as the video source changes. With a built-in recorder, you can record the final output of the VR-5 to an SD memory card. The 4 GB SD card allows you to record videos up to 4 hours. Equipped with MPEG-4 capture format, the VR-5 AV Mixer & Recorder allows easy sharing of recorded videos and offers playback of videos, still images and audio files.

You can connect the mixer to a PC via a USB port and enable live streaming of videos. With Video Out and Audio Out knobs, you can enable independent video and audio fade-in/out Levels. The User Logo button adds a stored image such as a company logo, show name, or conference title to the displayed video. With a single knob, you can add advanced video compositions such as placing a person or a text over a background video source. The PC to the RGB with a single knob connector allows you to use the VR-5 AV Mixer & Recorder for various applications such as presentations, slide shows and movie playback.

What's Included With This Item

  • Edirol/Roland VR-5 AV Mixer and Recorder
  • AC Adaptor and Power Cord
  • SD Card
  • 4 x RCA-BNC Conversion Plug
  • USB Cable
  • User Manual
  • Edirol/Roland Warranty

Key Features

  • Connect to a PC via USB: Simply connect like a Web camera to enable easy live streaming
  • Intuitive operation with Dual Touch Monitors: The Program and Preview monitors are operated by touching the screen such as when selecting video sources and PinP position changes. The sound from the sources can be monitored using headphones
  • Simple video compositing: In addition to Transition effects, Picture in Picture (PinP) and SPLITare also available. Simply select an effect and the respective video sources
  • Control transparency with a single knob: Advanced video composition such as placing a person or text over a background video source can be fine-tuned using a single knob
  • Audio and video from a PC: Connect a PC to the RGB connector for various applications such as presentation, slide shows and movie playback
  • Full digital audio mixing: Two mono and five stereo audio inputs (total of 12Ch) are mixed with full digital audio processing. This results in a high quality sound with effects such as "Noise Gate" for reducing background noise and a "Mastering Tool" to ensure consistent output volume
  • Record to SD memory card: The built-in recorder can record the final output of the VR-5 to SD memory card. Up to four hours of recording is possible when using a 4GB card. The MPEG-4 capture format enables easy sharing of recorded video
  • VR-5 Image Converter: Software for preparing data to be played back from the VR-5 will be available from this website. Supported Formats: AVI, MPG, MOV, WMV, MP4, DV
  • Output controls: VIDEO OUT and AUDIO OUT knobs enable independent video and audio fade-in/out levels. Press the "USER LOGO" button to display a stored image such as company logo, show name or conference title

Technical Specs

Video Format [Video] NTSC or PAL (ITU601)
[PC-RGB] 640 x 480/120 Hz, 800 x 600/120 Hz, 832 x 624/75 Hz, 1024 x 768/80 Hz, 1152 x 864/80 Hz, 1152 x 870/75 Hz, 1280 x 1024/75 Hz, 1600 x 1200/60 Hz (RGB VH: positive/negative logic)
Video Sampling Rate [Video] 4:2:2 (Y:B-Y:R-Y), 8 bits, 13.5 MHz
Frame Synchronizer 5 systems
Input Level and Impedance [Video (composite)] 1.0 Vp-p, 75 ohms
[S-video] Luminance signal: 1.0 Vp-p, 75 ohms
Chrominance signal: 0.286 Vp-p, 75 ohms (NTSC) /0.3 Vp-p, 75 ohms (PAL)
[PC-RGB] 0.7 Vp-p, 75 ohms (H, V: 5 V TTL)
Output Level and Impedance [Video (composite)] 1.0 Vp-p, 75 ohms
[S-video] Luminance signal: 1.0 Vp-p, 75 ohms
Chrominance signal: 0.286 Vp-p, 75 ohms (NTSC) /0.3 Vp-p, 75 ohms (PAL)
Connectors [Input] Video (composite): BNC type x 3, S-video: 4-pin mini DIN type x 3
PC-RGB: D-Sub 15-pin Shrink type x 1
[Output] Video (composite): BNC type x 2, S-video: 4-pin mini DIN type x 2
[Preview Output] Video (composite): BNC type x 1
Internal Processing Sample Rate: 24-bit/48.0 kHz
Input Level [AUX AUDIO INPUT] +4 dBu to -62 dBu (variable) Max: +22 dBu
[Channel 1/2/3] -10 dBu Max: +8 dBu [PC AUDIO] -15 dBu Max: +3 dBu
Input Impedance [AUX AUDIO INPUT] XLR type: 4 k ohms, TRS phone type: 6 k ohms
[Channel 1/2/3 and PC AUDIO] 15 k ohms
Input Connectors [AUX AUDIO INPUT] XLR-3-31 type (balanced, phantom power), 1/4 inch TRS phone type (balanced/unbalanced)
[Channel 1/2/3] RCA phono type [PC AUDIO] Stereo miniature type
Output Level [AUDIO OUTPUT] -10 Output Level dBu Max: +8 dBu [PHONES] 50 mW + 50 mW
Output Impedance [AUDIO OUTPUT] XLR type: 600 ohms, TRS phone type: 1 k ohms
[PHONES] 10 ohms
Output Connectors [AUDIO OUTPUT] XLR-3-32 type (balanced), RCA phono type
[PHONES] Stereo 1/4 inch phone type
Recording Format [Format] MP4 (.mp4)
Video Codec: MPEG-4 Visual
Audio Codec: MP3 (MPEG-1 Audio Layer-3)
Bit Rate 2 Mbps, 4 Mbps, 6 Mbps
Media SD Memory Card (1 to 2 GByte)
SDHC Memory Card (Max 32 GByte), Class 4 or greater
File System FAT32 (Max file size of 4 GByte)
Movie Size [TV Size] NTSC (720 x 480)
PAL (720 x 576)
Max Recording Time Recorded file is up to 4 Gbyte
Bit Rate at 2 Mbps: approximately 4 hours/4 GByte
Bit Rate at 4 Mbps: approximately 2 hours/4 GByte
Bit Rate at 6 Mbps: approximately 80 minutes/4 Gbyte
Supported Playback [Video File Format] .MP4, .AVI
Video Codec: MPEG-4 Visual
Audio Codec: MP3 (MPEG-1 Audio Layer-3)
[Audio File Format] .WAV, .MP3
[Picture File Format] .BMP, .JPG
HDMI Connector [Resolution] Setup to NTSC: 480p
Setup to PAL: 576p
OUTPUT or PREVIEW OUTPUT
USB A Type Connector For USB Storage device
For USB Video Stream output (Support UVC/UAC)
USB 2.0 High-Speed
Remote Control Interfaces MIDI IN: 5-pin DIN type x 1 jack
MIDI OUT/THRU: 5-pin DIN type x 1 jack
Transition Effects Switcher: Cut, Mix, Hard edge wipe, Soft edge wipe
DSK: Cut, Mix
Video Effects Luminance key, Chroma key, Picture-in-picture, Split
Power Supply DC 12 V (AC Adaptor: PSB-7U)
Current Draw 3 A (AC Adaptor: PSB-7U)
Dimensions (W x D x H) 376 x 314 x 133 mm / 14-13/16 x 12-3/8 x 5-1/4 inches
Weight 4.3 kg, 9 lbs 8 oz (without AC Adaptor)
