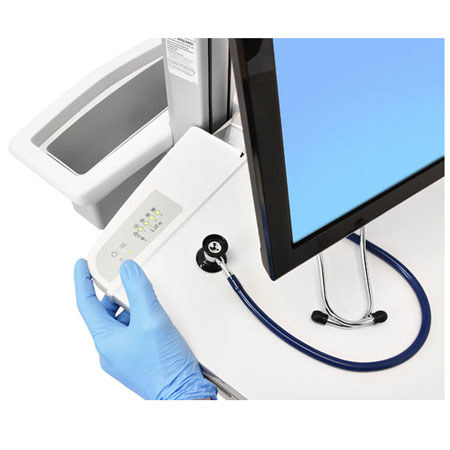

Ergotron StyleView EMR LCD Cart with LCD Pivot, LiFe Powered, 120V/60Hz, NEMA 5-15P Hospital Grade

SKU: EGTSV4263021 MFR: SV42-6302-1
Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2-3 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Shipping
Add to Wishlist

About the Ergotron StyleView EMR LCD Cart

Stay productive and on the go with the LiFe power system. Ergotron StyleView EMR LCD Cart with LCD Pivot (LiFe Powered) is an innovative, truly ergonomic and easy-to-maneuver healthcare that features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray. LiFe makes the cart extremely lightweight and easy to move. The Ultrafast recharge ensures caregiver and cart uptime: A full recharge from full discharge can be completed in about two hours. For patient and caregiver safety, the LiFe power module is fully certified to UL 60601-1; full power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A. The StyleView's small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas.

Ergotron StyleView EMR LCD Cart Includes

  • Ergotron StyleView EMR LCD Cart
  • LCD Pivot
  • Worksurface
  • Secure CPU Compartment
  • 4 x Port USB Hub
  • Scanner Holder Bracket
  • Mouse Holder
  • Wrist Rest
  • Back-Tilt Keyboard Tray
  • Left/right Mouse Tray
  • Keyboard Lights
  • Rear Handle
  • Storage Basket
  • Cable Storage
  • 4 x Casters (Lockable)
  • Single-Battery 40Ah LiFe Power System
  • 10' (3m) Coiled Cord
  • 3 x AC Outlets
  • Power System User Interface
  • StyleLink Software
  • Ergotron 5 Years Warranty

Ergotron StyleView EMR LCD Cart Features

  • Passes Ergotron's 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment
  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry-avoid repetitive-stress injuries while increasing comfort and productivity
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
  • Actual cart weight is 97 lbs (44.1 kg), making system relocation easy
  • Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC
  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
  • For patient and caregiver safety the entire power system as well as the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90. Also complies with EMI limits of FCC Part 15 Class A
  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
  • Large smooth worksurface; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
  • CPU lock provided inside the storage compartment for additional security
  • Designed to meet guidelines established by the American National Standards Institute for computer use
  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface
  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
  • TAA (Trade Agreements Act) compliant
  • Three-receptacle power strip located in the CPU storage compartment (North American carts) or in the base (EMEA & APAC carts)
  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability (International LiFe Carts include four locking casters)

Ergotron StyleView EMR LCD Cart Specifications

Screen Size ëñ 22" / 55.88cm
Load Capacity ëñ 31lbs / 14.06kg
Lift 25" / 63.5cm
Tilt 25deg.
Pan 24deg.
Rotation 90deg. P/L (Portrait screen orientation may be incompatible with widescreen displays > 19")
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
VAC 120V/60Hz
Grounded Plug NEMA 5-15P Hospital Grade
Dimensions Wheel-to-Wheel Base: 15.5x17" / 39.37x43.18cm
Worksurface: 22.4x19.75" / 56.89x50.16cm
Storage compartment: 17.75x14.75x3.75" / 45.08x37.46x9.52cm
