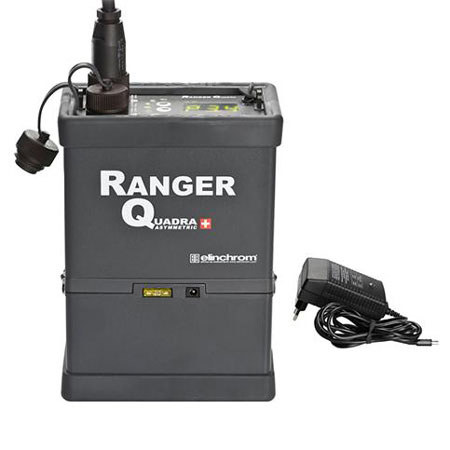

Elinchrom Ranger Quadra AS with Battery & Charger EL10261.1

Elinchrom
SKU: EL102611 MFR: EL 10261.1
Elinchrom Ranger Quadra AS: Picture 1 thumbnail Elinchrom Ranger Quadra AS: Picture 2 thumbnail Elinchrom Ranger Quadra AS: Picture 3 thumbnail Elinchrom Ranger Quadra AS: Picture 4 thumbnail Elinchrom Ranger Quadra AS: Picture 5 thumbnail

About Elinchrom Ranger Quadra AS

The Ranger Quadra AS is a compact portable 400 Ws battery flash system for studio and outdoor use. A perfect battery flash system for anybody who like un-plugged (not connected to the mains) photography. The RQ System offers "Action Freezing" flashduration with fast flash recycling time and also un-plugged (wireless) trigger and remote options.

Elinchrom Ranger Quadra AS Features

  • EL-SKYPORT (inside) Radio remote control of POWER SETTINGS and FLASH TRIGGER.
  • INTELLIGENT FLASH POWER OPTIONS Two outlets Asymmetric 2 : 1 ratio. - Single high power channel. - Single superfast flash channel.
  • INTELLIGENT SLAVE CELL Red eye pre-flash auto-detect. - Programmable and pre-set effect modes.

Elinchrom Ranger Quadra AS Specifications

Power (Watt Seconds)
8.2 - 400 Ws
Recycling Time
2.2 seconds, full power, fast
Power Range
6.6 f-stop range
Flash Duration
at full power, t 0.5):
Q HEAD
High power channel A - 1/1300 s
Superfast channel B - 1/3200 s
Both channels 1/1800 s

A HEAD
High power channel A - 1/3000 s
Superfast channel B - 1/6000 s
Both channels - 1/4000 s
Flash Head Outlets
2
Battery Charge Time
Re-Charging Time - To full power - 2 hours.
Weight & Size
Weight: Power Unit 1.4 kg / Battery 1.6 kg / Total 3.0 kg
Pack Size: 15 x 8.5 x 21 cm
Head Size 9 x 8 x 11 cm / 250 g
Special Features
Customised compact accessory range : Elinchrom bayonet adaptor : Ranger Quadra to Ranger S and A head adaptors.
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

george m  Is the DC power pack included?
Andrew R  I'm not sure I understand your question. A lead-acid battery should be included with this kit.
Robin D  Is this power pack set compatible with the following ringflash? Elinchrom Ranger Quadra RQ Ringflash ECO with Removable Diffuser SKU: EL20492 MFR: 20492 Also, If I have Elinchrom Ranger Quadra RX 2 x A Head Kit EL102911, can the A heads be used between the two units? The RX, AS, is slightly confusing, I am switching to Elincrhom from Photoflex for more stability and diversity...
Andrew R  Yes, the ringflash is compatible with this D.C. power pack. The RQ A heads from the Quadra RX kit may be used with either unit (it's the same battery pack).
