Elinchrom Ranger Quadra Hybrid Lead-Gel Pro Set A Heads

SKU: EL104061 MFR: EL 10405.1
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available.

About this item

The Elinchrom Ranger Quadra Hybrid Lead-Gel Pro Set A Heads is a compact portable 400Ws battery flash system for studio and outdoors use. Complete with fast recycling times, wireless trigger and remote options via the EL-Skyport, the Quadra Hybrid RX really are a perfect system for anyone who likes to work away from the mains. With the Lead-Gel battery, the whole pack weighs 3 kg and allows you 150 flashes at full power while being a small 15x8.5x21cm.

Latest firmware manages flash power consistency, remote power variation, LED modeling lamp and even more RX features than are currently available on any other unit. The Action heads in these sets are ideal for sport photography, fashion photography and Action Freezing photography.

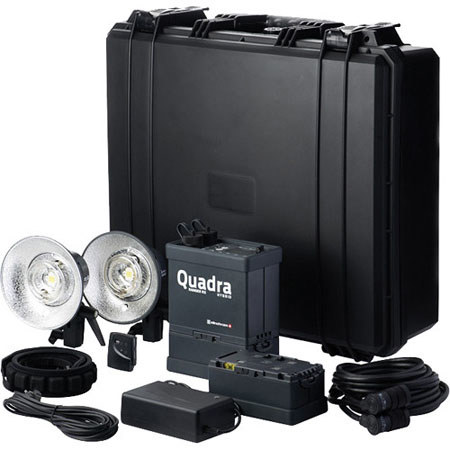

What's Included With This Item

  • Elinchrom Quadra Hybrid RX
  • Quadra Lead-Gel Battery
  • EL-Skyport Transmitter SPEED
  • 2 x RQ Hybrid Action Head
  • 2 x Quadra Flashhead Cable
  • RQ Set Case
  • Battery Box
  • Charger
  • Sync Cord and Shoulder Strap
  • Elinchrom Warranty

Key Features

  • EL-Skyport (built-in): Radio remote control of power settings and flash triggering
  • Unique control: full control over the units with the EL-skyport app for apple devices via the optional Wi-Fi module or with the EL-skyport software via the optional USB transceiver RX
  • Power Options: Two outlets - 2: 1 ratio. single high power channel and single superfast channel
  • Versatility: pre-flash detector system to enable the use of Quadra Hybrid with speedlights
  • Battery: Lead-gel for easy travelling
  • Security: 5V sync socket for maximum protection of digital cameras and secured battery
  • Stability: power auto-Dump & power controlled
  • Portability: Only 3 kg with Lead-gel. Super small and lightweight heads - compact and only 0.25 kg
  • Family: With the EL-Reflector adapter all accessories and Rotalux softboxes up to 135 cm can be used

Technical Specs

Energy (Ws/J) 400
Power distribution Asymmetrical 2:1 ratio
F-Stop (1m, 100 ISO, reflector 48deg.) At 100%: 64.5
Power range f-stop 6.6
Power range Ws 100%: 25 - 400 - 66%
Output A: 17 - 268 - 33%
Output B: 8.2 - 132
Power range 1/1 - 1/32
Power increments in f-stop 1/10 to programmable 5/10 - 1/1
Flash duration t0.5 at max. power in s: RQ S / A head
Output A (100%): 1/1200 / 1/2800
Output B (33%): 1/3000 / 1/5700
Output A+B (100%): 1/1500 / 1/4000
Recycling, FAST in s Output A: 0.41 - 2.26
Output B: 0.18 - 0.8
Recycling, SLOW in s Output A: 0.95 - 7.8
Output B: 0.37 - 2.7
Color temperature in deg.K At max. power: 5500
Auto Power Dumping Adjusts power settings automatically
Power stability ± 0.5%
Modeling lamp mode On, off, programmable timer and continuous
Flashes out of one charged battery At min. power, SLOW / FAST recycle: 2000 / 1500
At max. power, SLOW / FAST recycle: 140 / 110
Battery Lead-Gel 12 V / 3.6 Ah
Quick charger: approx. recharge time 2 hrs
EL-Skyport (Built-in) Integrated transceiver, 8 Frequency Channels and 4 Groups with full RX features
Sync voltage 5 V (compatible with all cameras)
Sync socket 3.5 mm Jack
Dimensions Ranger Quadra Hybrid including Battery box: 15x8.5x21cm / 5.90x3.34x8.26"
Weight 3kg / 6.61lbs
