Elmo 1304-261 TT-02RX Document Camera with CRP-261
Elmo

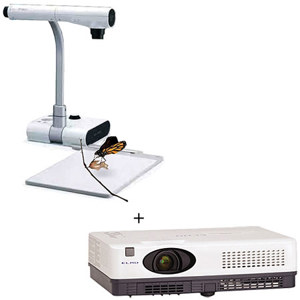

Elmo 1304-261 TT-02RX Document Camera with CRP-261 Projector Bundle System, 1.39MP CMOS Sensor, 2600 Lumens

SKU: EL1304261 MFR: 1304261
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

$1,479.00 Special Price Available
Free shipping
Qty:

Add to Wishlist

About this item

Elmo combines the versatility and advanced technology of TT-02RX document camera with CRP-261 projector to create the Doc-Tor a document camera and projector bundle system that you'll agree is at the head of its class. The TT-02RX is essentially a more refined document camera that will ultimately give the user better performance while still retaining a very economical price point.

The body of the unit is exactly the same as the TT-02S so it still remains lightweight and very portable for teachers that travel or would like to move the unit from class to class. The main enhancement with the TT-02RX is a better picture quality which is achieved by a higher rated sensor and more "frames per second" (known as FPS.) The new unit has a CMOS 1.39 mega-pixel sensor which is an improvement over the 850,000 pixels found on the last generation unit. Elmo raised the "frames per second" from 20 to 30 which will give the user smooth and natural movement.

The video will not be "choppy" and you will not have delays when you move something under the camera. This is particularly important for teachers that show more than text from books and magazines. This Multimedia Projector is designed with the most advanced technology for portability, durability and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors and matrix liquid crystal display (LCD) technology.

Key Features

  • True color reproduction crisp clear image
  • 30 frames per second real time image
  • Remote control
  • SD/SDHC
  • High resolution XGA, WXGA and SXGA from a 1.3 MP CMOS Sensor
  • Image Mate Software with audio and video recording
  • 5.2x optical zoom, 8x digital zoom total of 41.6x zoom
  • Easy to use with a microscope
  • Intuitive on screen menu
  • LED light lamp
  • Brightness 2600 Lumens
  • DC 12V out for the ELMO Portable Document Camera
  • Auto vertical keystone correction
  • Wired LAN with management software
  • Closed caption (NTSC)

Technical Specs

Presenter: Power Source 12VDC (AC adaptor 100-240V)
Presenter: Power Consumption 15W (AC adaptor included)
Presenter: Input selection Main / External
Presenter: Output terminal RGB output Min Dsub 15p connector, female x1
Composite video output RCA pin jack/75O unbalanced x1 (NTSC/PAL)
Presenter: Input terminal Input terminal RGB input Mini Dsub 15P connector female x1
Presenter: Recorder terminal Dedicated connector
Presenter: Ext. control terminal USB (2.0 compliant) Type B receptacle x1
Presenter: Memory interface SD card slot x1
Presenter: Lens f = 3.85mm - 20.02mm (5.2x zoom) F2.8 - 3.2
Presenter: Frame rate Max. 30 frames /sec.
Presenter: Shooting area SXGA: Max. 417x331mm Min. 92x74mm
WXGA: Max. 417x246mm Min.92x56mm
XGA: Max. 417x309mm Min. 92x69mm
Presenter: Limit of focus 50mm - infinity (2.0in x) form lens top
Presenter: Optical zoom 5.2x
Presenter: Digital zoom 8x
Presenter: Focus Auto / Manual
Presenter: Image pick-up element 1/3" CMOS
Presenter: Total pixels Horizontal 1384, Vertical 1076.. Approx 1,490,000 pixels
Presenter: Effective Pixels Horizontal 1329, Vertical 1049
Presenter: Synchronized signal Internal
Presenter: Analog RGB Output Analog RGB output 0.7V (p-p) 75 ohms unbalanced Synchronized signal SXGA: Positive polarity WXGA: Horizontal negative polarity, Vertical positive polarity XGA: Negative polarity SXGA: 1280x1024 @ 60Hz Horizontal frequency: 63.981kHz Vertical frequency: 60.020Hz WXGA: 1280x800 @ 60Hz Horizontal frequency: 49.306kHz Vertical frequency: 59.910Hz XGA: 1024x768 @ 60Hz Horizontal frequency: 48.363kHz Vertical frequency: 60.004Hz
Presenter: White balance Full auto/One-push/Manual
Presenter: Image rotation Provided (0deg. / 180deg. )
Presenter: Mode Text 1, Text 2, Text 3, Graphic 1, Graphic 2
Presenter: Pause Provided
Presenter: Slide show Provided (SD image data)
Presenter: Illumination lamp White LED
Projector Type Classroom Projector
Projector: LCD Panel System 0.55" TFT Poly x 3
Projector: Brightness 2600 Lumens
Projector: Panel Resolution XGA (1024 x 768)
Projector: Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)
Projector: Uniformity 85%
Projector: Contrast Ratio (Full on/off) 500:1
Projector: Image Size 40" - 300" (101.6 - 762cm)
Projector: Aspect Ratio 4:3
Projector: Scanning Frequency H-sync. 15 kHz-100 kHz, V-sync. 50-100 Hz
Projector: Projection Lens (inch) F 2.00 - 2.15 / f 0.72" - 0.87"
Projector: Throw Distance 4.3' - 38.7'
Projector: Lamp 220 W UHP
Projector: Dot Clock 140MHz
Projector: dB Rating 29dBA (eco mode)
Projector: Voltage 100 - 240 V
Projector: BTU Rating 723 (eco)
Projector: Zoom / Focus Manual
Projector: Throw Ratio 1.62 - 1.92
Projector: Zoom Ratio 1:1.2
Projector: Up / Down Ratio 6:1
Projector: Rear Screen Projection Yes (L / R Reverse)
Projector: Ceiling Mountable Yes (T / B Reverse)
Projector: Digital Keystone Correction V +/- 30deg. (Auto Keystone)
Projector: Digital Zoom 16x - 1/4x
Projector: Analog Interface D-sub 15 pin, RCA
Projector: RS-232 Control Carry and / or D-Sub9
Projector: Speaker Output 1W
Projector: Audio Output Stereo Mini (Variable)
Projector: PC Monitor Output Yes
Projector: Network Control / Admin Yes
Projector: Custom Startup Screen Yes
Projector: Remote Control IR Remote
Projector: Document Camera Power Port 12V DC 1.1A
Projector: Lamp Life 6000H (eco) / 5000H (normal)
Projector: Computer Capability UXGA/WXGA/SXGA/XGA/SVGA/VGA/MAC
Projector: Color TV System PAL/SECAM/NTSC/NTSC4.43/PAL-M/N
Projector: Menu Languages 19 Languages
Projector: Power Consumption 212W (eco)
Presenter: Outside Dimensions (WxDxH) 350 x 370.5 x 411.5mm (13.8 x 14.6 x 16.2in) (when Setup)
Presenter: Weight Approx. 2.9kg (6.4lbs) (Main body only)
Projector: Dimensions (W x H x D) 13.1" x 3.4" x 9.7" / 33.27 x 8.63 x 24.63 cm
Projector: Weight 5.5 lbs / 2.5 kg
