Elmo 1306-7 CO-10 Document Camera, CRA-1 Tablet Bundle
Elmo

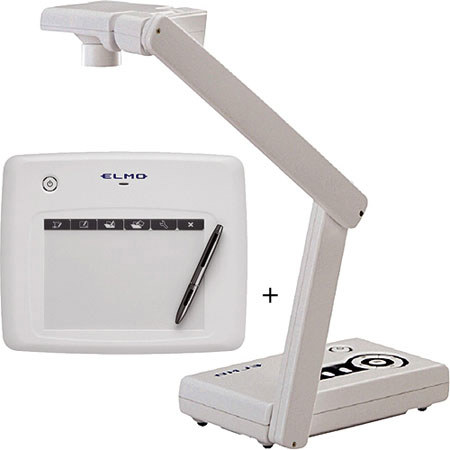

Elmo 1306-7 CO-10 Document Camera and CRA-1 Wireless Pen Tablet Bundle

SKU: EL130676 MFR: 13067
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$759.90
Free shipping
Qty:

Add to Wishlist

About this item

The Elmo CO-10 Document Camera with CRA-1 Wireless Pen Tablet is a 1/4" CMOS sensor, image capturing device with a resolution of 600 (H) TVL and a 6x optical zoom. It comes with a CRA-1 Wireless Pen Tablet that allows you to draw, add explanatory notes and modify images for display to a large audience.

Being foldable, lightweight (2.9 lb) and compact (5.62 x 17.55 x 13.31"), the CO-10 Document Camera is portable and ideal for classroom presentations. In addition to a flexible camera arm for positioning the camera in any angle, it also has a microscope-view mode for enlarging minute objects up to 51x zoom. To use the camera, you simply need to place materials under the camera and connect it to a projector. Using the Image Mate software, you can control camera functions, import or transfer images via a PC. Up to 16 images can be stored in the memory for a quick review during presentations.

The CRA-1 Wireless Pen Tablet offers an interactive whiteboard and various recording functions such as stamp, text input and image insertion. With the simple user-interface, you can easily create lesson materials containing real objects and digital images. Using the tablet, you can also synchronize video with audio, incorporate time-lapse photography and add still images to your presentations. It has a communication range of up to 50' and operates for 16 hours on a full charge.

What's Included With This Item

  • Elmo CO-10 Document Camera
  • CRA-1 Wireless Pen Tablet
  • Elmo Warranty

Key Features

  • 1/4" CMOS sensor camera with a resolution of 600 (H) TVL and 6x optical zoom
  • Foldable, lightweight (2.9 lb), compact (5.62 x 17.55 x 13.31)", portable and ideal for classroom presentations. Features flexible camera arm for positioning the camera at any angle
  • Offers a microscope view mode for enlarging minute objects up to 51x zoom
  • Easy to setup and operate, allows you to control camera functions and import or transfer images via a PC using the Image Mate software
  • Stores up to 16 images in the memory for a quick review during presentations
  • RoHS (Restriction of Hazardous Substances) compliant
  • Offers an interactive whiteboard and various recording functions such as stamp, text input and image insertion
  • Includes simple user interface for creating lesson materials that contain real objects and digital images
  • Allows you to synchronize video with audio, incorporate time-lapse photography and add still images to your presentations
  • Offers a communication range of up to 50'
  • Operates for 16 hours on a full charge

Technical Specs

Document Camera: Application Education, Commercial, Business, Medical, Scientific
Document Camera: Signal System NTSC/PAL
Document Camera: Sensor 1/4" CMOS, 2MP
Document Camera: Lens 3.39mm, f/3
Document Camera: Zoom 8x Digital
Document Camera: Resolution XGA (1024 x 768)
WXGA (1280 x 800)
SXGA (1280 x 1024)
Document Camera: Focus Auto/Manual
Document Camera: Inputs/Outputs Composite: RCA (x1 Output)
VGA: 15-Pin D-Sub (x1 Input, x1 Output)
USB: USB 2.0 (x1)
Document Camera: Picture in Picture No
Document Camera: Power Requirements 100-240VAC, 50/60Hz
12VDC, 2A
Document Camera: Power Consumption 6W
Tablet: Range 50' (15.2 m)
Tablet: Battery Life Operating Time: 16 hours
Tablet: Auto Power Off Time 30 minutes
Tablet: Full Charging Time 4 hours
Tablet: Electrical Requirements USB: 5VDC, 500mA
Lithium-Ion Battery: 3.7VDC, 50mA
Tablet: System Requirements Operating System: Windows XP SP2 (32-bit), Vista SP1 (32-bit), 7 (32-bit)
Tablet: Hardware USB port
Tablet: Environmental Requirements Operating Temperature: 32-104 Deg.F (0-40 deg.C)
Document Camera: Dimensions (W x H x D) Set-up: 5.6 x 13.3 x 17.6" (14.3 x 33.8 x 44.6cm)
Folded: 5.6 x 1.5 x 10.3" (14.3 x 3.7 x 26.2cm)
Document Camera: Weight 2.9 lbs (1.3kg)
Tablet: Dimensions 12.4 x 0.9 x 10.1" (31.4 x 2.2 x 25.7cm)
Tablet: Weight 1.48 lb (0.67kg)
