Elmo 1309 P10 Document Camera, 16x Optical/8x Digital Zoom

SKU: EL1309 MFR: 1309

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

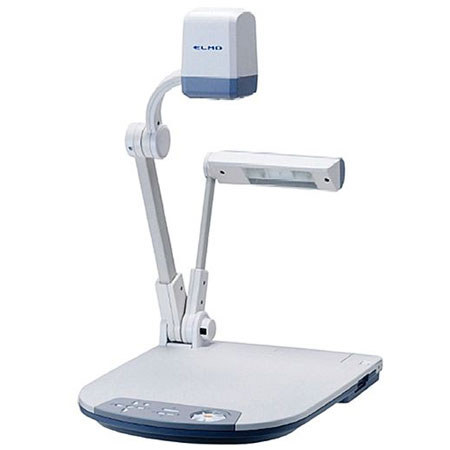

Elmo : Picture 1 regular $1,598.28

About Elmo

The Elmo P10 Document Camera is a high-performance document camera that enhances the classroom teaching and learning experience. Taking center-stage among the host of features offered by the digital visual presenter is the 1.49 MP CMOS chip, incorporating a 48x high-quality zoom lens that provides vivid clarity and true-color reproduction.

Precise image reproduction is possible as a result of the P10 Document Camera's 1/3" progressive scan CCD. High-image quality is rendered due to the 16x optical and 8x digital zoom options available. Additional features incorporated in the P10 presenter include 30 fps full-motion video, XGA/SXGA/WXGA resolutions and a DVI-D interface.

Easy positioning via the free-angle camera arm and a twin fluorescent lamp housed inside the upper lighting unit provide enhanced functionality devoid of distractions caused during the operation of other complex systems. Auto, one-touch, manual white balance control, image rotation (0 deg., 180 deg.), an easy-to-read OSD (On-screen Display); and an ergonomically designed, clear remote control complete the array of functions that the P10 Document Camera offers.

Image capture and store capabilities are extended by an SD memory card-ready port that can be used to integrate a removable SDHC memory card. All these features are intelligently incorporated into the lightweight (10.4 lb / 4.7 kg), compact design (377 x 482 x 582 mm) of the P10 Digital Document Camera.

An optional inclusion with the P10 Digital Document Camera is the Image Mate software that allows you to create presentations and movies as well as capture and store audio, video and still images.

Elmo Features

  • Incorporates a 1.49 MP CMOS chip
  • Includes a high-quality zoom lens
  • Camera head integrates a 1/3" progressive scan CCD
  • Offers high-image quality with the 16x optical and 8x digital zoom
  • Full-motion video with a high frame rate of 30 fps
  • Supports XGA, SXGA and WXGA resolutions
  • Easy positioning via the free-angle camera arm
  • Upper lighting unit houses a twin fluorescent lamp
  • Enhanced image capture and storage capabilities due to the built-in SD memory card port
  • Offers extended flexibility and ease of operation with its lightweight (10.4 lb / 4.7 kg) and compact design (377 x 482 x 582 mm)

Elmo Specifications

Camera: Image pickup device
1/3" progressive scan CCD
Camera: Total pixels
1,077 (H) x 788 (V), 850,000 pixels
Camera: Effective pixels
1,034 (H) x 779 (V)
Camera: Frame rate
20 fps
Camera: Resolution
RGB output: 600 (H) x 600 (V) TV lines
Video output 450 (H) TV lines
Optics: Zoom Powered
12x optical, 4x digital
Optics: Lens
F2.8, f=4.7 to 56.4mm
Optics: Shooting area
Max. 405 x 303mm
Min. 36.5 x 28mm
Optics: Focus
Auto/Manual (powered)
Optics: Iris
Auto (with level adjustment)/Manual
White balance: Full-auto/One-push/Manual
Negative/positive conversion
Aperture enhancement
Text mode
Edge enhancement
Color/B&W selection
Pause mode
Gamma adjustment
OSD (on-screen display)
Split display (SD Memory Card image, 9-split, 16-split)
Image save (onto SD Memory Card)
Image rotation (0deg., 180deg. )
State presetting: Up to 6 user settings
Sync. system: Internal
Video Input
RGB x1 (XGA 1024 x 768)
Video Output
DVI x1
RGB x1
Composite x1 (RCA)
S-Video x1
Control Connector
USB Port
Card Slot
SD card slot
Upper lighting unit: twin fluorescent lamp
Power Source
AC 100 to 240V, 50/60 Hz
Dimensions (W x D x H)
Setup: 14.8 x 19 x 23" / 377 x 42 x 582mm
Folded: 14.8 x 19 x 7.1" / 377 x 482 x 180mm
10.4 lbs / 4.7kg
Mfr #
