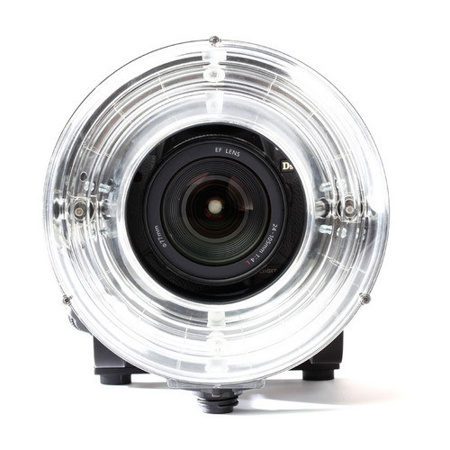

Elinchrom Ranger Quadra RQ Ringflash ECO with Removable Diffuser

Elinchrom : Picture 1 thumbnail Elinchrom : Picture 2 thumbnail Elinchrom : Picture 3 thumbnail Elinchrom : Picture 4 thumbnail Elinchrom : Picture 5 thumbnail

About Elinchrom

The Ranger Quadra Ringflash ECO from Elinchrom accepts a standard 2-pole flash tube. Included is a white diffuser cap and a 2 m detachable flash cable. The RQ Ringflash ECO is an ideal light source for shadow-free fashion and beauty photography.

Elinchrom Features

  • Up to 400 ws maximum flash power, for the Ranger Quadra RX Battery power pack
  • Detachable high quality flash cable for maximum power and flexibility, available in 1 m / 2 m standard / 5m / 10 m
  • Included reliable quality 2-pole flash tube with internal reflector and transparent plastic protection
  • Included white diffuser cap to modify the light characteristics into a semi diffuse light source
  • Included camera bracket to fit a wide range of cameras

Elinchrom Specifications

Max. Flash Power
400 Ws / only Ranger Quadra
Compatible power packs
Ranger Quadra AS
Ranger Quadra RX - AS
Flash duration at full power
t 0.5 - t 0.1
Plug A: 1/1000 - 1/500
Plug B: 1/2500 - 1/1200
Flash duration at min. power
t 0.5 - t 0.1
Plug A: 1/600 - 1/300
Plug B: 1/1400 - 1/800
F-stop 2 m, ISO 100, at full power
11.8 ( - 0.5 f-stop w. diffuser )
Color temperature at full power
Inner / outer diameter
9.5 cm / 19 cm
Cable length
2 m
Camera / Tripod adaption
1/4" / 1/4" and 3/8"
Matt glass diffuser
White Plexiglas diffuser
Dimensions (L x W x H)
21 x 20 x 21 cm / 8.26 x 7.87 x 8.26 inch
Weight including cable
1 kg / 2.20lbs

Reviews about this item

Reviewed by 1 customers

(0 of 1 customers found this review helpful)


A great ringflash for ~$500!!!


from Perth, Australia  -  Semi-pro Photographer

Works well but treat it with care. I have had no problems with mine but I think it needs a protective case as thsee flashes are fragile. If you already have a Quadra, this is a no brainer.
