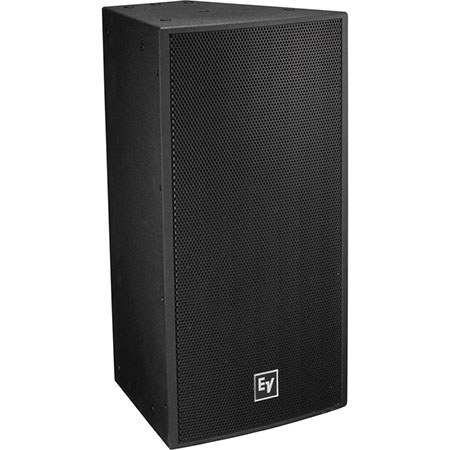

Telex EVF-1121S 12" Front-loaded Bass PI-Weatherized Woofer,Single,Black
See all Telex items

Telex EVF-1121S 12" Front-loaded Bass PI-Weatherized Woofer, 8 Ohms Nominal Impedance, 103dB Sensitivity, 48-120Hz, 400W Continuous Power, Single, Black

SKU: EVF1121SPIB
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Telex EVF-1151S: Picture 1 regular
Telex EVF-1151S 15" Front-Loaded Subwoofer, Single, Fiberglass, Black
$3,631.00
Telex EVF-1151S: Picture 1 regular
Telex EVF-1151S 15" Front-Loaded Subwoofer, Single, Fiberglass, White
$3,631.00
Telex EVF-1151S: Picture 1 regular
Telex EVF-1151S 15" Front-loaded Bass PI-Weatherized Woofer,Single,Black
$3,072.00
Telex EVF-1151S: Picture 1 regular
Telex EVF-1151S 15" Front-loaded Bass PI-Weatherized Woofer,Single,White
$3,072.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex EVF-1121S Specifications

  • Frequency Response (-3 dB)

    70 - 98Hz

  • Frequency Response (-10 dB)

    48 - 120Hz

  • Recommended High-Pass Frequency

    50Hz

  • Sensitivity 1 W/1 m

    103dB

  • Max. SPL/1m (calc)

    135dB

  • System Power Handling

    400 W continuous, 800 W program, 1600 W peak3

  • Nominal Impedance (Passive)

    Passive: 4Ohms, Biamp: 8Ohms

  • Minimum Impedance

    Passive: 3.4Ohms, Biamp: 5.5Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) H

    Omnidirectional in normal operating range

  • Coverage (Nominal -6 dB) V

    Omnidirectional in normal operating range

  • Transducer

    EVS12SB, 12" / 304.8mm Driver

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind
    PI versions: 18 GA Stainless, Powdercoat, with hydrophobic cloth behind

  • Environmental

    PI versions: IEC 60529 IP55

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 15.98 x 16.27" / 768.60 x 405.89 x 413.25mm

  • Weight

    57.7lbs / 26.17kg

About Telex EVF-1121S

The Electro-Voice EVF-1121S 12" Front-loaded Bass PI-Weatherized Black Woofer is available to augment the low-frequency output ability of the EVF full-range systems. In their passive mode, it have integral low-pass filters that roll off frequencies above 100 Hz at the rate of 12 dB per octave. This means that they can be used without an external digital signal processor (DSP) for crossover from the low-frequency to the full-range systems. As many as two full-range systems can be paralleled with an EVF low-frequency system on a single power-amplifier channel capable of driving a 2.1Ohms minimum impedance.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Electro-Voice EVF-1121S 12 " Front-loaded Bass PI-Weatherized Woofer
  • Dual-gland-nut Input-panel Cover
  • Electro-Voice 3 Year Warranty
