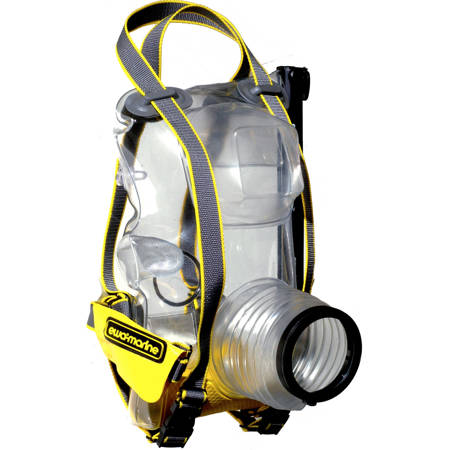

Ewa-marine Underwater AF SLR / Digital Camera Housing U-AXP - (Rated f/ 50 Meter/150' depth) #U-AXP
Mfr. Part: UAXP SKU: EWUAXP
enlarge image
|
|
 |
|
|
|
Item Includes
Yellow carry-case which has a water-proof interior and zippered side-pocket, manual for ewa-marine SLR-photo housings, initial supply of CD5, specially profiled foam padding, AV110-X autofocus adapter
|
Description
The housing can be used on small boats, in the surf, while swimming, snorkeling or diving. It's easy to operate the camera as its various components and buttons can be operated through the PVC.
The U-AXP is designed to fit almost all common SLR cameras on the market today, irrespective of the manufacturer or model. With thishousing, a whole new world of applications opens up for your standard SLR camera: Inside the housing you can now take the camera safely canoeing, snorkeling or even diving, up to a depth of 50 m / 150 ft
The housing is larger than its sister model, the U-AX, for two reasons: Firstly it was designed to take the larger SLR cameras like the Nikon F4, F5 and Canon EOS 1, EOS 3 (please note, that you will need a special adapter for the AV110-X which is available from your dealer or distributor) and secondly the extra volume of air trapped inside the housing allows a dive depths of up to 50m / 150 ft !
If the optional BF1 lead weight is inserted into the housing, underneath the camera, it becomes even easier to reach the maximum depth. Experienced photographers have confirmed, that the auto focus and flash both continue to function perfectly. As you descend, the air is pressed into the camera. Due to this, the pressure inside the housing will remain the same as the surrounding water pressure. (this is the reason why ewa-marine housings are so safe to use: implosions are impossible) Due to this, we have to start the dive with a suitable amount of air inside the housing. The foam pads supplied with the housing are part of this air "reservoir" and additional air should also be blown into the housing, via the valve at the rear, to ensure that the maximum potential volume is being utilised.
Designed specifically for SLR cameras, the U-AXP housing is manufactured from double laminated PVC and has an integrated, optically neutral flat glass port. The external flash that is commonly used on SLR cameras fits into the specially designed section on the top of the housing.
It has a pair of non-corrosive and seawater resistant clamping rails which fit together for perfect sealing. They tighten by means of three screw knobs.
It is supplied in a handy yellow carry-case which has a water-proof interior and zippered side-pocket |
Features
 |
For SLR cameras with a top mounted flash. Incl. Nikon F5 and F90; Canon EOS 1, 3 & 5 |
|
for dive depths of up to 50 m / 155 ft |
Specifications
| length | 12 - 17 cm ( 4 3/4 - 6 2/3 inches ) |
| width | 19 cm ( 7 1/2 inches ) |
| height | 275 cm ( 10 3/4 inches ) |
| position of view finder | 75 mm ( 2 15/16 inches ) |
| front port diameter | 72 mm max. filter thread ( 2 14/16 inches ) |
| weight | 680 g ( 1,5 lb ) |
| | |
|
|
|
|
|
|
|
|
