CAM Engineering Reporter Flash Bracket (Ring Style), Large 4.6" ID Rotating Flash Mount for SLR Cameras with a Vertical Grip

See all CAM Engineering items
CAM Engineering : Picture 1 thumbnail CAM Engineering : Picture 2 thumbnail CAM Engineering : Picture 3 thumbnail CAM Engineering : Picture 4 thumbnail
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more

Top Rated Gear

Our Price

$179.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About CAM Engineering

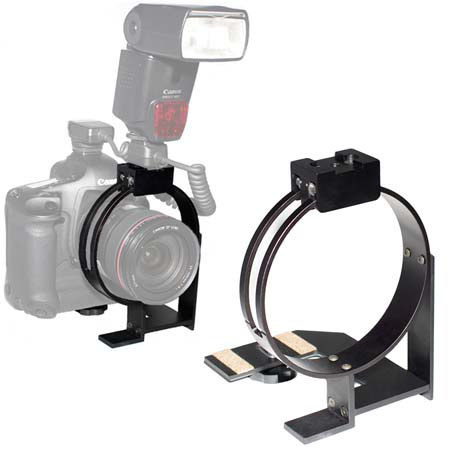

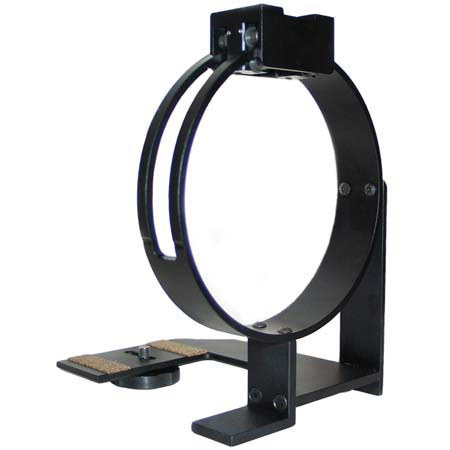

The Reporter Flash Ring is a new tool that allows reporters and event photographers to rotate any flash around a camera's optical axes. It keeps the flash above the lens in either horizontal or vertical camera positions. The bracket will not restrict your hand's access to the vertical grip or vertical shutter release button when the camera is in the "portrait" position. The flash is mounted on a slider which is designed for high stability and effortless swing of the flash with one hand. No locking or unlocking is required to secure the flash in either position. The unit is light and compact so it can be kept attached to the camera at all times.

Maximum allowed flash weight: 16oz (454g)
Ring ID: 4.6" (117mm)

CAM Engineering Features

  • Fits any SLR photo camera with the tripod mounting hole centered to the lens. (Cameras without a vertical grip will require the RFR105 Universal Mounting Adapter)
  • Designed to accept any common off-camera TTL cord adapter
  • The ring's diameter is big enough to provide room for the largest lenses usedby event photographers and small enough not to restrict any camera operations
  • Unique slider mechanism provides two self-locking flash positions 90° apart
  • Precision machined, rigid, all aluminum construction adds only 9oz to the camera's weight
  • Cork-padded bracket mounts to the camera with a 1/4-20 retaining screw (supplied)
  • Tripod ready
  • Camera with mounted unit can rest on a flat surface when not in use
  • Does not restrict access to the lens locking mechanism used for swapping lenses
  • The ring's position can be adjusted 3/4" front-to-back to allow access to controls on various lens types

CAM Engineering Specifications

Fitting f/Tripod
1/4"-20
Camera Screw(s)
One 1-4"- 20
Weight
255 g / 9 oz
Size
Dimensions (WxDxH): 5.0"(127mm) x 5.0"(127mm) x 6.9"(175mm)

Reviews about this item

Reviewed by 3 customers


5.0

Does not work with Petax Grip!

By

from California

Works fine with any grip that has a center screw mount, but does not work with the Petax grip which has an off center screw mount.


5.0

Great flash bracket

By

from Harlingen, TX  -  Photo Enthusiast

you cant switch to vertical grip and move the flash to the top of the camera to still bounce the flash on the ceiling... after reviewing a lot of flash bracket I decided for this one.

(4 of 4 customers found this review helpful)


5.0

Works like a charm!

By

from Washington, DC  -  Professional

Perfect for covering Red Carpet events where you need to go from Horizontal to Vertical in a split second

(5 of 5 customers found this review helpful)


5.0

Well designed

By

from Boston MA  -  Hobbyist/Enthusiast

I found this bracket to be very thoughtfully designed. For example, no matter which position the flash is in, the distance between the flash and the lens is the same. So one does not have to adjust the flash to insure the desired light distribution. Surprisingly, I can't say the same of other products I have tried. This flash bracket is also very light-weight. It matters a lot when one runs around taking pictures at a wedding or another event all afternoon. The rotation is smooth and easy. You don't have to struggle with it. It does not block access to the grip when turned. It just works and works well with very little effort!
