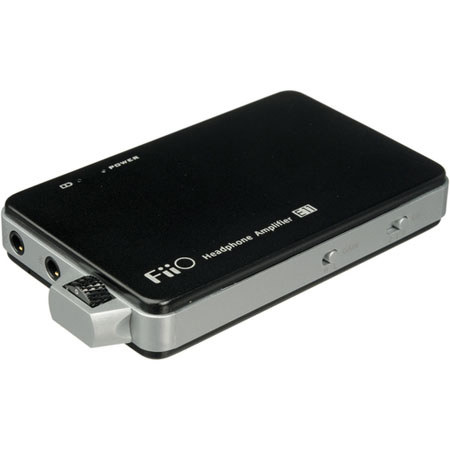

Fiio E11 Headphone Amplifier, 10 to 100KHz Frequency, 3.5mm Input/Output
What's Included With This Item:
- Fiio E11 Headphone Amplifier
- 3.5mm Audio Cable
- USB Charging Cable
- Silicon Band
- Fiio Warranty
The Fiio E11 Headphone Amplifier is a compact and lightweight headphone amplifier that offers high-quality audio, ideal for portable music devices. The amplifier has standard 3.5mm input and output connectors for compatibility with a variety of MP3 players, CD players, computers, earbuds, headphones and other devices. It has a heavy-current 3-channel amplified circuit that lowers output impedance. It also provides high efficiency and a low-noise power boost. It provides precise and even sound pressure levels and a wide dynamic range.
The convenient volume control uses a closed APLS potentiometer to ensure low noise and excellent channel balance. The amplifier offers 3 levels of bass boost and 2 levels of gain to meet your personal preferences and adapt to different sound sources. There are also high and low voltage options to meet different needs. An auto-lock protective circuit will turn the amplifier off automatically in the event of abnormal activity in order to protect your headphones and minimize the risk of hearing damage.
The amplifier operates on a high-performance BL-5B Lithium battery that is easily replaceable. The battery provides approximately 10 hours of operation per charge, allowing you to listen all day. The amplifier has charging and power indicator LEDs to give you a visual cue of operation status. A charge priority function will cease operation while the amplifier is charging. Once the battery has been charged and the amplifier is unplugged, operation resumes.
|Power Source (Adapter)||DC 5V, 500mA|
|Frequency Response||10 to 100KHz|
|Signal to Noise Ratio||=98dB|
|Total Harmonic Distortion||<0.009%(10mW)|
|Maximum Output Power||Voltage: H 300mW(16Ohms); 200mW(32Ohms); 35mW(300Ohms)
Voltage: L 120mW(16Ohms);88mW(32Ohms); 13mW(300Ohms)
|Battery charge time||200M|
|Battery play hours||>10H|
|Recommended Headphone Impedance||16 to 300Ohms|
|Dimensions (H x W x D)||3.67 x 2.13 x 0.52" (93 x 54 x 13mm)|
|Weight||2.3 oz (65g) (With Battery)|
