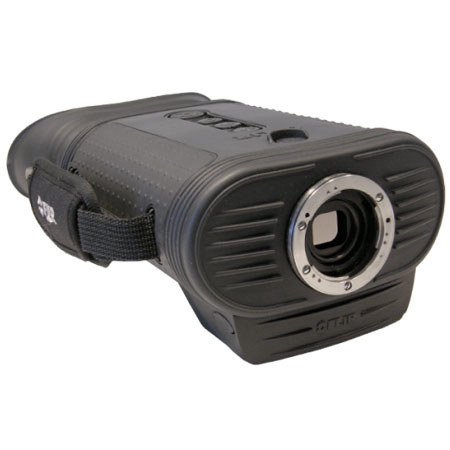

FLIR BHS-X Command Bi-ocular Handheld Thermal Imaging Camera, No Lens, PAL 30 Hz, 320x240 Detector Size

See all FLIR items
SKU: FLIBHSXCP30 MFR: 431-0005-02-00


The FLIR BHS-X Command Bi-ocular Handheld Thermal Imaging Camera (No Lens, PAL 30 Hz) is a powerful tool for the security professional. The FLIR BHS-X is a thermal bi-ocular, providing a more comfortable viewing for long periods of time. Pierce through pitch black darkness, bushes and smoke to spot enemies or intruders.

The Command BHS-X Thermal Imaging Cameras from FLIR can help you spot activity from a great distance, thanks to the bi-ocular design; you have greater focusing ability and your eyes can pick up faint objects from greater ranges than a monocular design. With a 320 x 240 pixel resolution, your view is crisp and clear at all times with the FLIR BHS-X Thermal Imaging Camera. Impressive performance is the reputation FLIR thermal imaging has built through consistent and reliable thermal cameras.

The BHS-X is all about ergonomics, portability and durable construction. It is easy to carry, transport and most importantly, use with great effectiveness. With one touch video recording capability, the BHS Thermal Camera is a must have for security and covert operation use.

FLIR BHS-X Features

  • Digital zoom: The BHS-X comes with a 2x digital zoom. This allows you to have a closer look at the situation when necessary
  • Portable and rugged: Weighing just under 1000 grams, batteries included, the FLIR BHS-X Bi-ocular is compact and extremely light systems. It is IP67 rated and operate between -20deg.C and +60deg.C
  • Easy-to-operate: Ergonomic and easy-to-use, the BHS-X is fully controlled with just 5 buttons on top of the unit
  • Ideal for covert operations: In operation, the BHS-X Bi-ocular Command is totally silent units. Eyebrow style light shield eye-pieces allows the operator to remain fully covert, in total darkness
  • One touch video recording: Just press a button and start recording thermal video on a removable SD card
  • Image storage: Allows to store thermal images in JPEG format on a removable SD card. Images can be used as evidence
  • Long battery life: The battery compartment hides 4 rechargeable AA NiMH batteries. Good for 4 hours continuous operation. The BHS-X Bi-ocular can also run on standard commercial off the shelf non-rechargeable Alkaline or Lithium Ion AA-batteries
  • Hot shoe: The BHS-X Bi-ocular comes standard with a "hot shoe" which can easily be attached to the camera. It allows to charge the camera and connect the camera to an external video monitor while the camera is mounted on a tripod
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

FLIR BHS-X Specifications

Imaging performance Detector Size
320 x 240
Imaging performance Detector E-Zoom
Still Image Format
JPEG; 320 x 240 resolution
Video Format
320 x 240 AVI
Detector Type
Uncooled Microbolometer
Spectral range
7.5 - 13.5 um
Thermal Sensitivity
<50 mK @ f/1.0
Start up from stand-by
< 1.5 seconds
Image Processing
FLIR Proprietary Digital Detail Enhancement
SD Card Slot
Supports up to 16 GB SDHC Card
Built-In Display
Color VGA LCD Display
Video Output
PAL composite video; RCA jack
Still Image Storage
SD or SDHC Card
Video Storage
AVI Format; Approx. 8 seconds/Mb on SD Card
USB2 Port
Real-Time Clock
Battery Type
4 AA Batteries; NiMH, Li-Ion, or Alkaline
Battery Life (Operating)
4-6 Hours On NiMH batteries
Battery Life (Stand-By)
120 hours on NiMH batteries
IP-67, Submersible
Operating Temp.
-4deg.F - 140deg.F (-20deg.C - 60deg.C)
Storage Temp.
-40deg.F - 167deg.F (-40deg.C - 75deg.C)
1 m drop
Dimensions (L x W x H)
280 x 165 x 67mm / 11.02 x 6.49 x 2.63"
998g / 35.20 oz
