FLIR BHS-XR Command Bi-ocular Handheld Thermal Imaging Camera, No Lens, PAL 9 Hz, 640x480 Detector Size

See all FLIR items
SKU: FLIBHSXRP9 MFR: 431-0006-02-00S

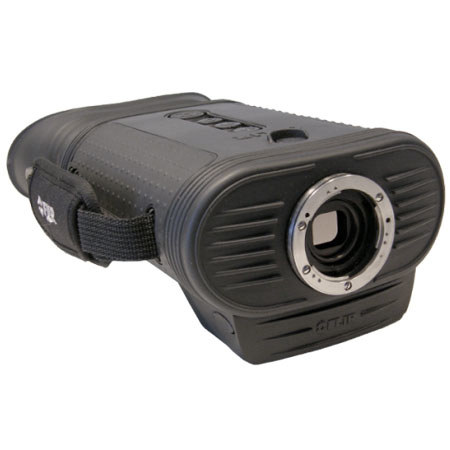

FLIR BHS-X: Picture 1 regular $6,999.95


The FLIR BHS-XR Command Bi-ocular Handheld Thermal Imaging Camera (No Lens, PAL 9 Hz) has a two-eye advantage over the Cyclops of a monocular NVD. Providing a full coverage eyepiece, inter-ocular adjustment and ergonomic comfort, this H-Series bi-ocular thermal night vision camera is an essential tool for extended patrols, covert surveillance, critical infrastructure protection and high-threat security missions.

Employing a 640 x 480 FLIR thermal imaging core with advanced image-processing algorithms, the BHS Command - QD100 Thermal Bi-ocular provides crisp, clear thermal video day and night. The thermal camera allows officers to see in total darkness, through smoke, dust and light fog, as well as through light camouflage and foliage in any lighting conditions, providing a clear tactical advantage.

With a 100 mm lens, this BHS Command model bi-ocular provides excellent long range viewing with 640 x 480 native resolution in the viewfinder. At 4x, the resolution is 160 x 120. Raised rubber sleeves afford additional comfort for long term viewing and captive low-profile lens caps help protect the optics. Tactile rubber hand grips provide an excellent non-slip surface. A quick release hot-shoe makes access to AC power a "snap," and a latched battery door provides a fast and easy method to exchange or recondition the batteries. There is an integrated real-time clock and a USB2 port.

FLIR BHS-X Features

  • Digital zoom: The BHS-XR has both a 2x and a 4x digital zoom. This allows you to have a closer look at the situation when necessary
  • Portable and rugged: Weighing just under 1000 grams, batteries included, the FLIR BHS-XR Bi-ocular is compact and extremely light systems. It is IP67 rated and operate between -20deg.C and +60deg.C
  • Easy-to-operate: Ergonomic and easy-to-use, the BHS-XR is fully controlled with just 5 buttons on top of the unit
  • Ideal for covert operations: In operation, the BHS-XR Command Bi-ocular is totally silent units. Eyebrow style light shield eye-pieces allows the operator to remain fully covert, in total darkness
  • One touch video recording: Just press a button and start recording thermal video on a removable SD card
  • Image storage: Allows to store thermal images in JPEG format on a removable SD card. Images can be used as evidence
  • Long battery life: The battery compartment hides 4 rechargeable AA NiMH batteries. Good for 4 hours continuous operation. The BHS-XR Command Bi-ocular can also run on standard commercial off the shelf non-rechargeable Alkaline or Lithium Ion AA-batteries
  • Hot shoe: The BHS-XR Bi-ocular comes standard with a "hot shoe" which can easily be attached to the camera. It allows to charge the camera and connect the camera to an external video monitor while the camera is mounted on a tripod
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

FLIR BHS-X Specifications

Detector Size
640 x 480
2x, 4x
Still Image Format
JPEG; 640 x 480 resolution
Video Format
640 x 480 AVI
Detector Type
Uncooled Microbolometer
Spectral range
7.5 - 13.5 um
Thermal Sensitivity
<50 mK @ f/1.0
Start up from stand-by
< 1.5 seconds
Image Processing
FLIR Proprietary Digital Detail Enhancement
SD Card Slot
Supports up to 16 GB SDHC Card
Built-In Display
Color VGA LCD Display
Video Output
PAL composite video; RCA jack
Still Image Storage
SD or SDHC Card
Video Storage
AVI Format; Approx. 8 seconds/MB on SD Card
Real-Time Clock
USB2 Port
Battery Type
4 AA Batteries; NiMH, Li-Ion or Alkaline
Battery Life (Operating)
4-6 Hours On NiMH batteries
Battery Life (Stand-By)
120 hours on NiMH batteries
IP-67, Submersible
Operating Temp.
-4deg.F - 140deg.F (-20deg.C - 60deg.C)
Storage Temp.
-40deg.F - 167deg.F (-40deg.C - 75deg.C)
1 m drop
Dimensions (L x W x H)
280 x 165 x 67mm / 11.02 x 6.49 x 2.63"
998 g / 35.20 oz
Mfr #
