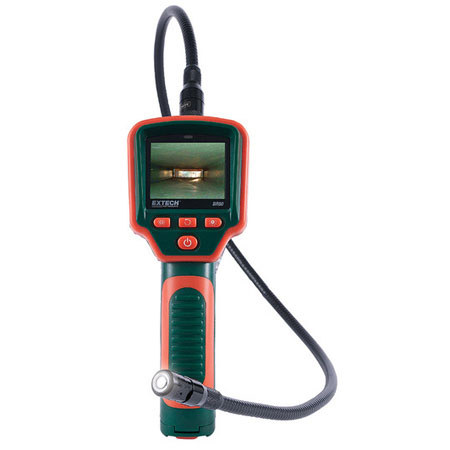

FLIR BR80 Video Borescope Inspection Camera, 17mm Camera Head, 2.4" Color LCD Monitor, 39" Cable

SKU: FLIBR80

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR BR80 Specifications

  • LCD Screen Type

    2.36" TFT

  • Total Pixels

    640x480

  • Viewing direction

    Viewing Angle 72deg.

  • Working length

    1m (39.4")

  • Minimum Bend Radius

    66.04mm (2.6")

  • Camera head diameter

    17mm (0.67")

  • Shaft diameter

    9mm (0.35")

  • Focus point

    2-6" / 5.08-15.24cm

  • Auto Power OFF (APO)

    OFF /5 min. /10 min. selectable

  • Waterproof Capacity

    IP67 (imager head and tube)

  • Power Supply

    4 x 'AA' 1.5V batteries

  • Operational Time

    Approximately 1.5 hours

  • Consumption Current (Max.)

    150mA

  • Operating Temperature

    -10degreesC-+50degreesC (+14degreesF-+122degreesF)

  • Operating Humidity (Display)

    15-85%RH

  • Dimensions

    211x83x76mm / 8.3x3.3x3" (meter body only)

  • Weight

    1.35lbs / 0.61kg (meter & tube)

About FLIR BR80

The FLIR BR80 Video Borescope Inspection Camera offers a 17mm camera head on a 1m long probe, both rated as water and dust proof (IP67). At the tip of the probe the BR80 features four bright LED lights with adjustable brightness to give the best illumination in all situations. For those applications that require more reach, the BR80 is capable of accepting two optional 0.95m (37.5") extensions, for a total possible working length of 2.9m, or 9 feet 6 ". The BR80 has a good focal depth with a glare-free focus from about 2" away, while the camera offers a total pixel resolution of 640x480. To make the borescope more ergonomic from a user perspective, Extech has incorporated a "flip" feature which will mirror the image vertically. For better battery life, the BR80 has a user selectable auto shut off delay and the 2.4" color LCD incorporates a battery status indicator. The Extech FLIR BR80 Video Borescope Inspection Camera offers excellent value in the entry level borescope category and makes a great choice for most general video inspection needs, from building inspections to mechanical applications.

FLIR BR80 Features

  • 17mm diameter camera head with 39" (1m) flexible gooseneck cable retains configured shape
  • Lightweight, handheld design to easily find, diagnose and solve problems
  • Waterproof camera head with four bright LED lamps to illuminate viewed object
  • Glare-free close-up field of view
  • Vivid 2.4" color LCD monitor for detailed images plus 180deg. image rotation feature

Key Features

  • 17mm diameter camera head
  • Lightweight, handheld design to easily find, diagnose & solve problems
  • Waterproof camera head
  • Glare-free close-up field of view
  • Vivid 2.4" color LCD monitor for detailed images plus 180deg
  • image rotation feature

What's in the box:

  • FLIR BR80 Video Borescope Inspection Camera
  • 17mm x 1m Camera Probe
  • 4 x AA Batteries
  • Extension Tools (Mirror & Hook & Magnet)
  • FLIR Warranty
