FLIR

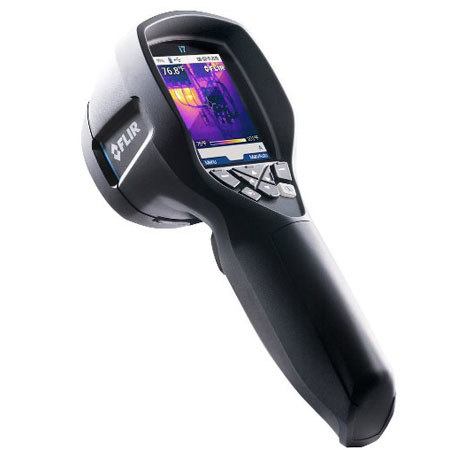

FLIR i7 Thermal Imaging Camera, 140x140 Pixels, Center Spot

SKU: FLII7 MFR: FLIR I7
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,995.00
Free Shipping
Qty:

Add to Wishlist In Stock

About the FLIR i7 Thermal Imaging Camera

The FLIR i7 is the smallest, lightest and most affordable thermal imaging camera on the market. It is incredibly easy to use and requires no former experience. It really is a matter of "point-shoot-detect" to obtain high-quality thermal images that will immediately give you the thermal information you need.

FLIR i7 Thermal Imaging Camera Includes

  • FLIR i7 Thermal Imaging Camera
  • Battery (Inside Camera)
  • Power Supply/Charger with Plugs
  • USB Cable
  • miniSD Card with SD Card Adapter
  • Printed Getting Started Guide
  • Printed Important Information Guide
  • Calibration Certificate
  • User Documentation CD-ROM
  • Hard Transport Case
  • FLIR Tools PC Software Download Card
  • FLIR Warranty

FLIR i7 Thermal Imaging Camera Features

  • Outstanding ease-of-use: The camera is extremely easy to understand and operate, designed for entry-level users. The camera is intuitive and comes with a full manual
  • Fully automatic: Produces instant, point-and-shoot JPEG thermal imagery that carries all required temperature data and can be stored internally or externally, sent and analyzed
  • Focus free: The fixed focus free lens makes using the FLIR i5/i7 a snap
  • Compact and lightweight: FLIR i7 weighs only 365 g and is easy to store in a belt pouch
  • Extremely rugged: FLIR i-Series thermal imaging cameras withstand a 2 meter drop. They are watersplash proof and IP43 rated
  • SD card storage: Stores images with unique ID in radiometric JPEG format, containing all temperature data on a standard miniSD card. USB file transfer to PC
  • Reporting and analysis software included: FLIR Tools software is included and the camera is also compatible with the more powerful FLIR Reporter
  • Outstanding measurement/accuracy: High accuracy of ±2deg.C or ±2% produces sensitive thermal images for general purpose maintenance analysis. Measures temperatures up to +250deg.C and detects temperature differences as small as 0.10deg.C
  • Measurement functions: Spotmeter, box with max./min. temperatures, isotherm above/below (depending on model)
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

FLIR i7 Thermal Imaging Camera Specifications

Thermal Image Quality 140x140 pixels
Field of View 29deg. x 29deg./0.6 m
Thermal Sensitivity 0.10deg.C
Measurement modes Center Spot, box with max./min. temp., isotherms above/below selected temperature interval
Spectral Range 7.5 - 13 um
Spatial Resolution (IFOV) 3.7 mrad
Image Frequency 9 Hz
Focus Fixed
Focal Plane Array (FPA) Uncooled microbolometer
Display 2.8" color LCD
Color palettes Iron, Rainbow and Black/White
Set-up controls Local adaptation of units, language, date and time formats; automatic shutdown
Image Storage: Type MiniSD card
Image Storage: File format Standard JPEG - 14 bit measurement data included
Emissivity correction Variable from 0.1 to 1.0 or selected from list of materials
Reflected Apparent Temp. Correction Automatic, based on input of reflected temperature
Battery Type Li-lon rechargeable
Battery Operating Time 5 hours, display shows battery status
Charging System In camera, AC adaptor; 3 hours to 90% capacity
AC Operation AC adaptor 90-260 VAC input
Power Management Automatic shutdown (user selectable)
Adaptor Voltage 5 VDC out
Object Temperature Range -20deg.C to +250deg.C
Accuracy ±2 deg.C or ±2% of reading
Operating temperature range 0deg.C to +50deg.C
Storage temperature range -40deg.C to +70deg.C
Humidity Operating and storage IEC 60068-2-30/24 h 95% relative humidity
Shock 25G, IEC 60068-2-29
Vibration 2G, IEC 60068-2-6
Encapsulation Camera housing and lens: IP43
Dimensions 223x79x83mm / 8.77x3.11x3.26"
Weight 365g / 12.8oz (including battery)
