FLIR PathFindIR LE Aftermarket Kit, NTSC

SKU: FLIPFIRCKIT

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR PathFindIR LE Aftermarket Specifications

  • Detector type

    Focal Plane Array (FPA), uncooled microbolometer 324 x 256 pixels

  • Spectral range

    8 to 14um

  • Field of view

    36 (H) x 27 (V) with 19 mm lens

  • Spatial resolution (IFOV)

    2 mrad

  • Thermal sensitivity

    100 mK at +25C

  • Image frequency

    8.3 Hz PAL or 7.5 Hz NTSC

  • Focus

    Automatic (25 m to infinity)

  • Image processing

    Digital Detail Enhancement (DDE)

  • Time to image

    < 2 seconds

  • Automatic Heater

    When window temperature is below +4C

  • Video output

    RS170 EIA/NTSC or CCIR/PAL composite video, 75U

  • Connector types

    BNC, with optional pigtail cable

  • Power Requirements

    6 - 16 V DC

  • Power Consumption

    2 W quiescent, 6 W max (with window heater on)

  • Operating temperature range

    -40C to +80C

  • Storage temperature range

    -57C to +105C (Extended storage time above +40C is not recommended due to reduction in service life)

  • Humidity

    6,500 hours at 81% rh at +25C and salt spray per IEC 60068-2-11Ka

  • Sand/dust

    Mil-Std810

  • Icing

    Heater will defrost 2 mm of ice within 15 minutes at -30C and wind speed of 100 km/h

  • Encapsulation

    Hermetically sealed enclosure

  • Shock

    530g shocks in 2 directions on 3 axes (30 total) 11 mSec duration per IEC 60068-2-27Ea

  • Vibration

    IEC 60068-2-64

  • Start Up Time

    Immediate

  • Pixel Count

    320 x 240

  • Dimensions

    2.3 x 2.8 x 3.3" (5.8 x 7.1 x 8.3 cm)

  • Weight

    0.8 lbs (0.36 kg)

About FLIR PathFindIR LE Aftermarket

The FLIR PathFindIR LE is a compact thermal imager that easily mounts behind grills or on light bars. The imager allows users to see clearly in complete darkness and enhances driver's vision. The FLIR PathFindIR LE features high impact optics with a rugged design, assuring operability in the toughest environments, a 19mm lens with a 36deg. field of view allows for greater ground coverage and a small form factor allows for the integration into small spaces.

FLIR PathFindIR LE Aftermarket Features

  • See clearly in total darkness: Suspects can't hide their heat
  • Driver's Vision Enhancement: See four times beyond the range of headlights; officers get more time to react to road hazards
  • Surveillance: Monitor the activity of suspects without their knowledge, in total darkness, from a distance
  • See through smoke: FLIR's thermal imagers see right through smoke, allowing officers to respond safely in brush fire or tunnel fire situations
  • Pursuit: FLIR's thermal imagers can help officers see more of the road in pursuit situations and can aid in seeing objects thrown from vehicles
  • Wide Angle Lens: FLIR PathFindIR LE provides the officer with a 36deg. field-of-view lens, which provides excellent roadside awareness, even at long range
  • Easy Installation: Installation is easy; a simple power in and video out connection to the display or use any monitor with the auxiliary out
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • See clearly in total darkness
  • Driver's Vision Enhancement
  • Surveillance: Monitor the activity of suspects without their knowledge, in total darkness, from a distance
  • See through smoke
  • Wide Angle Lens
  • Easy Installation

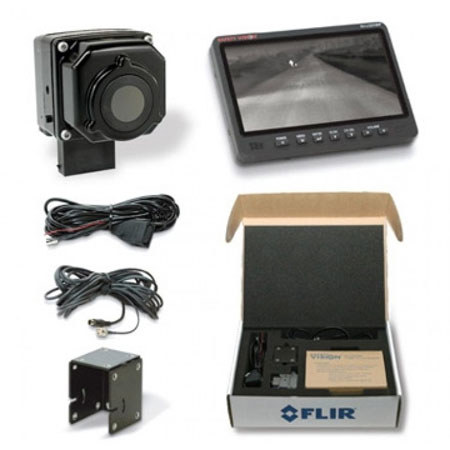

What's in the box:

  • FLIR PathFindIRLE 30 Hz Camera (NTSC 334-0001-00)
  • PathFindIRLE 20 Foot Wiring Harness Power/Video Only (308-0121-00)
  • 7 LCD with Bracket & Sun Shield (4105734)
  • LCD Cable BNC to S-Video 29 Foot (4105735)
  • PathFindIRLE Universal Mounting Bracket (261-1470-00)
  • PathFindIRLE Manual / Users Guide (334-0001-00-10)
  • PathFindIRLE Installation DVD
  • FLIR Warranty
