FLIR PathFindIR LE Aftermarket Kit

SKU: FLIPFIRKIT MFR: 421-0029-00
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$799.95 $32 per week
Free Expedited Shipping
Add to Wishlist

About the FLIR PathFindIR LE Aftermarket

The FLIR PathFindIR LE Aftermarket Kit (No Camera) provides with everything you need to maximize the use the FLIR Systems Inc. PathFindIR LE. The PathFindIR LE Aftermarket Kit allows you to mount your thermal imager along with a dash mounted LCD monitor to see what the PathFindIR sees while driving or stopped and surveying. This kit is the perfect thermal imaging accessory to set up your PathFindIR Thermal Camera for vehicle use.

A 6 meter long cable is available for routing the PathFindIR power and video interface into a passenger compartment. On one side the cable connects to the PathFindIR. On the other end it has 2 wires that can be terminated, as required by the user, for hooking into the vehicle power bus and a video cable that is terminated with a BNC connector. It can be adapted to the video input connections on most standard monitors.

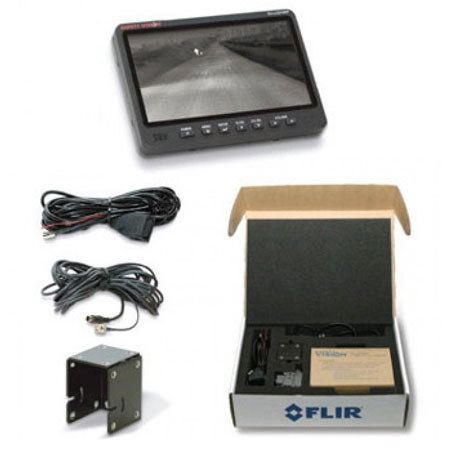

FLIR PathFindIR LE Aftermarket Includes

  • FLIR PathFindIR LE 20 Foot Wiring Harness Power/Video Only (308-0121-00)
  • 7" LCD with Bracket, Sun Shield (4105734)
  • LCD Cable BNC to S-Video 29 Foot (4105735)
  • PathFindIR LE Universal Mounting Bracket (261-1470-00)
  • PathFindIR LE Manual / Users Guide (334-0001-00-10)
  • FLIR Warranty

FLIR PathFindIR LE Aftermarket Features

  • The FLIR PathFindIR LE Kit is the ideal thermal camera for law enforcement officers who need a low-cost, easy-to-integrate, high-resolution, sealed thermal imager
  • Proven Reliability: With over 50,000 units fielded, the FLIR PathFindIR LE Kit is the most reliable and affordable thermal imager available for Law Enforcement vehicles of all types
  • 320x240 Thermal Imager: The FLIR PathFindIR LE Kit allows you to see clearly in total darkness, further than with headlamps alone, through light fog, smoke and dust with the same technology used by the U.S. Government
  • Auto Image Optimization: FLIR PathFindIR LE Kit Advanced image processing provides crisp clear images of the scene in front of a law enforcement officer
  • Automatic Window Heater: FLIR PathFindIR LE Kit Provides optimum performance in cold weather
  • Thermal Infrared: FLIR PatFfindIR LE Kit Passive technology works day and night and is unaffected by ambient light sources like oncoming headlamps
  • Standard video output: The FLIR PatFfindIR LE Kit works with all common monitor types
  • Compact size: Easy, covert installation in a variety of locations
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

FLIR PathFindIR LE Aftermarket Specifications

Sensor Type 320 x 240 Uncooled Microbolometer
Field-of-View 36deg. H x 27deg. V
Spectral Band 8-14 microns (LWIR) um
Power Requirements 9 VDC - 16 VDC
Power Dissipation < 2W
With Heater On < 5W
Operating Temperature -40deg.C to 80deg.C
Weather Resistance Hermetically Sealed, Automotive Certified connector
Window High Impact Resistance with Built-in Automatic Heating Element
