FLIR QD65 65mm Quick Disconnect Lens for the BHS-Series Thermal Imaging Binocular.

SKU: FLIQD65

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR QD65 Specifications

  • FOV (320 x 240)

    BTS-X Pro: 7deg. x 5deg.
    BTS-XR Pro: 10deg. x 8deg.

  • E-Zoom FOV (Resolution): 2x

    BTS-X Pro: 3.5deg. x 2.5deg. (160 x 120)
    BTS-XR Pro: 5deg. x 4deg. (320 x 240)

  • E-Zoom FOV (Resolution): 4x

    BTS-X Pro: No
    BTS-XR Pro: 2.5deg. x 2deg. (160 x 120)

  • Detect Man (1.8 m x 0.5 m)

    BTS-X Pro: 1,450 m
    BTS-XR Pro: 1,900 m

  • Recognize Man

    BTS-X Pro: 370 m
    BTS-XR Pro: 490 m

  • Size (H x D)

    3.3" x 3.1" / 83.82 x 78.74 mm

About FLIR QD65

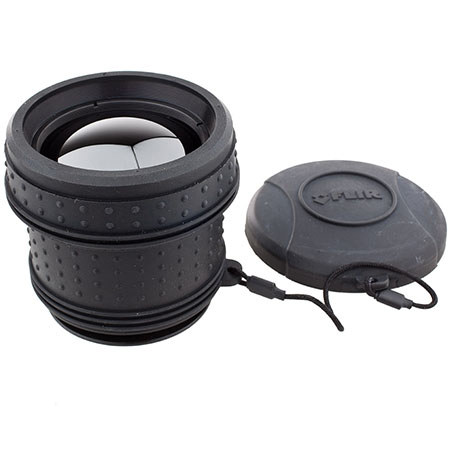

The FLIR QD65 65 mm Quick Disconnect Lens is a standard focal length quick-disconnect lens designed for the BHS-series thermal binoculars. When attached to the BHS-XR, the field of view is 10 degrees x 8 degrees and 7 degrees x 5 degrees on the BHS-X. Raised and grooved rubber sleeves provide excellent grip for fast, accurate focusing. The included low-profile lens caps protect the lens from moisture and damage.

FLIR QD65 Features

  • Customize thermal capability for mission-specific tasks with the BHS-QD65 lens for extended range
  • High-performance lenses are rapidly attached via integral quick disconnect mount
  • Raised and grooved rubber sleeves and
  • Captive low-profile lens caps protect your lens investment as well as providing excellent grip/sensitivity for fast focusing
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • Customize thermal capability for mission-specific tasks
  • High-performance lenses are rapidly attached via integral quick disconnect mount
  • Raised & grooved rubber sleeves

What's in the box:

  • FLIR QD65 65mm Quick Disconnect Lens
  • Lens Cap
  • Lens Cover
  • Lens Cloth
  • FLIR Warranty
