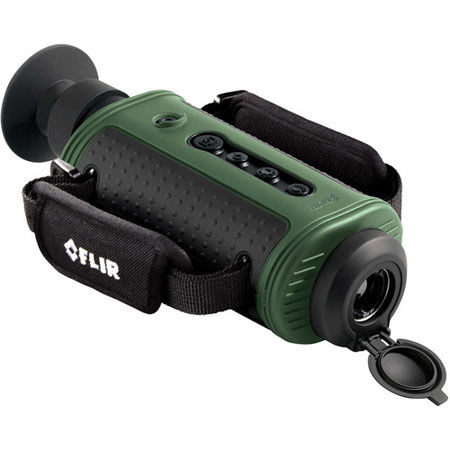

FLIR Scout TS24 Handheld Thermal Night Vision Camera, 240x180 Resolution, 19mm Lens, PAL 8.3Hz Video

See all FLIR items
SKU: FLITS2483 MFR: 431-0003-06-00S
Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Take Note

Because these cameras operate at 9hz, they are controlled for export under US Department of Commerce, Export Administration Regulations. They may be exported, No License Required, to all countries EXCEPT those in Group E:1 unless otherwise prohibited.

More Buying Options

FLIR TS24: Picture 1 regular $3,369.00

About FLIR TS24

When you want a thermal camera that's easy to pack, easy to use and delivers a high-quality thermal image that you can rely on, the FLIR Scout TS24 Handheld Thermal Night Vision Camera is your ideal choice. Lens and thermal detector options allow you to customize the right camera for you.

The Scout, powered by the same advanced technology used by military and law enforcement, is a powerful personal thermal imaging camera affordable enough to give every outdoorsman the unsurpassed practical advantages of full-resolution thermal imaging night vision.

Small, rugged and ergonomic, Scout provides direct push-button access to all of its controls and weighs less than a pound and a half. Built around FLIR's bleeding-edge thermal night vision technology, Scout uses a thermal camera that creates video images from heat, not light and displays this video on its built-in LCD eyepiece so you can experience the world as it happens, day or night.

FLIR TS24 Features

  • Easy Operation: Engage power, recording, zooming, brightness and polarity at the push of a button
  • Shuttered Eyepiece: Seals light in the viewfinder so you won't alert animals or other targets to your location
  • SD Card Slot: Store still images and video on a removable SD card
  • USB2 Connection: Permits rapid transfer of still images and video to a PC
  • Rugged All-Weather Design: Built to withstand the demands of day-in, day-out rugged outdoor use
  • Ready to Go When You Are: Battery operation with field-swappable AA common batteries plus Power In/Charging, RCA video out via standard Hot Shoe attachment
  • Three Selectable Palettes: White Hot, Black Hot and the powerful InstAlert detection palettes provide excellent image detail in different environments
  • Power Button: The Scout camera has 3 power modes: On, Off and Standby
  • Capture Button: When enabled, takes snapshots (press and release) or video clips (press and hold 3 seconds to start video recording). The files are stored on the integrated SD card
  • Display Brightness: Toggle through five brightness settings
  • White/Black Hot/InstAlert: In White Hot, hotter items appear as white or light gray. In the Black Hot, hotter items appear as black or dark gray. In InstAlert, hot items in a scene are outlined in red
  • Diopter Controls: The diopter adjustment knob allows a ±2 diopter range
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

FLIR TS24 Specifications

19 mm Fixed Focus
240 x 180
Field of View (H x V)
24deg. x 18deg./12deg. x 9deg.
White Hot, Black Hot, InstAlert
Video Output (9 Hz refresh rate)
PAL composite video
2 seconds
4 AA NiMH Batteries (included) or Li-Ion or Alkaline AA
Detect Man-Sized Target
19 mm lens: 350 yards
2x extender: 600 yards
Operating Temperature
32deg.F to 122deg.F (0deg.C to 50deg.C)
Dimensions (LxWxH)
9.36x3.33x2.62" / 23.7x8.45x6.65cm
1.59lbs / 0.72kg
