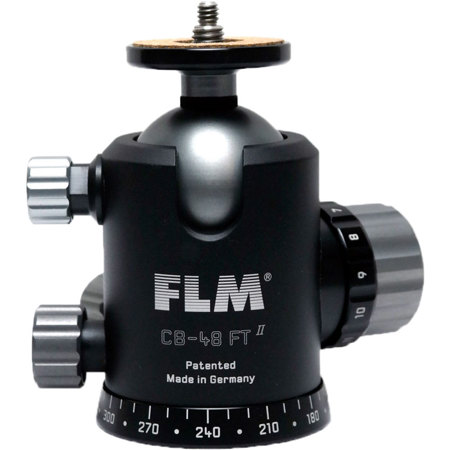

The FLM CB-48 FTR 1.8" Ball Head with Friction / Tilt has 3/8" bottom thread to attach to tripods or monopods and 1/4" & 3/8" connection thread for camera attachment or other specialist accessory. The FT (Friction / Tilt) series is based on the characteristics of the F series. The additional patented 'Neigen / Tilt' knob function isolates the Center ball so it can only be used in one vertical plane perpendicular to the Tilt knob.
The FTR is also fitted with the Rastasystem PRS Pan click-lock knob for panorama shots. This allows you to obtain a perceptible and audible click-lock positioning every 15deg. in a horizontal plane for the shots being taken. It can be used with the FLM CP30 series tripods.
|Ball diameter||48 mm / 1.8"|
|Camera socket||1/4"/ 0.64cm & 3/8" / 0.95cm|
|Bottom thread||3/8" / 0.95cm|
|Max Load Capacity||45 kg / 99 lbs|
|Dimensions (DiaxH)||65x99mm / 2.5x3.89"|
|Weight||592g / 20.8 oz|
