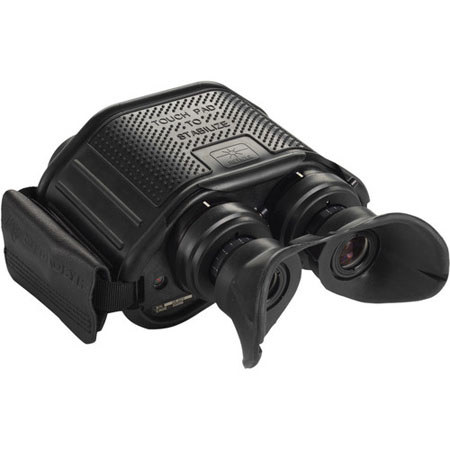

Fraser Optics 10x40 Water Proof Roof Prism Stedi-Eye Aviator Stabilized Binocular LE Edition with Hard Shell Case, 4.6deg. Angle of View

SKU: FOSEAC MFR: 01065-2000-10X-CL
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$7,452.20 List Price

Our Price

$6,636.26
Free Expedited Shipping
Qty:
Add to Wishlist

About the Fraser Optics 10x40 Roof Prism

The Fraser Optics 10x40 Stedi-Eye Aviator Stabilized Binocular is an advanced electro-optical device designed for long-range observations from unstable viewing platforms on the ground, in the air, or at sea. The Aviator uses gyro stabilization technology to correct up to 98% of image motion caused by hand tremor and platform motion. This technology is especially useful for law enforcement personnel and first responders observing from a marine vessel, moving vehicle, or helicopter.

When in high-speed pursuit or conducting aerial and marine surveillance, the Mariner's stabilized viewing platform can be the difference between mission success and failure. As the optical housing pitches and/or rolls, the gyro mechanism compensates for the motion by mechanically orienting the prisms in the opposite direction. This process of stabilization occurs in real time and corrects motion on the pitch and roll axes within 8 degrees. The weatherproof/buoyant housing, fully multicoated optics and supplemental external power supply make the Aviator a full-featured binocular for first responders and tactical professionals.

Fraser Optics 10x40 Roof Prism Includes

  • Fraser Optics 10x40 Stedi-Eye Aviator Stabilized Binocular
  • Handstrap
  • Neck Strap
  • 2 x AA Batteries
  • Haze Filter
  • Face Shield with Attachment Kit
  • Polarizing Filter with Adapter
  • Custom Hard Shell Case
  • External Power Cord
  • Advanced Lens Cleaning Kit
  • Fraser Optics Warranty

Fraser Optics 10x40 Roof Prism Features

  • Gyro Stabilization: Gyro Stabilization technology uses angular momentum generated by a gyro to compensate for movement of the optical housing. When the optical housing moves in one direction, the gyro mechanism moves in the opposite direction and reorients prisms to stabilize the viewed image
  • Performance: The 10x magnification is well suited for long-range viewing in the air, at sea and on land. Gyro stabilization ensures that transmitted images will remain steady despite the hand tremor commonly visible through high magnification optics
  • Anti-Reflective Coated Optics: Fraser-Volpe's proprietary compound optical coatings minimize unwanted reflections and maximize light transmission through the optical channels, resulting in enhanced image brightness and contrast
  • Law Enforcement Edition: This configuration of the Aviator is only available to law enforcement agencies

Fraser Optics 10x40 Roof Prism Specifications

Prism Type Roof
Magnification 10.0x
Objective Lens Diameter 40 mm
Angle of View 4.6deg. (actual)
Field-of-View 240.96' at 1000 yd / 80 m at 1000 m
Exit Pupil Diameter 3 mm
Interpupillary Adjustment 60 - 75 mm / 2.36 - 2.95"
Dioptric Correction ±5
Stabilization Freedom ±8deg.
Resolution 4.3 arc seconds (USAF-1951)
Scan Rate 8deg./ second
Focus Type Individual
Dimensions 8.25x7.5x3.5" / 20.95x19.05x8.89 cm
Weight 71.96 oz / 2040.03 g
