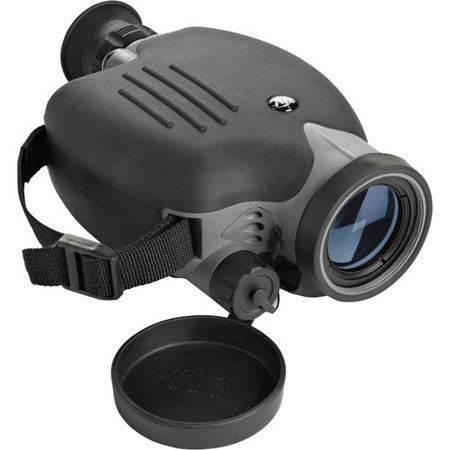

Fraser Optics 14x40 Stedi-Eye Monolite Stabilized LE Monocular with Hard Case, 3mm Exit Pupil, Waterproof/Fogproof/Shockproof

See all Fraser Optics items
SKU: FOSEMC MFR: 07002-400-1-CL

About Fraser Optics 14x40 Monocular

The Fraser Optics 14x40 Stedi-Eye Monolite Stabilized LE Monocular with Hard Case is an advanced electro-optical device designed for long-range observations from an unstable viewing platform. The Monolite uses gyro stabilization technology to correct up to 98% of image motion caused by hand tremor and platform motion. This is especially useful for law enforcement personnel and first responders observing from a marine vessel, moving vehicle, or helicopter.

When the optical housing pitches and/or rolls, the gyro mechanism compensates for the motion by mechanically orienting the prisms in opposite direction. This process of stabilization occurs in real time and corrects motion on the pitch and roll axes within 8 degrees. The weatherproof housing, fully multicoated optics and adjustable diopter make the Monolite a full-featured monocular for first responders and tactical professionals.

Fraser Optics 14x40 Monocular Features

  • Advanced gyro-stabilization system
  • Up to 98% reduction of image motion
  • Fully multi-coated MgFI optics for enhanced light transmission
  • Wide field of view
  • Scan rate (8deg./sec)
  • 100% sealed, buoyant, submersible and waterproof
  • Shockproof and ruggedized for extreme conditions
  • No-slip neoprene cover for added comfort and grip
  • Built-in regulator for external power; continuous operation for 8 hours on one CR-123 battery

Fraser Optics 14x40 Monocular Specifications

Magnification
14.0x
Objective Lens Diameter
40mm
Exit Pupil
3mm
Eye Relief
14mm
Angle of View
4.3deg.
Field of View
229' (70m) at 1000 yd
Resolution
4.3 arc seconds
Stabilization Freedom
+/- 8deg.
Diopter Correction
+/- 4
Scan Rate
8deg. per second
Power Supply
(1) CR123 Battery
External DC
Runtime
Up to 8 hours of continuous operation at room temperature
Dimensions
8.20x5.10x2.70" (20.82x12.95x6.85cm)
Weight
32oz (907.18g)
